All categories

4 years ago

A uniform plank of length 4.4m and weight 228N

Physics

1 answer:

lina2011 [118]4 years ago

4 0

Answer:0.558 m

Explanation:

Given

weight of Plank=228 N

weight of man=449 N

Length of plank=4.4 m

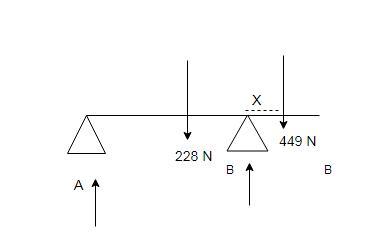

let $R_a$ and $R_b$ be the reactions at A & B

and Reaction at A becomes zero when plank is about to rotate at B

Taking moment about B at that instant so that plank is just about to rotate.

$228\times 1.1=449\times x$

Where x is the maximum distance that man can walk

x=0.558 m

You might be interested in

Can someone help me please

makvit [3.9K]

Answer:

Time, I believe. Pretty sure it's time lol

3 0

3 years ago

A big wheel at a theme park has a diameter of 14m and people on the ride complete one revolution in 24s. calculate the distance

just olya [345]

Explanation:

We'll call the radius r and the diameter d:

We also assume that the riders are at a distance r = d/2 = 7m from the center of the wheel.

The period of the wheel is 24s. The tangent velocity of the wheel (and the riders) will be: (2pi/T)*r = 0.8 m/s (circa).

It means that in 3 minutes (180 seconds) they'll run 0.8 m/s * 180s = 144m.

Hopefully I understood the question. If yes, that's the answer.

7 0

2 years ago

A 31.7 kg kid initially at rest slides down a frictionless water slide at 53.2 degrees, how fast is she moving in 3.45 s later?

Murrr4er [49]

Answer:

34.55 m/s

Explanation:

8 0

3 years ago

1. What are the units of : pressure, force , area

White raven [17]

Pressure- Pascal( $N/m^2$ )

Force- Newton

Area- $m^2$ (Square metre)

<u>Explanation:</u>

Pressure is force continuous force applied to an object. The applied force is always perpendicular to the surface of the object.
Force is a push or pulls on an object by an external body where it changes its state from rest to motion.
Force is said to have both magnitude and direction.
Area is the portion that shows the scale of a 2D form or configuration in the level. The covering area is its analog on the 2D surface of a 3D object.

6 0

3 years ago

A negatively charged particle is moving to the right, directly above a wire have a current flowing to the right. In which direct

Varvara68 [4.7K]

Answer:

C) upward

Explanation:

The problem can be solved by using the right-hand rule.

First of all, we notice at the location of the negatively charged particle (above the wire), the magnetic field produced by the wire points out of the page (because the current is to the right, so by using the right hand, putting the thumb to the right (as the current) and wrapping the other fingers around it, we see that the direction of the field above the wire is out of the page).

Now we can apply the right hand rule to the charged particle:

- index finger: velocity of the particle, to the right

- middle finger: direction of the magnetic field, out of the page

- thumb: direction of the force, downward --> however, the charge is negative, so we must reverse the direction --> upward

Therefore, the direction of the magnetic force is upward.

3 0
