Question

You have 6 resistors in a circuit. The voltage on each is given. Use MATLAB to calculate the total power dissipated by the resistors. P = V2/R . You can use a loop or a vector solution. Watch units. Display the total power with units with proper significant figures. (Just write the code only.) Calculate the power dissipated in each resistor then add the individual power values to get the total. Show your code and the Total Power answer with units.
Resistance (kΩ) Voltage (V)

2.2 3.5

0.80 1.7

1.3 2.8

0.71 1.9

0.93 1.3

1.6 2.6

Answer 1

Answer:

Explanation:

Given data,

R(kΩ)..............V(V)

2200...............3.5

800..................1.7

1300.............….2.8

710...................1.9

930.................1.3

1600....…...…..2.6

The power will be in W unit

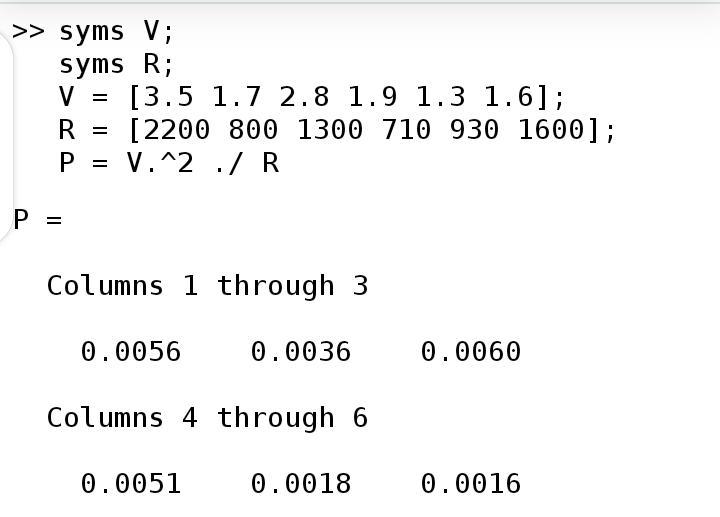

Matlab code.

syms V;

syms R;

V = [3.5 1.7 2.8 1.9 1.3 1.6];

R = [2200 800 1300 710 930 1600];

P = V.^2 ./ R

Ptot = sum(P)

Or for vertical column

Matlab code.

syms V;

syms R;

V = [3.5; 1.7; 2.8; 1.9; 1.3; 1.6];

R = [2200; 800; 1300; 710; 930; 1600];

P = V.^2 ./ R

Ptot = sum(P)

Answer 2

Answer:










Explanation:



0.80 1.7’




I hope this helps! :)
