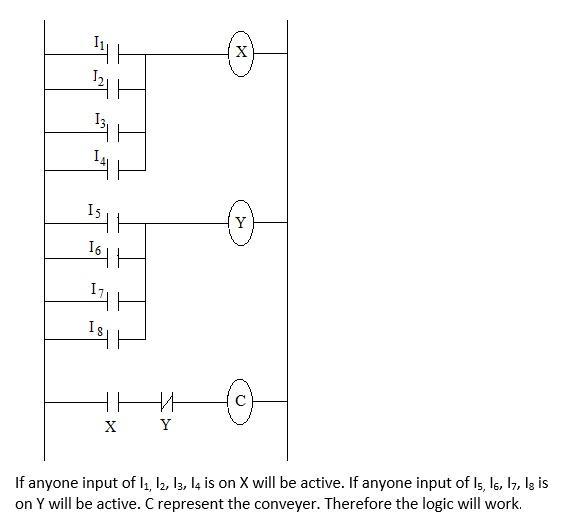

CONVEYOR PROGRAM: A conveyor will run when any one of four inputs are on. It will stop when any one of four other inputs are on.

Develop a PLC program that will simulate this operation. Enter the simulated program into the PLC and prove its operation

1 answer:

Nutka1998 [239]3 years ago

7 0

Answer:

See the attached picture for detailed answer.

Explanation:

See the attached picture for explanation.

You might be interested in

Consider the problem of oxygen transfer from the interior lung cavity, across the lung tissue, to the network of blood vessels o

aalyn [17]

Answer:

See attached images

8 0

4 years ago

The water behind Hoover Dam in Nevada is 221 m higher than the Colorado River below it. At what rate must water pass through the

dexar [7]

Answer:

23.06262m^3/s

Explanation:

The volume flow rate of the water is determined from the needed power output and the elevation difference:

Where, height (h) =221m, power(w)=50MW=50*10^6w

Density of water (ρ)=1000kg/m^3

Efficiency of turbine(η)=100%=1

V=W/ρηgh

=50*10^6m^3/(1)*(1000)*(9.81)*(221)s=23.06262m^3/s

3 0

3 years ago

A closed, 0.4-m-diameter cylindrical tank is completely filled with oil (SG 0.9)and rotates about its vertical longitudinal axis

egoroff_w [7]

Answer: $p_{B} - p_{A}$ = 28800 Pa or 28.8 kPa

Explanation: To determine the pressure of a liquid in a rotating tank,it is used:

p = $\frac{p_{fluid}.w^{2}.r^{2} }{2}$ - γfluid . z + c

where:

$p_{fluid}$ is the liquid's density

w is the angular velocity

r is the radius

γfluid.z is the pressure variation due to centrifugal force.

For this question, the difference between a point on the circumference and a point on the axis will be:

$p_{B} - p_{A}$ = $\frac{p_{fluid}.w^{2}.r_{B} ^{2} }{2}$ - γfluid. $z_{B}$ - ( $\frac{p_{fluid}.w^{2}.r_{A} ^{2} }{2}$ - γfluid. $z_{A}$ )

$p_{B} - p_{A}$ = $\frac{p_{fluid}.w^{2}}{2} (r_B^{2} - r_A^{2} )$ - γfluid( $z_{B}$ - $z_{A}$ )

Since there is no variation in the z-axis, z = 0 and that the density of oil is 0.9.10³kg/m³:

$p_{B} - p_{A}$ = $\frac{p_{fluid}.w^{2}}{2} (r_B^{2} - r_A^{2} )$

$p_{B} - p_{A} = \frac{0.9.10^3.40^2}{2}(0.2^2 - 0)$

$p_{B} - p_{A}$ = 28800

The difference in pressure between two points, one on the circumference and the other on the axis is $p_{B} - p_{A}$ = 28800 Pa or 28.8 kPa

8 0

3 years ago

Which of the following statements are true of computer hardware engineers?

9966 [12]

Answer:

you never mentioned the options

3 0

4 years ago

A 2m high sandy fill material was placed loosely at a relative density of 47%. Laboratory studies indicated that the maximum and

Llana [10]

Answer:

2

Explanation:To find the solution we must first make the transformations to international units,

In this way:

Inches of length (L) to feet =

So we can identify the area by hour:

Once the area is identified, we now identify the number of passes required,

Passes required = Area x number of passes

We transform speed to international units

So we can identify the covered area

where

m = drum widht

p = efficiency

In this way we obtain the number of rollers given by:

No. of Rollers = Passes required / covered area

No of rollers = 48136/40269

No of rollers = 1.19, that is, 2

Read more on Brainly.com - brainly.com/question/13686900#readmore.
