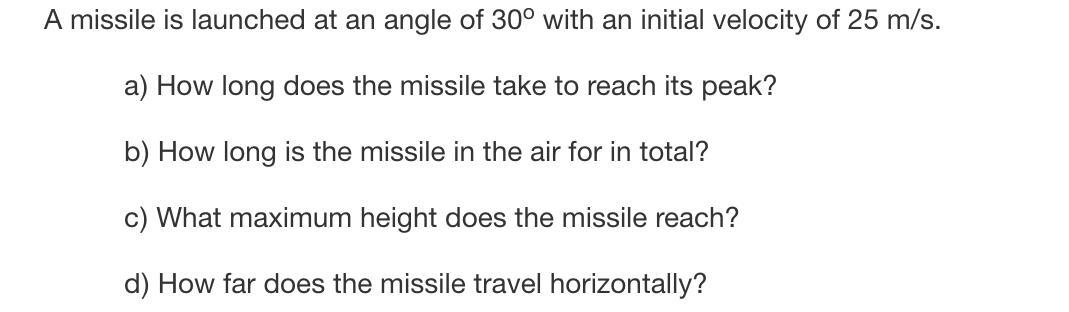

Show all work and answer all 4 parts. Projectile motion. 20 points. Thank you.

Physics

1 answer:

Mashutka [201]3 years ago

5 0

Answer:

i took g = 9.8m/s

A. 1.16secs

B. 2.32secs

C. 6.57m

D. 57.91m

Explanation:

A. How long does the Missile take to reach ot peak?

Time taken (t) =( U²Sin (angle) )/g

u = initial velocity = 25m/s

angle given = 30°

g = acceleration due to gravity = 9.8m/s²

t = U² x Sin (angle) / g

t = 25² x Sin(30)/9.8

t = 1.61secs

B. How long is the missile in the air in total?

T = 2t

T = 2 x 1.61 = 2.32 secs

C. what maximum Height does the missile reach?

Maximum height = U²Sin²(angle) / 2g
M.H =25² x Sin(30)² / 2 x 9.8
M.H=6.57m
Maximum height= 6.57m

D. How far does the missile travel Horizontally?

Range = U²2Sin(angle)/g
Range = 25² x 2 x Sin(30) / 9.8
Range = 57.91m

You might be interested in

What is the energy of a single photon of visible light with a wavelength of 500.0 nm? 1 nm=10^−9 m

Dmitrij [34]

Answer:

3.97×10^−19 J

From the planks equation

E=hv

V= c/ wave length

V= 3×10^8/500×10^-9

=6×10^14

E= hv

6.63×10^-34×6×10^14

= 3.97×10^−19 J

Explanation:

8 0

2 years ago

There are four charges, each with a magnitude of 2.06 µC. Two are positive and two are negative. The charges are fixed to the co

mars1129 [50]

Answer:

0.208 N

Explanation:

We are given that

$q_1=q_2=2.06\mu C=2.06\times 10^{-6} C$

$q_3=q_4=-2.06\mu C=-2.06\times 10^{-6} C$

Distance,d=0.41 m

The magnitude of the net electrostatic force experienced by any charge at point 4

Net force, $F_{net}=\sqrt{F^2_1+F^2_3+2F_1F_3cos90^{\circ}}-F_2$

$F_1=F_3=F$

$F_{net}=\sqrt{F^2+F^2+0}-F_2$

$F_{net}=\sqrt 2F-F_2$

$F=\frac{kq^2}{d^2}$

$F_2=\frac{Kq^2}{2d^2}$

$F_{net}=\frac{\sqrt 2kq^2}{d^2}-\frac{kq^2}{2d^2}=\frac{kq^2}{d^2}(\sqrt 2-\frac{1}{2})$

Where $k=9\times 10^9$

$F_{net}=\frac{9\times 10^9\times (2.06\times 10^{-6})^2}{(0.41)^2}(\sqrt 2-\frac{1}{2})$

$F_{net}=0.208 N$

3 0

3 years ago

You toss a conductive open ring of diameter d = 1.75 cm up in the air. The ring is flipping around a horizontal axis at a rate o

Mama L [17]

Answer:

The maximum emf induced in the ring

= (2.882 × 10⁻⁷) V

Explanation:

According to the law of electromagnetic induction, the emf induced in the ring is given by

E = N BA w sin wt

The maximum emf induced is

E = N BA w

B = 30.5 μT = (30.5 × 10⁻⁶) T

A = (πD²/4)

D = 1.75 cm = 0.0175 m

A = (π×0.0175²/4) = 0.000240625 m²

Nw = 2π × 6.25 = 39.29 rad/s

E = 30.5 × 10⁻⁶ × 0.000240625 × 39.29

E = (2.882 × 10⁻⁷) V

Hope this Helps!!!

8 0

3 years ago

The compressed-air tank ab has a 250-mm outside diameter and an 8-mm wall thickness. it is fitted with a collar by which a 40-kn

valentinak56 [21]

<span>Assume: neglect of the collar dimensions. Ď_h=(P*r)/t=(5*125)/8=78.125 MPa ,Ď_a=Ď_h/2=39 MPa Ď„=(S*Q)/(I*b)=(40*ă€–10ă€—^3*Ď€(ă€–0.125ă€—^2-ă€–0.117ă€—^2 )*121*ă€–10ă€—^(-3))/(Ď€/2 (ă€–0.125ă€—^4-ă€–0.117ă€—^4 )*8*ă€–10ă€—^(-3) )=41.277 MPa @ Point K: Ď_z=(+M*c)/I=(40*0.6*121*ă€–10ă€—^(-3))/(8.914*ă€–10ă€—^(-5) )=32.6 MPa Using Mohr Circle: Ď_max=(Ď_h+Ď_a)/2+âš(Ď„^2+((Ď_h-Ď_a)/2)^2 ) Ď_max=104.2 MPa, Ď„_max=45.62 MPa</span>

3 0

4 years ago

98 POINTS, 5 simple questions!! HELP

lozanna [386]

25,000 Feet = 7620m

PE = mgh where m is mass, g is gravity accel: 9.8 n h is height

= 90 x 9.8 x 7620

= 6720840J

= 6.72MJ

F = ma where m is mass, a is accel = gravity = 9.8

= 90 x 9.8

= 882N

Accel = gravity = 9.8m/s^2

KE = 1/2mv^2 where m is mass n v is vel

if no wind resistance, PE leaving airplane = KE at net

6720840 = 1/2 x 90 x v^2

v^2 = 149352

v = 386.5m/s

3 0
