Derive and sketch the electrical field E of doping concentrations And(x) are given by,

Engineering

1 answer:

grin007 [14]3 years ago

7 0

Answer:

c, 0.5mm

Explanation:

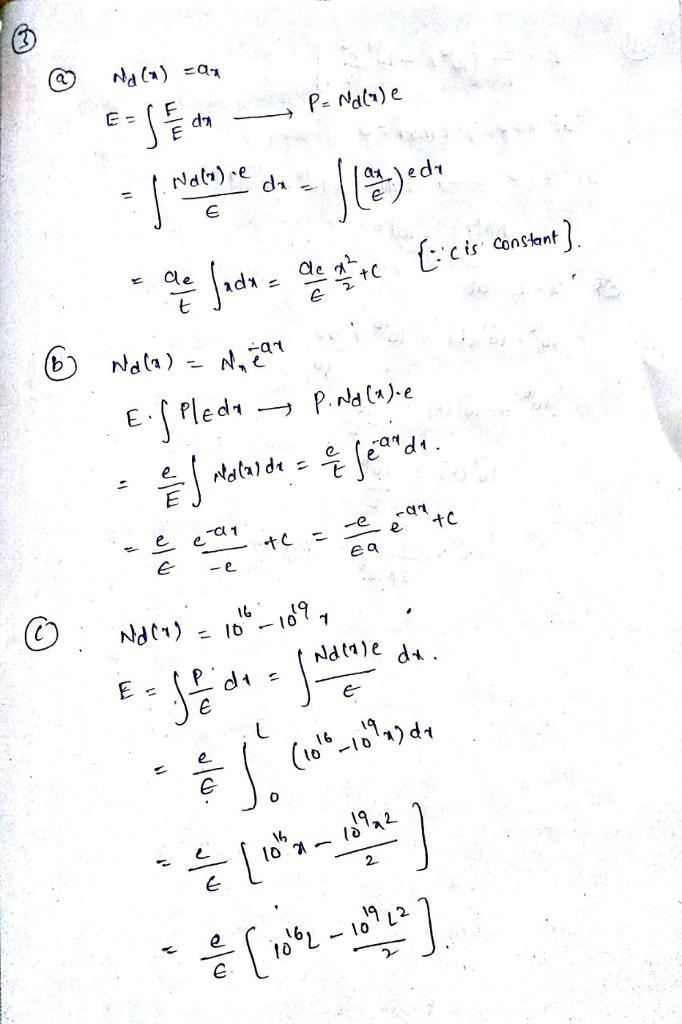

The step by step derivation of formula required for part 'a' and 'b' are seen in the attached Files please kindly go through it.

You will also see steps to how the answer for part 'c' is gotten.

You might be interested in

To assist in completing this question, you may reference the Animated Technique Video - MALDI-TOF Mass Spectroscopy. Complete th

a_sh-v [17]

Complete Question

The complete question is shown on the first uploaded image.

Answer:

The answer is shown on the second uploaded image

Explanation:

The explanation is also shown on the second uploaded image

3 0

4 years ago

A motor car shaft consists of a steel tube 30 mm internal diameter and 4 mm thick. The engine develops 10 kW at 2000 r.p.m. Find

tresset_1 [31]

The maximum shear stress in the tube when the power is transmitted through a 4: 1 gearing is 28.98 MPa.

<h3>What is power?</h3>

Power is the energy transferred per unit time.

Torque is find out by

P = 2πNT/60

10000 = 2π x 2000 x T / 60

T =47.74 N.m

The gear ratio Ne / Ns =4/1

Ns =2000/4 = 500

Ts =Ps x 60/(2π x 500)

Ts =190.96 N.m

Maximum shear stress τ = 16/π x (T / (d₀⁴ - d₁⁴))

τ max =T/J x D/2
where d₁ = 30mm = 0.03 m

d₀ = 30 +(2x 4) = 38mm =0.038 m

Substitute the values into the equation, we get

τ max = 16 x 190.96 x 0.038 /π x (0.038⁴ - 0.03⁴)

τ max = 28.98 MPa.

Thus, the maximum shear stress in the tube is 28.98 MPa.

Learn more about power.

brainly.com/question/13385520

#SPJ1

7 0

2 years ago

At 45° latitude, the gravitational acceleration as a function of elevation z above sea level is given by g = a − bz , where a =

Ahat [919]

Answer:

8861.75 m approximately 8862 m

Explanation:

We need to remember Newton's 2nd Law which says that the force experienced by an object is proportional to his acceleration and that the constant of proportionality between those two vectors correspond to the mass of the object.

$F=ma$ for the weight of an object (which is a force) we have that the acceleration experienced by that object is equal to the gravitational acceleration, obtaining that $W = mg$

For simplicity we work with $g =9.807$ $\frac{m}{s^{2}}$ despiting the effect of the height above sea level. In this problem, we've been asked by the height above sea level that makes the weight of an object 0.30% more lighter.

In accord with the formula $g = a-bz$ the "normal" or "standard" weight of an object is given by $W = mg = ma$ when $z = 0$ , so we need to find the value of $z$ that makes $W = m(a-bz) = 0.997ma$ meaning that the original weight decrease by a 0.30%, so now we operate...

$m(a-bz) = 0.997ma$ now we group like terms on the same sides $ma(1-0.997) = mbz$ we cancel equal tems on both sides and obtain that $z = \frac{a}{b} (0.003) = \frac{9.807 \frac{m}{s^{2} } }{3.32*10^{-6} s^{-2} } (0.003) = 8861.75 m$
