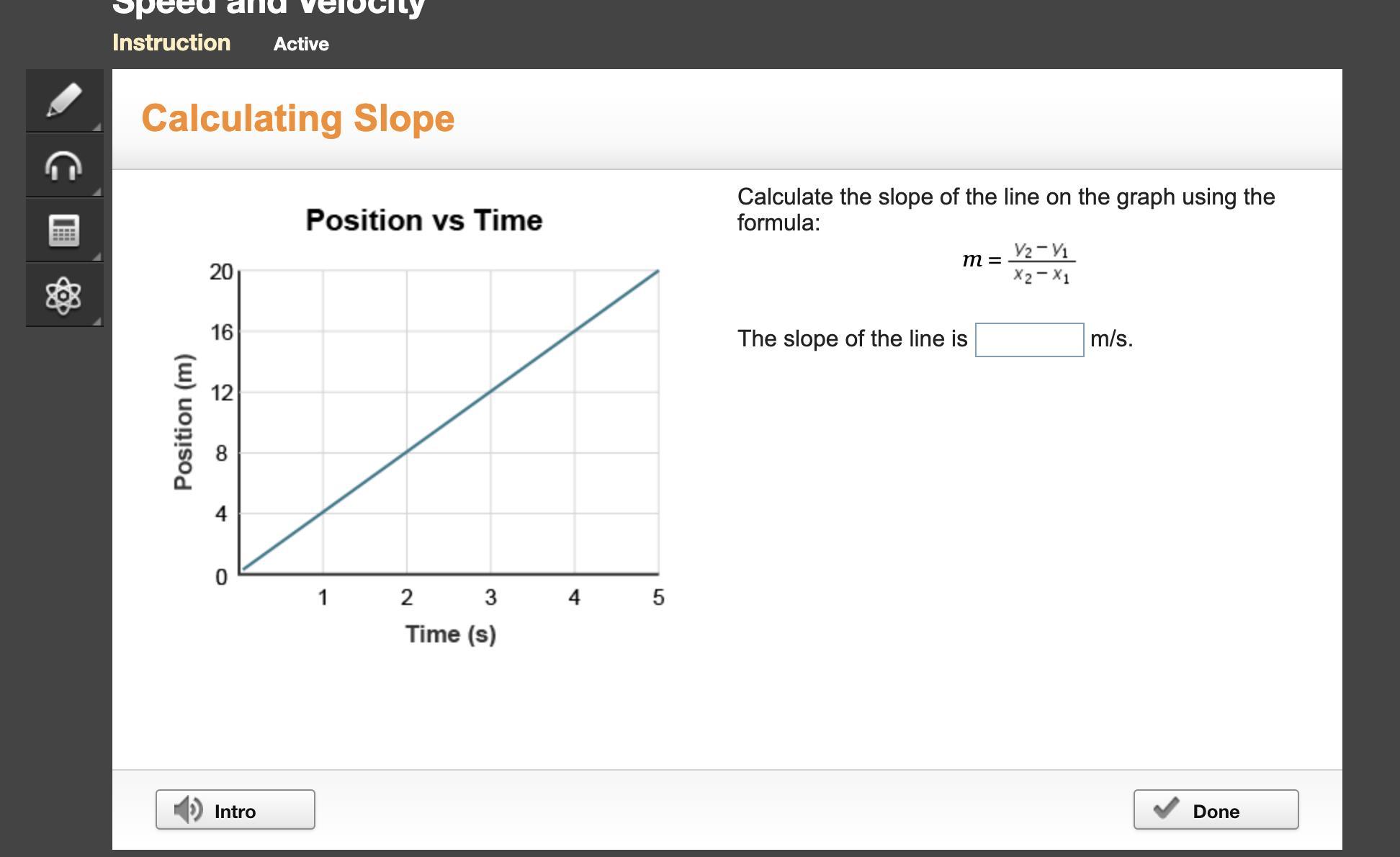

QUICK!!!!!!!!!!!! QUICKKKK!!! HELP!!!! What is the slope of the line????

Physics

1 answer:

Contact [7]4 years ago

4 0

Answer:

4 m/s

Explanation:

If you pick the points (2,8) and (3,12) on the graph, y2-y1 over x2-x1, you get 4 over 1 which equals 4.

You might be interested in

action and reaction are equal in magnitude and opposite direction then why they don't balance each other

Harrizon [31]

Action and reaction are equal in magnitude and opposite direction by they don't balance each other because they don't occur on the same body. Action is involved on one body and reaction is involved on another body.
Hope you understood...

8 0

3 years ago

Your little sister is building a radio from scratch. Plans call for a 500 μH inductor wound on a cardboard tube. She brings you

gayaneshka [121]

Answer:

N = 195 turns

Explanation:

The inductance of the inductor, L = 500 μH = 500 * 10⁻⁶H

The length of the tube, l = 12 cm = 0.12 m

The diameter of the tube, d = 4 cm = 0.04 m

Radius, r = 0.04/2 = 0.02 m

Area of the tube, A = πr² = 0.02²π = 0.0004π m²

$\mu_{0} = 4\pi * 10^{-7}$

The inductance of a solenoid is given by:

$L = \frac{\mu_{0}N^{2} A }{l}$

$500 * 10^{-6} = \frac{4\pi *10^{-7} N^{2} *4\pi *10^{-4} }{0.12}\\500 * 10^{-6} = 0.00000001316N^{2} \\N^{2} = \frac{500 * 10^{-6}}{0.00000001316}\\N^{2} = 37995.44\\N = \sqrt{37995.44} \\N = 194.92 turns$

8 0

3 years ago

Sandy is whirling a ball attached to a string in a horizontal circle over his head. If Sandy doubles the speed of the ball, what

jeka57 [31]

The tension in the string B) It quadruples.

Explanation:

The ball is in uniform circular motion in a horizontal circle, so the tension in the string is providing the centripetal force that keeps the ball in circular motion. So we can write:

$T= m\frac{v^2}{r}$
