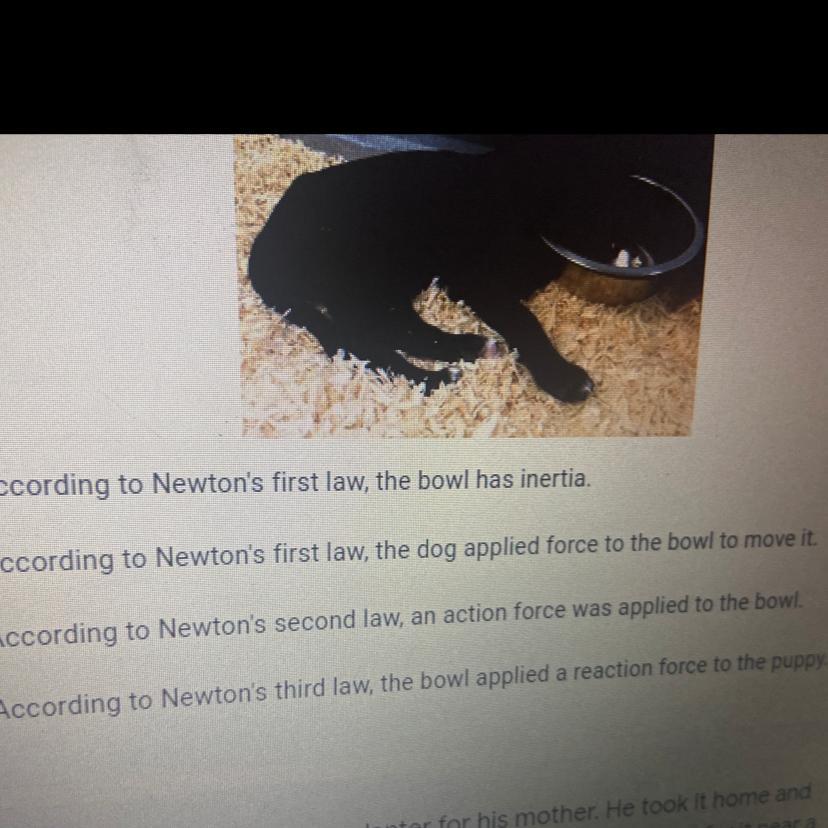

Conner received a new puppy as a birthday gift. The puppy's food bowl

Chemistry

1 answer:

8_murik_8 [283]3 years ago

4 0

Answer:

it would be B

Explanation:

newtons first law states that an object at rest will stay at rest until another object applies force to the object causing it to move

You might be interested in

Gay-lussacs law explanation?

Gemiola [76]

It is practical research of Boyle’s law..

PLS MARK BRAINLIEST
I need one more to rank up!!

5 0

4 years ago

4Hg(OH)2+ H3PO4 —> Hg3(PO4)2 + 5H20

kotegsom [21]

Answer:

Hi. im an online tutor and i ca help you with all your assignments . check out our wesite https://toplivewriters.com

Explanation:

7 0

3 years ago

Sodiun atom, potassium atom, and cesium atoms have the same ?

Tpy6a [65]

Sodium atom , potassium atom and cesium atom have the same group number which is group 1

3 0

3 years ago

Read 2 more answers

Nitrogen (N2) enters a well-insulated diffuser operating at steady state at 0.656 bar, 300 K with a velocity of 282 m/s. The inl

Tasya [4]

Answer:

The exit temperature of the Nitrogen would be 331.4 K.
The area at the exit of the diffuser would be $7*10^{-3} m^2$ .
The rate of entropy production would be 0.

Explanation:

First it is assumed that the diffuser works as a isentropic device. A isentropic device is such that the entropy at the inlet is equal that the entropy T the exit.
It will be used the subscript 1 for the inlet conditions of the nitrogen, and the subscript 2 for the exit conditions of the nitrogen.
It will be called: v the velocity of the nitrogen stream, T the nitrogen temperature, V the volumetric flow of the specific stream, A the area at the inlet or exit of the diffuser and, P the pressure of the nitrogen flow.
It is known that for a fluid flowing, its volumetric flow is obtain as: $V=v*A$ ,
Then for the inlet of the diffuser: $V_1=v_1*A_1=282\frac{m}{s}*4.8*10^{-3}m^2=1.35\frac{m^3}{s}$
For an ideal gas working in an isentropic process, it follows that: $\frac{T_{2} }{T_1}=(\frac{P_2}{P_1})^k$ where each variable is defined according with what was presented in step 2 and 3, and k is the heat values relationship, 1.4 for nitrogen.
Then solving for $T_2$ , the temperature of the nitrogen at the exit conditions: $T_2=T_1(\frac{P_2}{P_1})^k$ then, $T_2=300 K (\frac{0.9 bar}{0.656 bar})^{(\frac{1.4-1}{1.4})}=331.4 K$
Also, for an ideal gas working in an isentropic process, it follows that: $\frac{P_2}{P_1}= (\frac{V_1}{V_2})^k$ , where each variable is defined according with what was presented in step 2 and 3, and k is the heat values relationship, 1.4 for nitrogen.
Then solving for $V_2$ the volumetric flow at the exit of the diffuser: $V_2=V_1*\frac{1}{\sqrt[k]{\frac{P_2}{P_1}}}=\frac{1.35\frac{m^3}{s}}{\sqrt[1.4]{\frac{0.9bar}{0.656bar} }}=1.080\frac{m^3}{s}$ .
Knowing that $V_2=1.080\frac{m^3}{s}$ , it is possible to calculate the area at the exit of the diffuser, using the relationship presented in step 4, and solving for the required parameter: $A_2=\frac{V_2}{v_2}=\frac{1.08\frac{m^3}{s} }{140\frac{m}{s}}=7.71*10^{-3}m^2$ .
To determine the rate of entropy production in the diffuser, it is required to do a second law balance (entropy balance) in the control volume of the device. This balance is: $S_1+S_{gen}-S_2=\Delta S_{system}$ , where: $S_1$ and $S_2$ are the entropy of the stream entering and leaving the control volume respectively, $S_{gen}$ is the rate of entropy production and, $\Delta S_{system}$ is the change of entropy of the system.
If the diffuser is operating at stable state is assumed then $\Delta S_{system}=0$ . Applying the entropy balance and solving the rate of entropy generation: $S_{gen}=S_2-S_1$ .
Finally, it was assume that the process is isentropic, it is: $S_1=S_2$ , then $S_{gen}=0$ .
