What is the Lewis structure of NH3O.
2 answers:
Answer : The Lewis structure of is shown below.
Explanation :
Lewis-dot structure : It shows the bonding between the atoms of a molecule and it also shows the unpaired electrons present in the molecule.
In the Lewis-dot structure the valance electrons are shown by 'dot'.
The given molecule is,
As we know that nitrogen has '5' valence electrons, oxygen has '6' valence electrons and hydrogen has '1' valence electron.
Therefore, the total number of valence electrons in = 5 + 3(1) + 6 = 14
According to Lewis-dot structure, there are 8 number of bonding electrons and 6 number of non-bonding electrons.

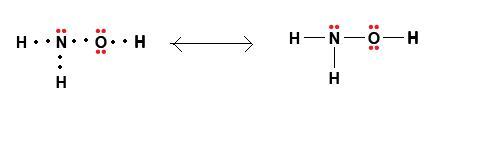

The Lewis-dot structure of is shown below.
You might be interested in
Answer : The volume of produced at standard conditions of temperature and pressure is 0.2422 L
Explanation :
Combined gas law is the combination of Boyle's law, Charles's law and Gay-Lussac's law.
The combined gas equation is,
where,
= initial pressure of
gas = (740-22.4) torr = 717.6 torr
= final pressure of
gas at STP= 760 torr
= initial volume of
gas = 280 mL
= final volume of
gas at STP = ?
= initial temperature of
gas =
= final temperature of
gas =
Now put all the given values in the above equation, we get:
Therefore, the volume of produced at standard conditions of temperature and pressure is 0.2422 L
