Convert the following pairs of voltage and current waveforms to phasor form. Each pair of waveforms corresponds to an unknown el

ement. Determine whether each element is a resistor, a capacitor, or an inductor, and compute the value of the corresponding parameter R, C, or L v(t)= 20 cos(400t + 1.2), i(t)= 4 sin(900t +1.2) v(t)= 9 cos(900t - π/3 ), i(t)= 4 sin(900t + 2/3π) v(t)= 13 cos(250t + π/3 ), i(t)= 7 sin(250t + 5/6π)

1 answer:

Lisa [10]3 years ago

3 0

Answer:

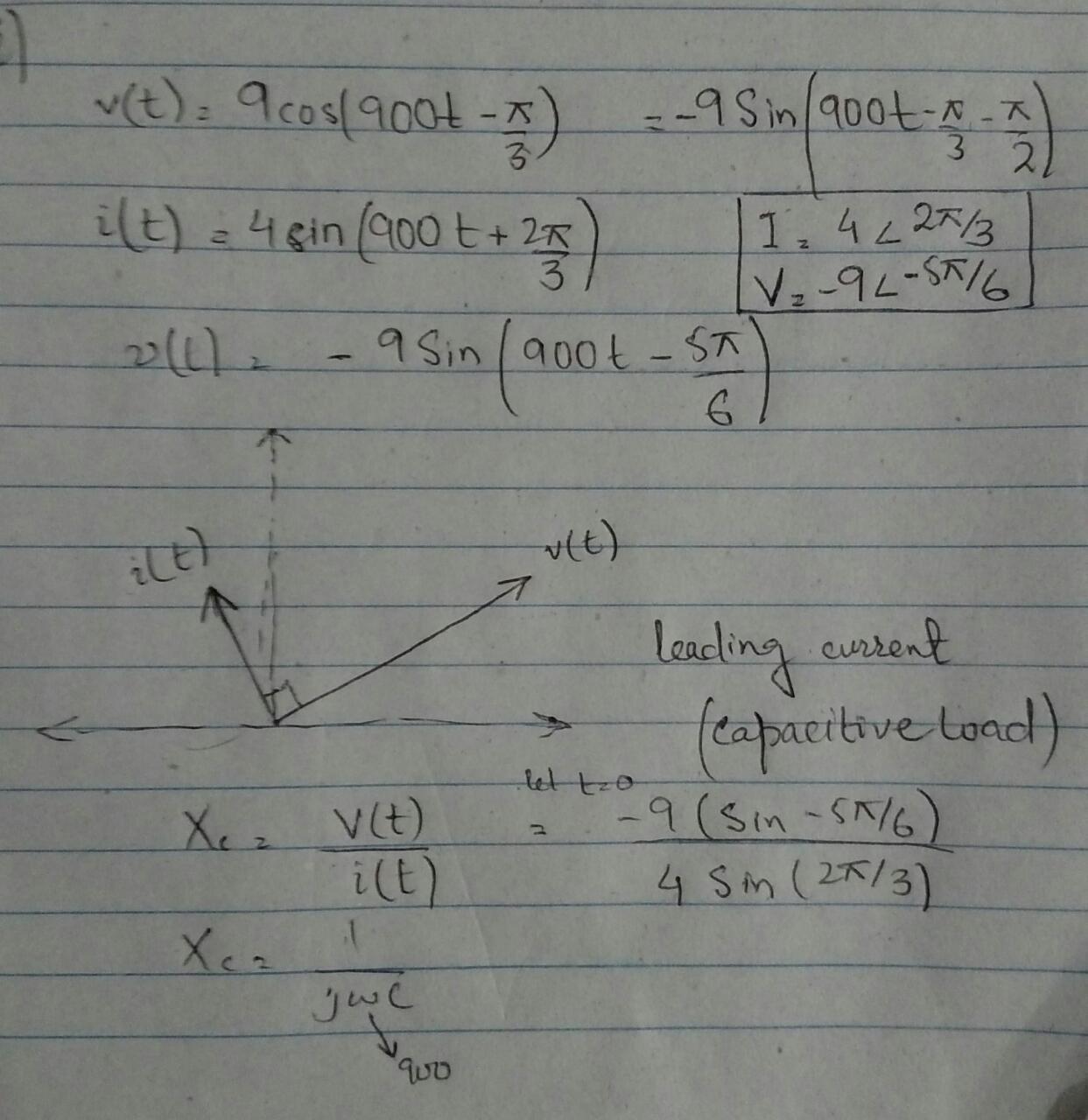

The solutions are attached below:

Explanation:

You might be interested in

To avoid carbon monoxide poisoning, use the heater or air conditioner in a parked car with the windows closed.T/F

liberstina [14]

Answer: false

Explanation:

because when you get in the car the cm will build up

3 0

2 years ago

An ideal Otto cycle has a compression ratio of 8. At the beginning of the compression process, air is at 95 kPa and 278C, and 75

Inessa [10]

Answer:

(a). The value of temperature at the end of heat addition process $T_{3}$ = 2042.56 K

(b). The value of pressure at the end of heat addition process $P_{3}$ = 1555.46 k pa

(c). The thermal efficiency of an Otto cycle $E_{otto}$ = 0.4478

(d). The value of mean effective pressure of the cycle $P_{m}$ = 1506.41 $\frac{k pa}{kg}$

Explanation:

Compression ratio $r_{p}$ = 8

Initial pressure $P_{1}$ = 95 k pa

Initial temperature $T_{1}$ = 278 °c = 551 K

Final pressure $P_{2}$ = 8 × $P_{1}$ = 8 × 95 = 760 k pa

Final temperature $T_{2}$ = $T_{1}$ × $r_{p} ^{\frac{\gamma - 1}{\gamma} }$

Final temperature $T_{2}$ = 551 × $8 ^{\frac{1.4 - 1}{1.4} }$

Final temperature $T_{2}$ = 998 K

Heat transferred at constant volume Q = 750 $\frac{KJ}{kg}$

(a). We know that Heat transferred at constant volume $Q_{S}$ = $m C_{v} ( T_{3} - T_{2} )$

⇒ 1 × 0.718 × ( $T_{3}$ - 998 ) = 750

⇒ $T_{3}$ = 2042.56 K

This is the value of temperature at the end of heat addition process.

Since heat addition is constant volume process. so for that process pressure is directly proportional to the temperature.

⇒ P ∝ T

⇒ $\frac{P_{3} }{P_{2} }$ = $\frac{T_{3} }{T_{2} }$

⇒ $P_{3}$ = $\frac{2042.56}{998}$ × 760

⇒ $P_{3}$ = 1555.46 k pa

This is the value of pressure at the end of heat addition process.

(b). Heat rejected from the cycle $Q_{R} = m C_{v} ( T_{4} - T_{1} )$

For the compression and expansion process,

⇒ $\frac{T_{3} }{T_{2} } = \frac{T_{4} }{T_{1} }$

⇒ $\frac{2042.56}{998} = \frac{T_{4} }{551}$

⇒ $T_{4}$ = 1127.7 K

Heat rejected $Q_{R}$ = 1 × 0.718 × ( 1127.7 - 551)

⇒ $Q_{R}$ = 414.07 $\frac{KJ}{kg}$

Net heat interaction from the cycle $Q_{net}$ = $Q_{S}$ - $Q_{R}$

Put the values of $Q_{S}$ & $Q_{R}$ we get,

⇒ $Q_{net}$ = 750 - 414.07

⇒ $Q_{net}$ = 335.93 $\frac{KJ}{kg}$

We know that for a cyclic process net heat interaction is equal to net work transfer.

⇒ $Q_{net}$ = $W_{net}$

⇒ $W_{net}$ = 335.93 $\frac{KJ}{kg}$

This is the net work output from the cycle.

(c). Thermal efficiency of an Otto cycle is given by

$E_{otto} = 1- \frac{T_{1} }{T_{2} }$

Put the values of $T_{1}$ & $T_{2}$ in the above formula we get,

$E_{otto} = 1- \frac{551 }{998 }$

⇒ $E_{otto}$ = 0.4478

This is the thermal efficiency of an Otto cycle.

(d). Mean effective pressure $P_{m}$ :-

We know that mean effective pressure of the Otto cycle is given by

$P_{m}$ = $\frac{W_{net} }{V_{s} }$ ---------- (1)

where $V_{s}$ is the swept volume.

$V_{s}$ = $V_{1} - V_{2}$ ---------- ( 2 )

From ideal gas equation $P_{1}$ $V_{1}$ = m × R × $T_{1}$

Put all the values in above formula we get,

⇒ 95 × $V_{1}$ = 1 × 0.287 × 551

⇒ $V_{1}$ = 0.6 $m^{3}$

From the same ideal gas equation

$P_{2}$ $V_{2}$ = m × R × $T_{2}$

⇒ 760 × $V_{2}$ = 1 × 0.287 × 998

⇒ $V_{2}$ = 0.377 $m^{3}$

Thus swept volume $V_{s}$ = 0.6 - 0.377

⇒ $V_{s}$ = 0.223 $m^{3}$

Thus from equation 1 the mean effective pressure

⇒ $P_{m}$ = $\frac{335.93}{0.223}$

⇒ $P_{m}$ = 1506.41 $\frac{k pa}{kg}$

This is the value of mean effective pressure of the cycle.

4 0

3 years ago

Why is sitting correctly important

castortr0y [4]

Answer: It helps your back posture and shows respect

Explanation:

5 0

3 years ago

Read 2 more answers

A student lab group is brainstorming the design of an experiment that uses an ammeter (measures current) and different resistors

givi [52]

Answer:

Put a 10.0-ohm resistor in the circuit. Measure the current in the circuit. Replace the 10.0-ohm resistor with a 20.0-ohm resistor. Measure the new current. Continue replacing the resistor with a different resistor of known resistance. Measure the current for each resistor. Record all data.

Explanation:

The only design that has resistance varying with everything else remaining the same is the first design. That would be what you'd want to do if you're exploring the effect of resistance on current.

3 0

3 years ago

The natural material in a borrow pit has a mass unit weight of 110.0 pcf and a water content of 6%, and the specific gravity of

enot [183]

Answer:

A. 288,030.91 cy

B. The amount of water that must be removed from the natural material is 483541.04254 gallons of water

Explanation:

The natural material in the barrow properties are;

The mass unit weight, γ = 110.0 pcf

The water content, w = 6%

The specific gravity of the soil solids, $G_s$ = 2.63

The desired dry unit weight, $\gamma _d$ = 122 pcf

The water content, w₁ = 5.5 %

The net section volume, $V_T$ = 245,000 cy = 6,615,000 ft³

A. $\gamma _d$ = $W_s$ / $V_T$

∴ $W_s$ = $V_T$ × $\gamma _d$ = 6,615,000 ft³ × 122 lb/ft³ = 807030000 lbs

w = ( $W_w$ / $W_s$ ) × 100

∴ $W_w$ = (w/100) × $W_s$ = (6/100) × 807030000 lbs = 48421800 lbs

The weight of solids

W = $W_s$ + $W_w$ = 807030000 lbs + 48421800 lbs = 855451800 lbs

V = W/γ = 855451800 lbs/(110.0 lb/ft.³) = 7776834.54545 ft.³ = 288,030.91 cy

V = 288,030.91 cy

The amount of cubic yards of borrow required = 288,030.91 cy

B. The volume of water in the required soil is found as follows;

$W_{w1}$ = (w₁/100) × $W_s$ = (5.5/100) × 807030000 lbs = 44386650 lbs

The amount of water that must be added = $W_{w1}$ - $W_w$ = 44386650 lbs - 48421800 lbs = -4,035,150 lbs

Therefore, 4,035,150 lbs of water must be removed

The density of water, ρ = 8.345 lbs/gal

Therefore, V = 4,035,150 lbs/(8.345 lbs/gal) = 483541.04254 gal of water must be removed from the natural material

7 0
