Can y’all help me answer part 2

Physics

1 answer:

olganol [36]3 years ago

3 0

Hi!

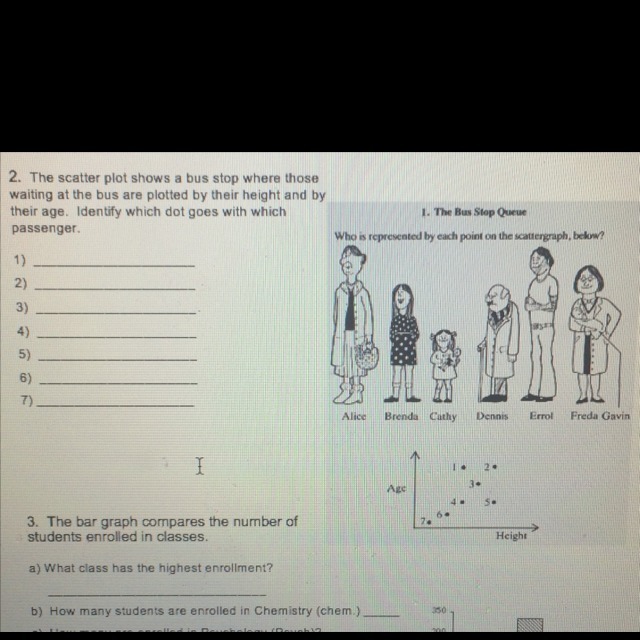

So look at the scatter plot. The youngest and smallest person is number 7. You can tell, because it's at the bottom left corner. The smallest and youngest person is Cathy! So write Cathy for number 7.

Now the tallest people are Alice and Errol. But I can't really tell which one is taller, can you? I can tell that Alice is older. So if I look at the scatter plot, I can see that the two tallest people are 2 and 5, but the older one is 2. Put Alice for 2, and Errol for 5.

Another old person is Dennis. Look at the scatter plot, the second oldest character is 1. Put Dennis for number 1.

The next one is Brenda. She's taller than Cathy and Gavin. So she's the 3rd tallest person. If you look at the scatter plot, you'll see that that is number 4. So put Brenda for number 4.

Now we just have Freda and Gavin. Gavin is in between Cathy and Brenda's height. Which is number 6.

Freda, who is last but certainly not least, is number 3.

Dennis
Alice
Freda
Brenda
Errol
Gavin
Cathy

Hope this helps! :)

-Peredhel

You might be interested in

A very thin oil film (n = 1.25) floats on water (n = 1.33). What is the thinnest film that produces a strong reflection for gree

mixer [17]

Answer:

200 nm is the thinnest film that produces a strong reflection for green light with a wavelength of 500 nm

Explanation:

If two reflected waves interfere constructively ,strong reflection is produced. Two reflected waves will experience a phase change

For constructive interference

$2\times n\times t=m\lambda$

for thinnest film m=1

refractive index should be taken for film n=1.25

thickness of the thinnest film is

$t=\frac{m\lambda}{2n} \\t=\frac{1\times 500}{2\times 1.25} \\t=200 nm$

6 0

3 years ago

Help fast I want the correct answer please does spectral diffusion cause light to scatter

LiRa [457]

Answer: No

Explanation:

Whenever light travelling on a straight line encounters obstruction, it diffracts and scatter.

Scattering of light occurs when light passes through a rough path or a diffused surface.

But in case of spectral diffusion, which is the fluctuation in spectroscopy as a result of time dependent frequency shifts.

Spectral diffusion occurs in particular molecules initiated by excessive excitation energy.

Fluctuation in frequency does not mean diffraction of light or particles

Therefore, spectral diffusion does not cause light to scatter.

7 0

3 years ago

Hi, I am having some issues with this physics problem, and it is vital for me to get this problem solved. Can anyone please give

mafiozo [28]

Answer:

U = 30 m/s

a = 3 m/s²

Explanation:

"A car accelerating uniformly from rest reaches a maximum speed of U in 10 s. It then moves with that speed for an additional 20 s. The distance covered by the car in the 30 s interval is 750 m. Find U and the acceleration of the car in the first 10 s."

During the first 10 s:

v₀ = 0 m/s

v = U m/s

t = 10 s

The distance covered in this time is the average velocity times time:

Δx = ½ (v + v₀) t

Δx = ½ (U + 0) (10)

Δx = 5U

The distance covered in the next 20 seconds is speed times time:

Δx = 20U

The total distance is 750 m:

5U + 20U = 750

25U = 750

U = 30 m/s

The acceleration during the first 10 seconds is the change in speed over change in time.

a = Δv / Δt

a = (30 m/s − 0 m/s) / 10 s

a = 3 m/s²

6 0

3 years ago

A crane lifts a 450 kg concrete to the top of a 50m building in 5s. Assuming g=10m/s

kifflom [539]

Answer:

A . pE=mgh 450kg*50m*10m/s^2=225000Joule

Explanation:

potential energy equals (mass) (gravity) (height)

7 0

2 years ago

Determine the magnitude of the resultant force acting on a 5 −kg particle at the instant t=2 s, if the particle is moving along

Alex787 [66]

Answer:

F = 296.7N

Explanation:

The x and y component of the position vector are given by:

$x(t) =rcos\phi, y(t) = rsin\phi\\ \frac{dx}{dt} =\frac{dr}{dt} cos\phi - rsin\phi\frac{d\phi}{dt} , \frac{dy}{dt}=\frac{dr}{dt}sin\phi + rcos\phi\frac{d\phi}{dt}\\ \frac{d^2x}{dt^2} = \frac{d^2r}{dt^2} cos\phi - \frac{dr}{dt} sin\phi\frac{d\phi}{dt} -\frac{dr}{dt} sin\phi\frac{d\phi}{dt} - r(cos\phi\frac{d^2\phi}{dt^2} + sin\phi\frac{d^2\phi}{dt^2})$

$\frac{d^2y}{dt^2} = \frac{d^2r}{dt^2} sin\phi + \frac{dr}{dt} cos\phi\frac{d\phi}{dt}+\frac{dr}{dt}cos\phi\frac{d\phi}{dt}+r(-sin\phi\frac{d^2\phi}{dt^2} +cos\phi\frac{d^2\phi}{dt^2})$

At t = 2s:

$\phi(2) = 1.5t^2-6t= -6\\ \frac{d\phi}{dt}(2) = 3t-6=0\\ \frac{d^2\phi}{dt^2}=3\\r(2)=2t+10=14\\ \frac{dr}{dt}=2\\\frac{d^2r}{dt^2} = 0$

Plugging in:

$\frac{d^2x}{dt^2}=-42(cos(-6) + sin(-6))=-52\frac{m}{s^2} \\\frac{d^2y}{dt^2} = 42(cos(-6)-sin(-6))=28.6\frac{m}{s^2}$

The resulting force F is:

$F = m\sqrt{(\frac{d^2x}{dt^2})^2 + (\frac{d^2y}{dt^2})^2}=296.7N$

5 0

3 years ago
