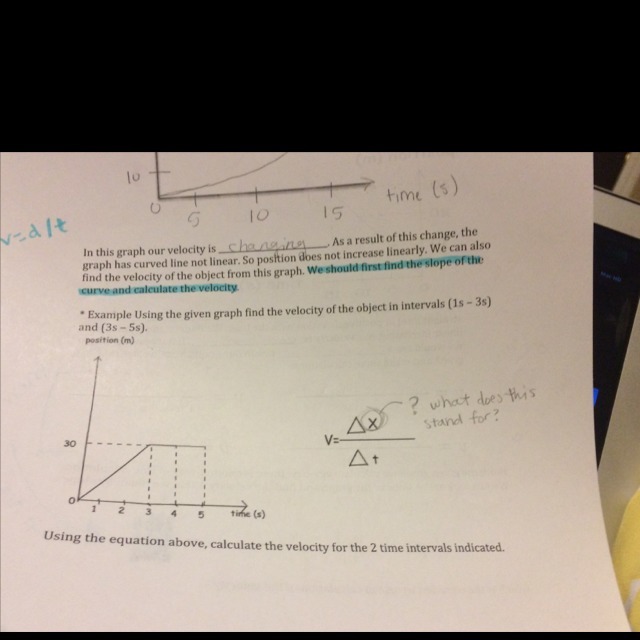

What does ΔX mean in this equation?

Physics

1 answer:

igor_vitrenko [27]3 years ago

5 0

The triangle before the x means "change in x" which is: (finalx - initialx)

So if the interval is 1 sec to 3 sec, change in t would be 3-1=2 sec. The corresponding x-values are 30-10=20

change in x / change in t = (30-10)/(3-1) = 10 m/s

You might be interested in

HI PLEASE HELP!

butalik [34]

Answer:

Chemical reactions occur slower at lower temperatures and faster at higher temperatures. When you put a glow stick in cold water, the chemical reaction slows down but will last for a longer period of time. When you put a glow stick in hot water, the reaction speeds up but will be over quicker.

Explanation:

(self-explanatory)

I hope this helps, have a nice day.

7 0

3 years ago

A metal has a strength of 414 MPa at its elastic limit and the strain at that point is 0.002. Assume the test specimen is 12.8-m

ser-zykov [4K]

To solve this problem, we will start by defining each of the variables given and proceed to find the modulus of elasticity of the object. We will calculate the deformation per unit of elastic volume and finally we will calculate the net energy of the system. Let's start defining the variables

Yield Strength of the metal specimen

$S_{el} = 414Mpa$

Yield Strain of the Specimen

$\epsilon_{el} = 0.002$

Diameter of the test-specimen

$d_0 = 12.8mm$

Gage length of the Specimen

$L_0 = 50mm$

Modulus of elasticity

$E = \frac{S_{el}}{\epsilon_{el}}$

$E = \frac{414Mpa}{0.002}$

$E = 207Gpa$

Strain energy per unit volume at the elastic limit is

$U'_{el} = \frac{1}{2} S_{el} \cdot \epsilon_{el}$

$U'_{el} = \frac{1}{2} (414)(0.002)$

$U'_{el} = 414kN\cdot m/m^3$

Considering that the net strain energy of the sample is

$U_{el} = U_{el}' \cdot (\text{Volume of sample})$

$U_{el} = U_{el}'(\frac{\pi d_0^2}{4})(L_0)$

$U_{el} = (414)(\frac{\pi*0.0128^2}{4}) (50*10^{-3})$

$U_{el} = 2.663N\cdot m$

Therefore the net strain energy of the sample is $2.663N\codt m$

6 0

3 years ago

Which tool would you use to measure the height of a cube of metal

SCORPION-xisa [38]

It depends on the size of the cube, but you could use a ruler for almost any size, or if it is small enough, you could use a caliper to get a very precise measurement.

3 0

3 years ago

Read 2 more answers

Once you start pulling your object with less force than friction, what should you expect your object to do? What about when your

forsale [732]

#Case -1

If Pulling force is less than frictional force the object won't move .

#Case-2

If Pulling force is greater than frictional force then object will be .

In order to calculate friction force you need Limiting friction first .

$\\ \sf\longmapsto F_L=\mu sN$
