We have a long wire with a circular cross section and radius a = 2.40 cm. The current density in this wire is uniform, with a to

tal current of 3.00 A. Find the magnitude of the magnetic field at a distance of 0.72 cm from the center axis. Treat the wire as a cylinder.

1 answer:

Alika [10]3 years ago

7 0

Answer:

The magnitude of the magnetic field is 7.49x10⁻⁶T

Explanation:

The magnetic field is:

$B=(\frac{\mu i}{2\pi R^{2} } )r$

Where

i = current = 3 A

R = radius = 2.4 cm = 0.024 m

r = distance = 0.72 cm = 7.2x10⁻³m

Replacing:

$B=(\frac{4\pi x10^{-7} *3}{2\pi *0.024^{2} } )*7.2x10^{-3}= 7.49x10^{-6} T$

You might be interested in

the force between a planet and a spacecraft is 1 million newtons. whst will the force be iv the spacecraft moves to halfg its or

dybincka [34]

The forces of gravity between two objects are inversely proportional to
the square of the distance between them. So reducing the distance
by 1/2 means increasing the gravitational force by 2² = 4 times.
The 1 million newtons becomes 4 million newtons.

Note that this does NOT mean the satellite's altitude above the surface.
When you're calculating gravitational forces, it's the distance between
the centers of the objects. So the question is a meaningful exercise
only if we use the distance between the satellite and the planet's center.

6 0

3 years ago

Determine la resistencia equivalente de la "escalera" de

defon

Las respuestas a cada inciso son:

a) La resistencia equivalente de la "escalera" de resistores iguales de 125 Ω que se muestra en la figura adjunta es:

$R_{t} = 341.7 \: \Omega$

b) La corriente a través de cada uno de los tres resistores de la izquierda si se conecta una batería de 50.0 V entre los puntos A y B es:

Correspondiente a R8 y R9 es 0.23 A
Correspondiente a R7 es 0.17 A.

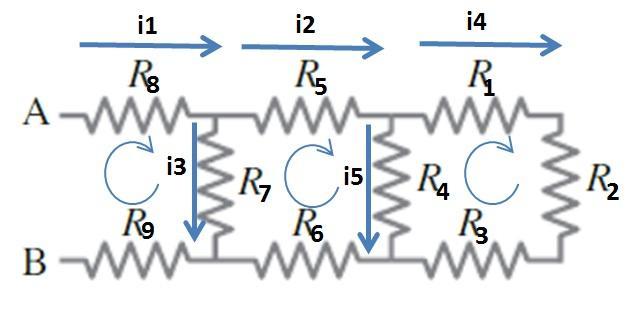

a) En la imagen adjuntada correspondiente a la Figura 26-40, podemos observar que las resistencias 1, 2 y 3 están en serie, por lo tanto la ressitencia equivalente entre estas 3 es:
