Two identical 7.10-g metal spheres (small enough to be treated as particles) are hung from separate 300-mm strings attached to t

he same nail in a ceiling. Surplus electrons are added to each sphere, and then the spheres are brought in contact with each other and released. Their equilibrium position is such that each string makes a 15.0 ∘ angle with the vertical. How many surplus electrons are on each sphere?

1 answer:

bagirrra123 [75]3 years ago

7 0

Answer:

1.396 x 10^12

Explanation:

Hi !

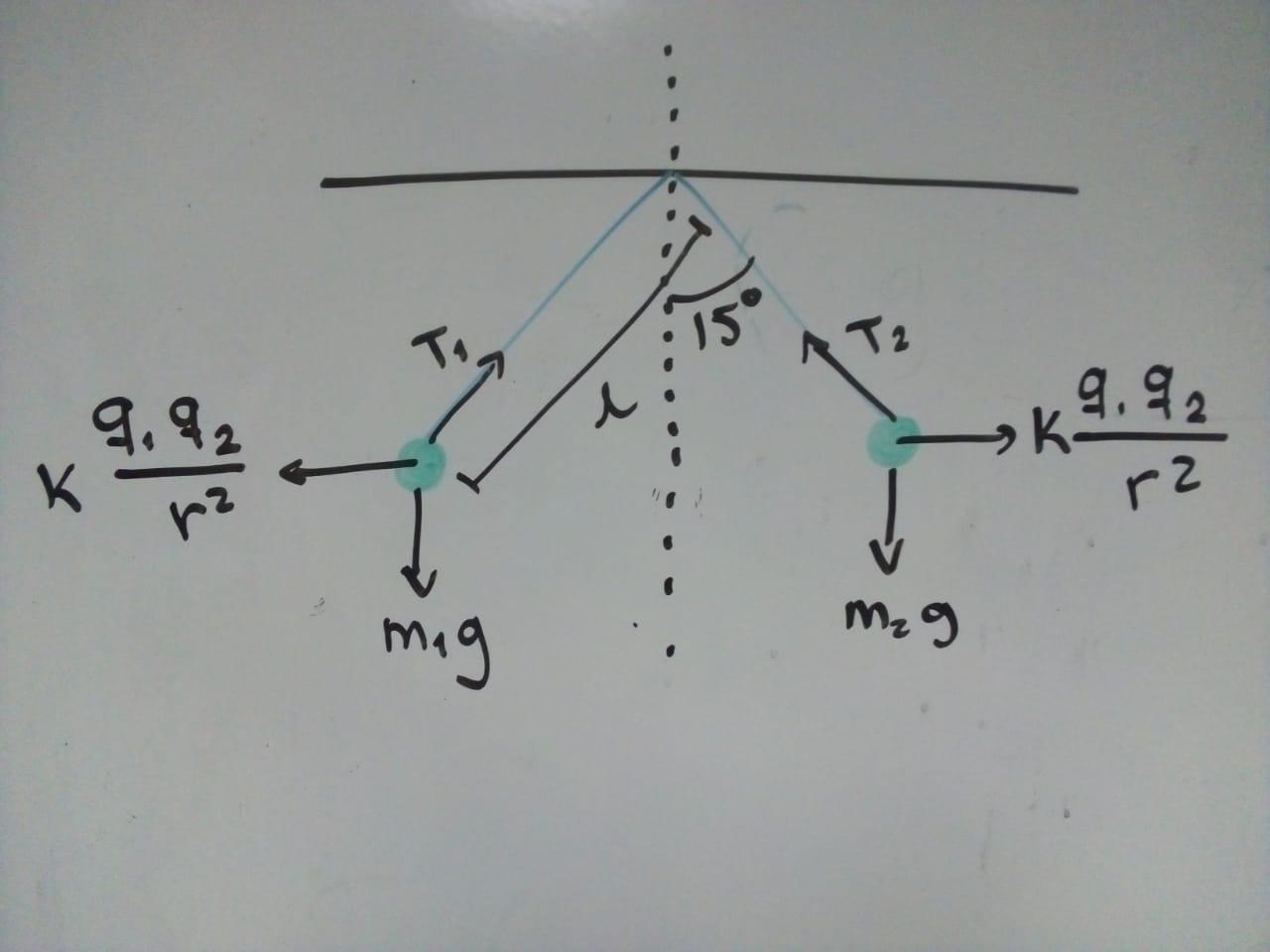

Attached you can see a fre body diagram I made about the problem, just set

m1 = m2 = 7.1 g = 0.0071 kg

l = 300 mm = 0.3 m

And since the spheres are brought in contact:

q1 = q2 = q

T1 = T2 = T

k = 8.99×10^9 (Nm^2)/C^2

Since both spheres are in equilibrium the vertical and horizontal components of the force must add to zero, that is:

T cos(15) = mg --- ( 1 )

T sin(15) = k (q/r)^2 --- ( 2 )

Where r, is the distance between the two spheres:

r = 2 l sin(15) = 0.155 m

dividing equation (2) by ( 1 )

tan(15) = (k q^2) / (r^2 mg)

Solving for q^2:

q^2 = tan(15) r^2 mg / k = 4.987 x 10^-14 C^2

q = -2.233 x 10^-7 C

Now, the electric charge of an electron is:

-e = -1.6 x10^-19 C

Therefore, there are q/-e electrons on each sphere:

q/-e = 1.396 x 10^12

You might be interested in

Consider a heat engine that inputs 10 kJ of heat and outputs 5 kJ of work. What are the signs on the total heat transfer and tot

Oksi-84 [34.3K]

Answer:

Total heat transfer is positive

Total work transfer is positive

Explanation:

The first law of thermodynamics states that when a system interacts with its surrounding, the amount of energy gained by the system must be equal to the amount of energy lost by the surrounding. In a closed system, exchange of energy with the surrounding can be done through heat and work transfer.

Heat transfer to a system is positive and that transferred from the system is negative.

Also, work done by a system is positive while the work done on the system is negative.

Therefore, from the question, since the heat engine inputs 10kJ of heat, then heat is being transferred to the system. Hence, the sign of the total heat transfer is positive (+ve)

Also, since the heat engine outputs 5kJ of work, it implies that work is being done by the system. Hence the sign of the total work transfer is also positive (+ve).

5 0

3 years ago

A series RC circuit contains a 1,000 ohm resistor and a 0.025 microfarad capacitor. What is the time constant of this circuit?

stiks02 [169]

The RC time constant, also called tau, the time constant (in seconds) of an RC circuit, is equal to the product of the circuit resistance (in ohms) and the circuit capacitance (in farads), i.e.

$\tau = RC$

Here,

R = Resistance

C = Capacitance

Replacing we have that

$\tau = (1000)(0.025*10^{6})$

$\tau = 25*10^{-6}$

$\tau = 25\mu s$

Therefore the time constant of this circuit is $\tau = 25\mu s$

5 0

3 years ago

The field around a solenoid is similar to the field around a bar magnet.<br><br> true or false?

OlgaM077 [116]

The answer would be true :)

8 0

3 years ago

An isotropic point source emits light at wavelength 510 nm, at the rate of 170 W. A light detector is positioned 410 m from the

Wewaii [24]

Answer:

$\frac{dB}{dt} = 3.03 \times 10^6 T/s$

Explanation:

As we know that the power emitted by the source is given as

$P = 170 W$

now we know that

$P = \frac{N}{t} (\frac{hc}{\lambda})$

now we know that energy density is given as

$u = \frac{B^2}{2\mu_0} + \frac{\epsilon_0 E^2}{2}$

now we have

$E = B c$

$u = \frac{B^2}{2\mu_0}$

intensity is defined as

$I = \frac{P}{A}$

now we have

$\frac{I}{c} = u = \frac{B^2}{2\mu_0}$ [/tex]

now we have

$\frac{dB}{dt} = \omega B$

$\frac{dB}{dt} = \frac{2\pi c B}{\lambda}$

$\frac{dB}{dt} = \frac{2\pi c \sqrt{2\mu_0 I}}{\lambda\sqrt c}$

here we have

$I = \frac{P}{4\pi r^2}$

$I = \frac{170}{4\pi (410)^2}$

$I = 8.05 \times 10^{-5}$

now we have

$\frac{dB}{dt} = \frac{2\pi\sqrt{2\mu_0 c (8.05 \times 10^{-5})}}{(510 nm)}$

$\frac{dB}{dt} = 3.03 \times 10^6 T/s$

4 0

3 years ago

deff fn [24]

Answer:

Frequency = 24 × 10⁸ Hz

Explanation:

Given the following data;

Speed = 3 × 10⁸ m/s

Wavelength = 0.125 meters

To find the frequency of the electromagnetic wave;

Mathematically, the speed of a wave is given by the formula;

Speed = Wavelength × frequency

Substituting into the formula, we have;

3 × 10⁸ = 0.125 × frequency

Frequency = (3 × 10⁸)/0.125

Frequency = 24 × 10⁸ Hz

3 0

3 years ago
