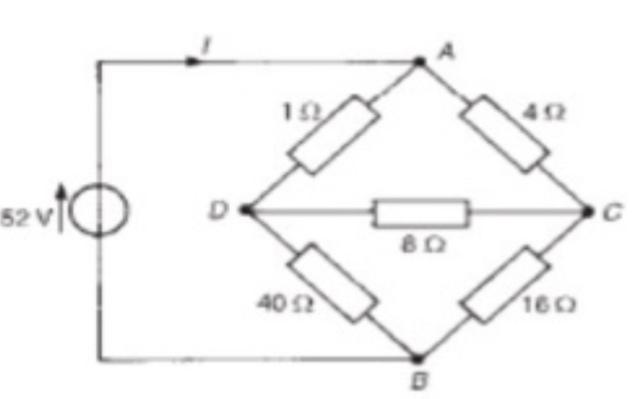

Use a delta-star conversion to simplify the delta BCD (40 , 16 , and 8 ) in the

Engineering

1 answer:

Sladkaya [172]4 years ago

7 0

Answer:

Current, I = 4A

Explanation:

Since the connection is in delta, let's convert to star.

Simplify BCD:

$R1 = \frac{40 * 8}{40 + 16 + 8} = \frac{320}{64} = 5 ohms$

$R2 = \frac{16 * 8}{40 + 16 + 8} = \frac{128}{64} = 2 ohms$

$R3 = \frac{40 * 16}{40 + 16 + 8} = \frac{640}{64} = 10 ohms$

From figure B, it can be seen that 6 ohms and 6 ohms are connected in parallel.

Simplify:

$\frac{6 * 6}{6 + 6} = \frac{36}{12} = 3 \ohms$

Req = 10 ohms + 3 ohms

Req = 13 ohms

To find the current, use ohms law.

V = IR

Where, V = 52volts and I = 13 ohms

Solve for I,

$I = \frac{V}{R} = \frac{52}{13} = 4A$

Current, I = 4 A
