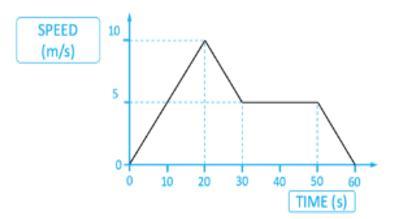

The graph shows the motion of a cyclist.

Physics
1 answer:
Svetach [21]3 years ago
6 0

Answer:

A. 0.5m/s².

B. –0.5m/s².

C. –0.5m/s².

D. 100m.

Explanation:

A. Determination of the acceleration in the first 20s.

Initial velocity (u) = 0

Final Velocity (v) = 10m/s

Time (t) = 20secs.

Acceleration (a) =..?

Acceleration = change in Velocity /time

a = (v – u)/t

a = (10 – 0)/20 = 10/20

a = 0.5m/s²

Therefore, the acceleration of the cyclist in the first 20secs is 0.5m/s²

B. Determination of the acceleration between 20 and 30s. This can be obtained as follow:

Initial velocity (u) = 10m/s

Final Velocity (v) = 5m/s

Time (t) = 30 – 20 = 10s

Acceleration (a) =..?

Acceleration = change in Velocity /time

a = (v – u)/t

a = (5 – 10)/10 = –5/10

a = –0.5m/s²

Therefore, the acceleration of the cyclist between the 20 and 30secs is

–0.5m/s².

C. Determination of the acceleration in the last 10s.

Initial velocity (u) = 5m/s

Final Velocity (v) = 0

Time (t) = 10s

Acceleration (a) =..?

Acceleration = change in Velocity /time

a = (v – u)/t

a = (0 – 5)/10 = –5/10

a = –0.5m/s²

Therefore, the acceleration of the cyclist between the last 10secs is

–0.5m/s².

D. Determination of the distance travelled by the cyclist when he was moving at a constant speed.

Velocity (v) = 5m/s

Time (t) = 50 – 30 = 20secs

Displacement (d) =?

Velocity = Displacement /Time

v = d/t

5 = d/20

Cross multiply

d = 5 x 20

d = 100m

Therefore, the distance travelled by the cyclist at constant speed is 100m
