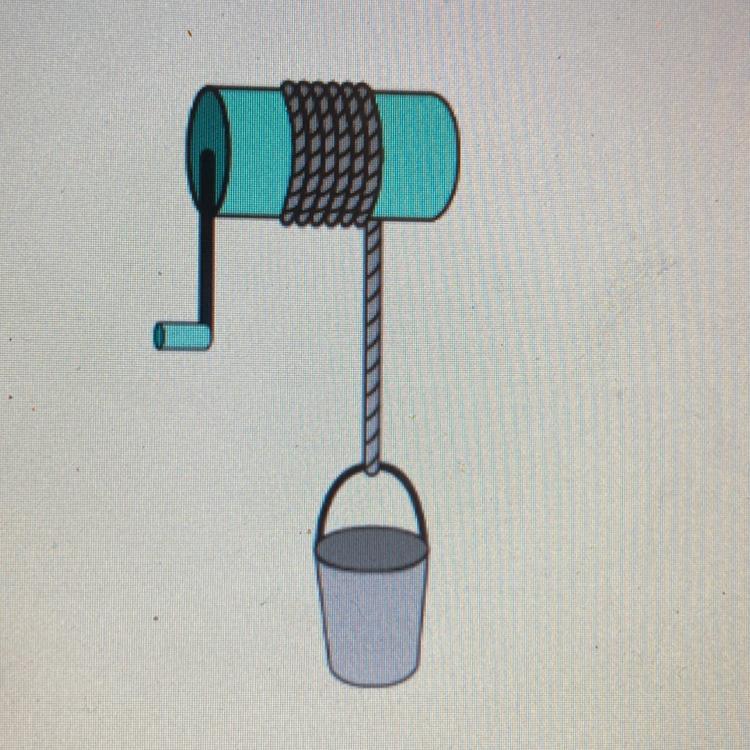

Which simple machine is shown in the diagram?

1 answer:

sdas [7]3 years ago

6 0

Answer:

Wheel and axle

Explanation:

Which simple machine is shown in the diagram?

a wheel and axle

From the given diagram, the machine shown is actually a wheel and axle

Description of wheel and axle

The wheel and axle is a machine consisting of a wheel attached to a smaller axle so that these two parts rotate together in which a force is transferred from one to the other.
