Answer:
(a) Rate of heat transfer = 34.65 W/m
(b) quality of outlet of pipe x = 0.967
(c) Temperature of outer surface of insulation, T₂ = U1.157°C
Yes it is safe to touch, (But gentle touch)
Explanation:
Detailed explanation is given in the attach document.
Answer:
C
Explanation:
Pitot tube:
Pitot tube is a device which is used to measure the velocity of flow by measuring pressure difference between the points.
As we know that stagnation pressure is the summation of dynamic and static pressure.
Stagnation pressure = Static pressure + Dynamic pressure
So
Dynamic pressure = Stagnation pressure - Static pressure
We know that dynamic pressure
On the other hand Pitot tube measure the dynamic pressure.
So option C is correct.
The question is incomplete. We have to calculate :
a). the cutting force
b). volumetric metal removal rate, MRR
c). the horsepower required at the cut
d). if the power efficiency of the machine tool is 90%, determine the motor horsepower
Solution :
Given :
Cutting velocity (v) = 500 ft/min
= 500 x 12 in/min
= 6000 in/min
Feed , f = 0.025 in/rev
Depth of cut, d = 0.2 in
b). Volumetric material removal rate, MRR = v.f.d
= 6000 x 0.025 x 0.2
= 30
c). Horsepower required = MRR x unit horsepower
= 30 x 1.6
= 48 hp
a). Cutting force,
(1 hp = 550 ft lbf /sec)
= 3168 lbf
d). Machine HP required
= 53.33 HP
Answer:
a) True
Explanation:
Roller can provide reaction for push support but it can not provide reaction for pull support.

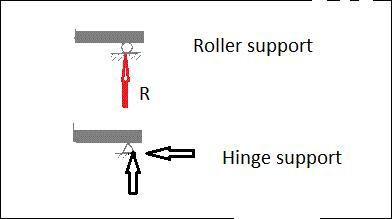

From the free body diagram of roller and hinge support we can easily find that ,Roller providing vertical reaction and can not provide horizontal reaction.
On the other hand hinge support can provide reaction in both the direction.
So we can say that roller can not proved reaction for pull support.
