The x and y components of a force are 2 Nand - 3 N. The force is

Physics

1 answer:

jarptica [38.1K]3 years ago

3 0

Answer:

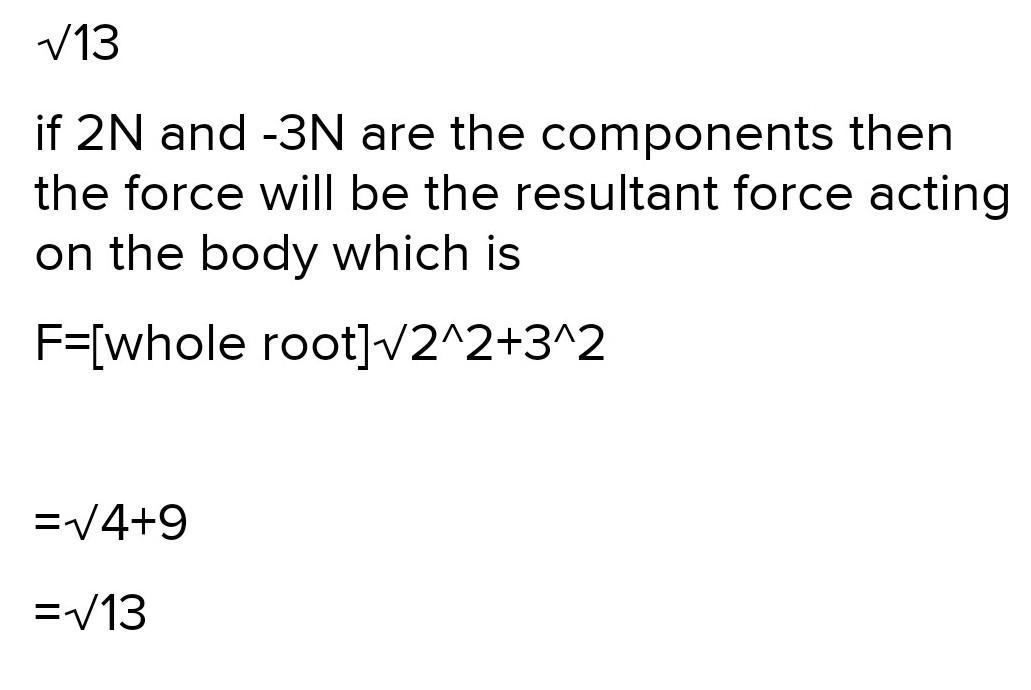

Your answer is in the pic

You might be interested in

Starting from rest, a disk rotates about its central axis with constant angular acceleration. in 6.00 s, it rotates 44.5 rad. du

Klio2033 [76]

a. The disk starts at rest, so its angular displacement at time $t$ is

$\theta=\dfrac\alpha2t^2$

It rotates 44.5 rad in this time, so we have

$44.5\,\mathrm{rad}=\dfrac\alpha2(6.00\,\mathrm s)^2\implies\alpha=2.47\dfrac{\rm rad}{\mathrm s^2}$

b. Since acceleration is constant, the average angular velocity is

$\omega_{\rm avg}=\dfrac{\omega_f+\omega_i}2=\dfrac{\omega_f}2$

where $\omega_f$ is the angular velocity achieved after 6.00 s. The velocity of the disk at time $t$ is

$\omega=\alpha t$

so we have

$\omega_f=\left(2.47\dfrac{\rm rad}{\mathrm s^2}\right)(6.00\,\mathrm s)=14.8\dfrac{\rm rad}{\rm s}$

making the average velocity

$\omega_{\rm avg}=\dfrac{14.8\frac{\rm rad}{\rm s}}2=7.42\dfrac{\rm rad}{\rm s}$

Another way to find the average velocity is to compute it directly via

$\omega_{\rm avg}=\dfrac{\Delta\theta}{\Delta t}=\dfrac{44.5\,\rm rad}{6.00\,\rm s}=7.42\dfrac{\rm rad}{\rm s}$

c. We already found this using the first method in part (b),

$\omega=14.8\dfrac{\rm rad}{\rm s}$

d. We already know

$\theta=\dfrac\alpha2t^2$

so this is just a matter of plugging in $t=12.0\,\mathrm s$ . We get

$\theta=179\,\mathrm{rad}$

Or to make things slightly more interesting, we could have taken the end of the first 6.00 s interval to be the start of the next 6.00 s interval, so that

$\theta=44.5\,\mathrm{rad}+\left(14.8\dfrac{\rm rad}{\rm s}\right)t+\dfrac\alpha2t^2$

Then for $t=6.00\,\rm s$ we would get the same $\theta=179\,\rm rad$ .

7 0

4 years ago

A student is asked to determine the work done on a block of wood when the block is pulled horizontally using an attached string.

Lerok [7]

Answer:

D. Graphing the force as a function of distance and calculating the area under the curve.

Explanation:

5 0

4 years ago

Read 2 more answers

Which statement is correct about the potential energy of a car moving down a ramp?

Paha777 [63]

Potential energy is highest when the car is released at the top of the ramp. The correct answer is option C

Potential energy is the energy possessed by a body when the body is at rest. Potential energy is at time called gravitational potential energy which as a product of mass of the body, acceleration due to gravity and the height attained by the body. That is,

P.E = mgh

When a car is moving down a ramp, the potential energy of the car can never remain the same except the car stop at a certain point.

Whenever a car is moving down a ramp, the potential energy of the car will be highest when the car is release at the top of the ramp. And lowest when the car reaches the bottom of the ramp.

The statement that is correct about the potential energy of a car moving down a ramp is:

Potential energy is highest when the car is released at the top of the ramp.

Therefore, the correct answer is option C

Learn more here: brainly.com/question/17400615

8 0

3 years ago

A projectile is thrown with velocity v at an angle θ with horizontal. When the projectile is at a height equal to half of the ma

raketka [301]

Let, the maximum height covered by projectile be $\sf{H_m}$

$\purple{ \longrightarrow \bf{h_m = \dfrac{ {v}^{2} \: {sin}^{2} \theta }{2g} }}$

Projectile is thrown with a velocity = v
Angle of projection = θ

Velocity of projectile at a height half of the maximum height covered be $\sf{v_0}$

$\qquad$ ______________________________

Then –

$\qquad$ $\pink{ \longrightarrow \bf{ \dfrac{h_m}{2} = \dfrac{ {v_0}^{2} \: {sin}^{2} \theta }{2g} }}$

$\qquad$ $\longrightarrow \sf{ \dfrac{ {v}^{2} \: {sin}^{2} \theta }{2g} \times \dfrac{1}{2} = \dfrac{ {v_0}^{2} \: {sin}^{2} \theta }{2g} }$

$\qquad$ $\longrightarrow \sf{ \dfrac{ {v}^{2} \: {sin}^{2} \theta }{4g} = \dfrac{ {v_0}^{2} \: {sin}^{2} \theta }{2g} }$

$\qquad$ $\longrightarrow \sf{ \dfrac{ {v}^{2} \: {sin}^{2} \theta }{2} = {v_0}^{2} \: {sin}^{2} \theta }$

$\qquad$ $\longrightarrow \sf{ \dfrac{ {v}^{2} }{2} = {v_0}^{2} }$

$\qquad$ $\longrightarrow \bf{v_0 = \sqrt{ \dfrac{ {v}^{2} }{2} } = \dfrac{v}{ \sqrt{2} } }$

Now, the vertical component of velocity of projectile at the height half of $\sf{h_m}$ will be –

$\qquad$ $\longrightarrow \bf{v_{(y)}=v_0 \: sin \theta }$

$\qquad$ $\longrightarrow \bf{v_{(y)} = \dfrac{v}{ \sqrt{2} } \: sin \theta = \dfrac{v \: sin \: \theta}{ \sqrt{2} } }$

Therefore, the vertical component of velocity of projectile at this height will be–

☀️ $\qquad$ $\pink {\bf{ \dfrac{v \: sin \: \theta}{ \sqrt{2} }} }$

6 0

3 years ago

Read 2 more answers

Please help me with this question ASAP.

victus00 [196]

Answer:

i. 6.923 V

ii. The e.m.f. = 22.5 V

Explanation:

i. The given parameters are;

Length of potentiometer = 1 m

The resistance of the potentiometer = 10 Ω

The e. m. f. of the attached cell = 9 V

The current, I flowing in the circuit = e. m. f/(Total resistance)

The current, I flowing in the circuit = 9 V/(10 + 3) = 9/13 A

The potential difference, p.d. across the 1 m potentiometer wire = I × Resistance of the potentiometer wire

The p.d. across the potentiometer wire = 9/13×10 = 90/13 = 6.923 V

ii) Given that the 1 m potentiometer wire has a resistance of 10 Ω, 75 cm which is 0.75 m will have an e.m.f. given by the following relation;

$\dfrac{E}{R_{balance}} = \dfrac{V}{R_{cell}}$

Where:

E = e.m.f. of the balance point cell

$R_{balance}$ = Resistance of 75 cm of potentiometer wire = 0.75×10 = 7.5 Ω

$R_{cell}$ = Resistance of the cell in the circuit = 3 Ω

V = e.m.f. attached cell = 9 V

$\dfrac{E}{7.5} = \dfrac{9}{3}$

E = 7.5*3 = 22.5 V

The e.m.f. = 22.5 V

7 0

4 years ago

The x and y components of a force are 2 Nand - 3 N. The force is​

The x and y components of a force are 2 Nand - 3 N. The force is
