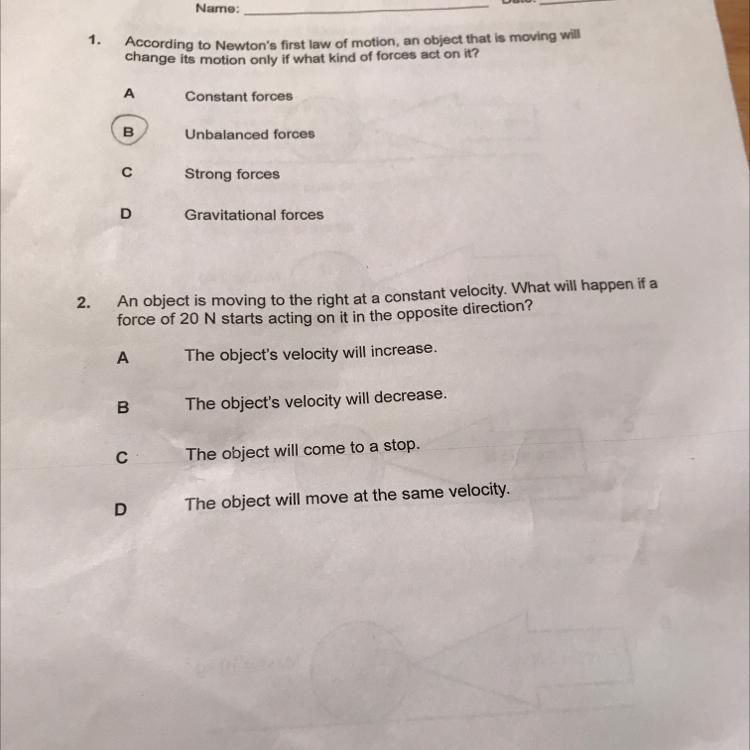

An object is moving to the right at a constant velocity. What will happen if a

Consider two parallel wires where the magnitude of the left currentis 2 I0(io) and that of the right current is I0(io). Point A

balu736 [363]

Answer:

Explanation:

At the point midway between wires

magnetic field due to wire having current 2I₀

= 10⁻⁷ x 2 x2I₀ / r where 2r is the distance between wires .

magnetic field due to wire having current I₀

= 10⁻⁷ x 4 I₀ / r

magnetic field due to wire having current I₀

= 10⁻⁷ x 2I₀ / r

= 10⁻⁷ x 2 I₀ / r where 2r is the distance between wires .

these fields are in opposite direction as direction of current is same in both .

net magnetic field = (4 - 2 )x 10⁻⁷ x I₀ / r

= 2 x 10⁻⁷ x I₀ / r

At point A net magnetic field = 2 x 10⁻⁷ x I₀ / r

At point B , we shall calculate magnetic field

magnetic field due to nearer wire having current 2 I₀ = 10⁻⁷ x 4 I₀ / r

magnetic field due to wire far away = 10⁻⁷ x 2 I₀ / 3r

These magnetic fields act in the same direction so they will add up

net magnetic field = [ (4 I₀ / r) + (2 I₀ / 3r) ] x 10⁻⁷

= (14 I₀ / 3r ) x 10⁻⁷

Magnetic field at point B = (14 I₀ / 3r ) x 10⁻⁷

Ratio of field at A and B

= 3 / 7 . Ans

3 0

4 years ago

What are the x and y components of a 100m/s velocity acting at an angle of 37° from the positive x axis

katrin2010 [14]

Answer:

x component = 79.86

Y component = 60.18

Explanation:

x component = 100cos37 = 79.86

y component = 100sin37 = 60.18

8 0

3 years ago

A positive charge is moved from one point to another point along an equipotential surface. The work required to move the charge

Strike441 [17]

Answer:zero

Explanation:

Work done in moving a charge is zero in equipotential surface because potential of each point is same .

When there is Potential gradient then some particle experiences a force while moving but in equipotential surface there is no potential gradient , that is why work done in moving a charge is zero.

5 0

3 years ago

Andrea asked her brother to take a 4 ft floating raft out of the water near the wave-swept shore. Using this raft as a measuring

lutik1710 [3]

Answer:

176ft/s

Explanation:

Speed of a wave is a function of the frequency and wavelength of the wave. It is expressed mathematically as:

V = fλ where:

V is the speed of the wave

f is the frequency

λ is the wavelength

Given f = 16Hz, λ = 11ft

V = 16×11

V = 176ft/s

7 0

4 years ago

Someone please help with this

SSSSS [86.1K]

Answer:

<em>The new force is 2/3 of the original force</em>

Explanation:

<u>Coulomb's Law </u>

The electrical force between two charged objects is directly proportional to the product of their charges and inversely proportional to the square of the distance between the two objects.

Written as a formula:

$\displaystyle F=k\frac{q_1q_2}{d^2}$
