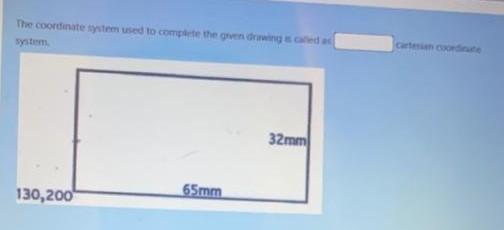

The system use to complete this drawing called as_____

Engineering

1 answer:

Andreyy893 years ago

6 0

Answer:

Technical drawing

Explanation:

The drawings reflect what the project specifications are unlikely to cover

You might be interested in

A 150 MVA, 24 kV, 123% three-phase synchronous generator supplies a large network. The network voltage is 27 kV. The phase angle

Aleks04 [339]

Answer:

the generator induced voltage is 60.59 kV

Explanation:

Given:

S = 150 MVA

Vline = 24 kV = 24000 V

$X_{s} =1.23(\frac{V_{line}^{2} }{s} )=1.23\frac{24000^{2} }{1500} =4723.2 ohms$

the network voltage phase is

$V_{phase} =\frac{V_{nline} }{\sqrt{3} } =\frac{27}{\sqrt{3} } =15.58kV$

the power transmitted is equal to:

$|E|=\frac{P*X_{s} }{3*|V_{phase}|sinO } ;if-O=60\\|E|=\frac{300*4.723}{3*15.58*sin60} =34.98kV$

the line induced voltage is

$|E_{line} |=\sqrt{3} *|E|=\sqrt{3} *34.98=60.59kV$

7 0

3 years ago

The part of a circuit that carries the flow of electrons is referred to as the?

Oksanka [162]

Answer:

Conductor

Explanation:

Current is carried by a conductor.

The purpose of a dielectric and/or insulator is to prevent current flow. An electrostatic field may set up the conditions for current flow, but it carries no current itself.

7 0

3 years ago

Which of the following is NOT an example of a direct cost of workplace injuries?

hammer [34]

Answer:

Lost productivity

4 0

3 years ago

Help i need to find out how to replace a water hose in a truck

Arisa [49]

How long is the old hose

7 0

2 years ago

A spring-mass-damper instrument is employed for acceleration measurements. The spring constant is 12000 N/m. The mass is 5 g. Th

shepuryov [24]

Answer:

a) 246.56 Hz

b) 203.313 Hz

c) Add more springs

Explanation:

Spring constant = 12000 N/m

mass = 5g = 5 * 10^-3 kg

damping ratio = 0.4

<u>a) Calculate Natural frequency </u>

Wn = √k/m = $\sqrt{12000 / 5*10^{-3} }$

= 1549.19 rad/s ≈ 246.56 Hz

<u>b) Bandwidth of instrument </u>

W / Wn = $\sqrt{1-2(0.4)^2}$

W / Wn = 0.8246

therefore Bandwidth ( W ) = Wn * 0.8246 = 246.56 * 0.8246 = 203.313 Hz

C ) To increase the bandwidth we have to add more springs

5 0

3 years ago
