dlinn [17]
2 years ago
14

The answer is 50 i.e. C

Physics
1 answer:
KIM [24]2 years ago
4 0

Answer:

Explanation:

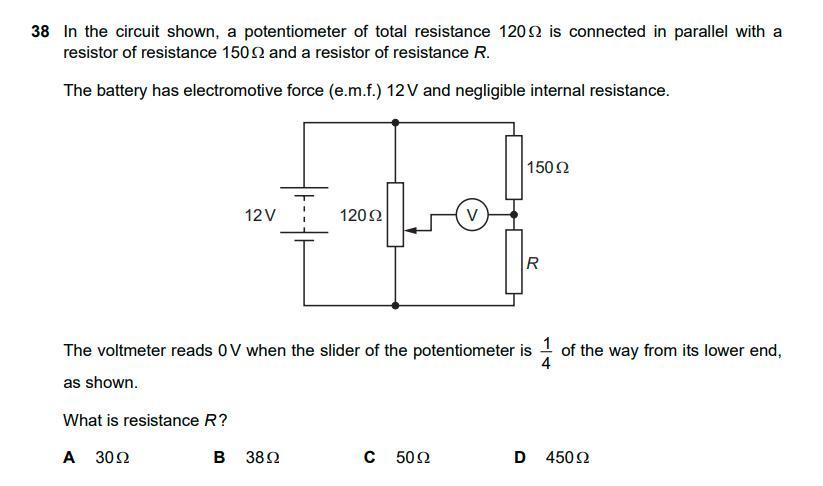

If the potentiometer is assumed to be linear

Then one one quarter of the total resistance will be below the slider and three quarters of the resistance will be above the slider.

To get zero voltage reading, 150 must be 3/4 of the total resistance of the right leg

150 = 0.75(150 + R)

150 = 112.5 + 0.75R

37.5 = 0.75R

R = 50 Ω

You might be interested in
At a constant pressure and a temperature of 280 K, the gas in a cylinder has a volume of 10.0 liters. If the volume of the gas i
IgorC [24]
560K I believe is the answer
6 0
3 years ago
What system carries food to cells though the blood ?
irinina [24]
"Circulatory system" does that, as all about transportation of blood within the body comes under it's work

Hope this helps!
5 0
3 years ago
Which of the following factors affects the pressure of an enclosed gas
PIT_PIT [208]

The answer is:

All the above

The explanation:

The volume and the temperature and the number of particles will affect the pressure of an enclosed gas.

because according to boyle's law when the temperature constant so the pressure and volume of a gas have an inverse relationship, when temperature is constant.

when:

PV = nRT

when p is the pressure

V is the volume

n is number of moles

T is temperature

from this law we can know that there is a relation  between P and V and when n has a relation with the number of particles so:

volume , temperature and number of particles affect the pressure of an enclosed gas.

3 0
3 years ago
A ball is thrown upward with a speed of 28.2 m/s.A. What is its maximum height?B. How long is the ball in the air?C. When does t
Ede4ka [16]

Answer:

(A) The maximum height of the ball is 40.57 m

(B) Time spent by the ball on air is 5.76 s

(C) at 33.23 m the speed will be 12 m/s

Explanation:

Given;

initial velocity of the ball, u = 28.2 m/s

(A) The maximum height

At maximum height, the final velocity, v = 0

v² = u² -2gh

u² = 2gh

h = \frac{u^2}{2g}\\\\h = \frac{(28.2)^2}{2*9.8}\\\\h = 40.57 \ m

(B) Time spent by the ball on air

Time of flight = Time to reach maximum height + time to hit ground.

Time to reach maximum height = time to hit ground.

Time to reach maximum height  is given by;

v = u - gt

u = gt

t = \frac{u}{g}

Time of flight, T = 2t

T = \frac{2u}{g}\\\\ T = \frac{2*28.2}{9.8}\\\\ T = 5.76 \ s

(C) the position of the ball at 12 m/s

As the ball moves upwards, the speed drops, then the height of the ball when the speed drops to 12m/s will be calculated by applying the equation below.

v² = u² - 2gh

12² = 28.2² - 2(9.8)h

12² - 28.2² = - 2(9.8)h

-651.24 = -19.6h

h = 651.24 / 19.6

h = 33.23 m

Thus, at 33.23 m the speed will be 12 m/s

6 0
3 years ago
At the beginning of a unit on forces, Ms. Alton is leading a class discussion asking her students
VMariaS [17]

Answer:

(iv), (v), (vi) would be incorrect.

Explanation:

(iv) Force isn't transferred from one colliding object to another, but momentum can be.

(v) An object doesn't stop immediately a force stops acting on it. Think of a thrown ball.

(vi) For an object not to move, it means that the net force on the object is zero, and not necessarily that there are no forces acting on the object. For example, an object could be pushed on one side, and be pushed on the other side with an equal force in the opposite direction. The forces would cancel each other and the net force would be zero.

The rest should be correct.

6 0
3 years ago
