Gala2k [10]
2 years ago
8

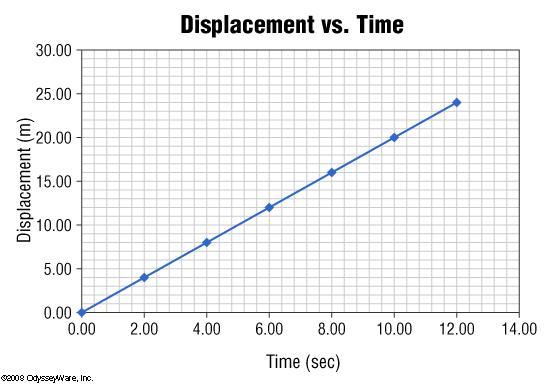

The slope of this graph is _____.

Physics
1 answer:
Artemon [7]2 years ago
6 0

The slope of the illustrated graph would give us the velocity of the object whose motion is plotted in the graph.

<h3>What is velocity?</h3>

Velocity refers to the rate of movement of objects along a particular line. In other words, the velocity of an object is the speed of the object in a specific direction relative to time.

Also, velocity = displacement/time.

In the graph, the slope is given by: Δy/Δx = displacement/time = velocity.

More on velocity can be found here: brainly.com/question/18084516

#SPJ1

You might be interested in
A 10-ohm resistor has a constant current. If 1200 C of charge flow through it in 4 minutes what
Amanda [17]

Answer:

B 5.0 A .

Explanation:

Hello.

In this case, since we know the charge (1200 C), time (4 min =240 s) and resistance (10Ω) which is actually not needed here, we compute the current as follows:

I=\frac{Q}{t}

Then, for the given data, we obtain:

I=\frac{1200C}{4min}*\frac{1min}{60s}\\\\I=5A

Therefore, answer is B 5.0 A .

Best regards!

4 0
3 years ago
Emmett is lifting a box vertically. Which forces are necessary for calculating the total force?
GrogVix [38]

When Emmett is lifting a box vertically, the forces that must be added to calculate the total force are: the gravitational force, tension force(the force exerted by Emmett to the box and the force exerted by the box to Emmett), and air resistance force.

4 0
3 years ago
You have gathered green turtle hatchlings from a beach where the magnetic field strength is 50 μT and the dip angle is 56∘. You
svet-max [94.6K]

Answer:

Explanation:

Angle of dip = 56° , magnetic field strength = 50μT

Vertical component = 50 x sin 56 = 41.45 μT

Horizontal component = 50 cos 56 = 27.96μT

New field is added in vertical downwards direction to increase the vertical component so as to increase the angle of dip . Let this field be B

total vertical field = B +  41.45

Horizontal component = 27.96

dip angle be θ

tanθ = vertical component / horizontal component

tan62 = B +  41.45 / 27.96

1.88 = B +  41.45 / 27.96

52.58 = B +  41.45

B = 11.13 μT

Since magnetic field has to be added , current should be clockwise when looked from above.

8 0
3 years ago
A solid cylinder of uniform density of 0.85 g/cm3 floats in a glass of water tinted light blue by food coloring.
SVEN [57.7K]

Each side has to have at least 44 horses

F61160 N. This is further explained below.

<h3>What is the force?</h3>

Generally, We are only interested in the component that operates horizontally since the vertical components all cancel each other out. The pressure difference works on the hemisphere to generate a normal force all over the surface, but we are only concerned with that force's horizontal component. This may be determined by supposing the hemispheres to be two flat circular plates of the same radius as the hemispheres that have been forced together.

Therefore, force is equal to pressure multiplied by area, which is

F= (970 -15 )( * (0.45 m)2)

F=60754 N for each side.

Therefore, each side has to have at least 44 horses

44* 1390 = 61160 N

Read more about force

brainly.com/question/13191643

#SPJ1

3 0
2 years ago
At t=0, a particle leaves the origin with a velocity of 9.0 m/s in the positive y direction and moves in the xy plane with a con
fiasKO [112]

Answer:

e.26m/s

Explanation:

Vf=Vi+at      (1)

Vf=9j+(2i-4j)t

X= X₀+at

now, in the i direction

15=O+2t or t=7.5 when x position is 15

Lets put that into the (1) equation, solve for Vf.

 Vf=9j+(2i-4j)7.5

Vf= 15i - 21j

Speed= \sqrt{xcomponent^2 + ycomponent^2}

Vf= 25.8 m/s

5 0
3 years ago
