Question

what image that is produced when the object is placed between the focal point and the lens. your statement must contain three characteristics (i.e., type, orientation, size, etc.) about the image to receive full credit. (10 points)

Answer 1

When the object is placed between the focal point and a convex lens, the image it produces contains these characteristics:

• Magnified
• Virtual
• Upright

A convex lens (converging lens) is a type of lens that is thicker at the center and thinner at the edges. It bends light from distant objects inward toward a point (focal point). A convex lens is generally used to correct farsightedness.

There's three rules for the ray path passing through convex lens

1. The ray coming parallel to the axis converged on the focus after passing the lens.
2. The ray coming passing the focus becomes parallel to the axis after passing the lens.
3. The ray that passes through the center of the lens goes straight without any direction change.

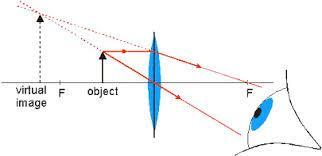

When those rules is applied to know how the image is produced when an object is placed between the focal point and the lens, you'd find out that the image produced is virtual (located on the same side as the object), upright, and magnified.
