Carbonyl sulfide has the chemical formula COS. Carbon has four valence electrons, and oxygen and sulfur each have six valence el
ectrons. Complete the Lewis structure for this covalent compound
2 answers:
Answer :
Lewis-dot structure : The Lewis-dot structure shows the bonding between the atoms of a molecule and it also shows the unpaired electrons present in the molecule.
The number of valence electrons are represented by 'dot'.
The given molecule is, Carbonyl sulfide (COS)
As we know that the carbon has '4' valence electrons, oxygen and sulfur has '6' valence electron.
Therefore, the total number of valence electrons in Carbonyl sulfide, = 4 + 6 + 6 = 16
According to Lewis-dot structure, there are 8 number of bonding electrons and 8 number of non-bonding electrons.

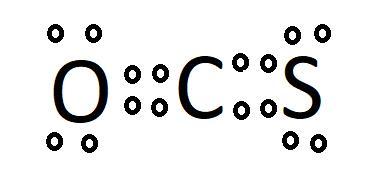

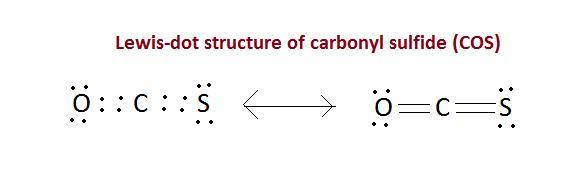

The Lewis-dot structure of carbonyl sulfide is shown below.
