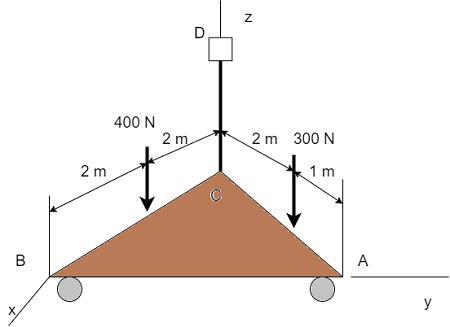

A plate is supported by a ball-and-socket joint at A, a roller joint at B, and a cable at C. How many unknown support reactions
are there in this problem?
1 answer:
Answer:
<em>There are five (5) unknown support reactions in this problem.</em>
Explanation:
A roller joint rotates and translates along the surface on which the roller rests. The resulting reaction force is always a single force that is perpendicular to, and away from, the surface. This allows the roller to move in a single plane along the surface where it rests.
A cable support provides support in one direction, parallel, and in opposite direction to the load on it. There exists a single reaction from the cable pointed upwards.
A ball-and-socket joint have reaction forces in all 3 cardinal directions. This allows it to move in the x-y-z plane.
The total unknown reactions on the member are five in number.
You might be interested in
Answer:
the magnitude of F_A is 752 N
the direction theta of F_A is 57.9°
Explanations:
Given that,
Resultant force = 1330 N in x direction
∑Fx = R
from the diagram of the question which i uploaded along with this answer
FB = 800 N
FAsin∅ + FBcos30 = 1330 N
FAsin∅ = 1330 - (800 × cos30)
FA = 637.18 / sin∅
Now ∑Fx = 0
FAcos∅ - FBsin30 = 0
we substitute for FA
(637.18 / sin∅)cos∅ = 800 × sin30
637.18 / 800 × sin30 = sin∅/cos∅
and we know that { sin∅/cos∅ = tan∅)
so tan∅ = 1.59295
∅ = 57.88° ≈ 57.9°
THEREFORE FROM THE EQUATION
FA = 637.18 / sin∅
we substitute ∅
so FA = 637.18 / sin57.88
FA = 752 N
Answer:
μb = 0.096
μc = 0.073
Explanation:
member AB:
-800( 4/3 ) + Nb (2) = 0
Nb (2) = 3200/3
Nb = 533.3N
Post BC:
summation of force along the y axis=0
Nc + Nb + 150(3/5 ) -50(9.81)=0
Nc + 533.3 + 150(3/5 ) -50(9.81)=0
Nc = 933.83 N
Also (-4/5)(150)(3) + Fb(0.7)= 0
Fb = (4/5)(150)(3)/0.7 = 51.429 N
Likewise alog the x axis,
4/5(150) - Fc -Fb = 0
4/5(150) - Fc -51.429 = 0
Fc = 4/5(150) -51.429 =68.571 N
μb = Fb/Nb = 51.429/533.3 = 0.096
μc = Fc/Nc = 68.571 / 933.83 = 0.073
Answer:
Gs = 2.647
e = 0.7986
Explanation:
We know that moist unit weight of soil is given as
where, = moist unit weight of the soil
Gs = specific gravity of the soil
S = degree of saturation
e = void ratio
= unit weight of water = 9.81 kN/m3
From data given we know that:
At 50% saturation,
puttng all value to get Gs value;
Gs - 1.194*e = 1.694 .........(1)
for saturaion 75%, unit weight = 17.71 KN/m3
Gs - 1.055*e = 1.805 .........(2)
solving both equations (1) and (2), we obtained;
Gs = 2.647
e = 0.7986
