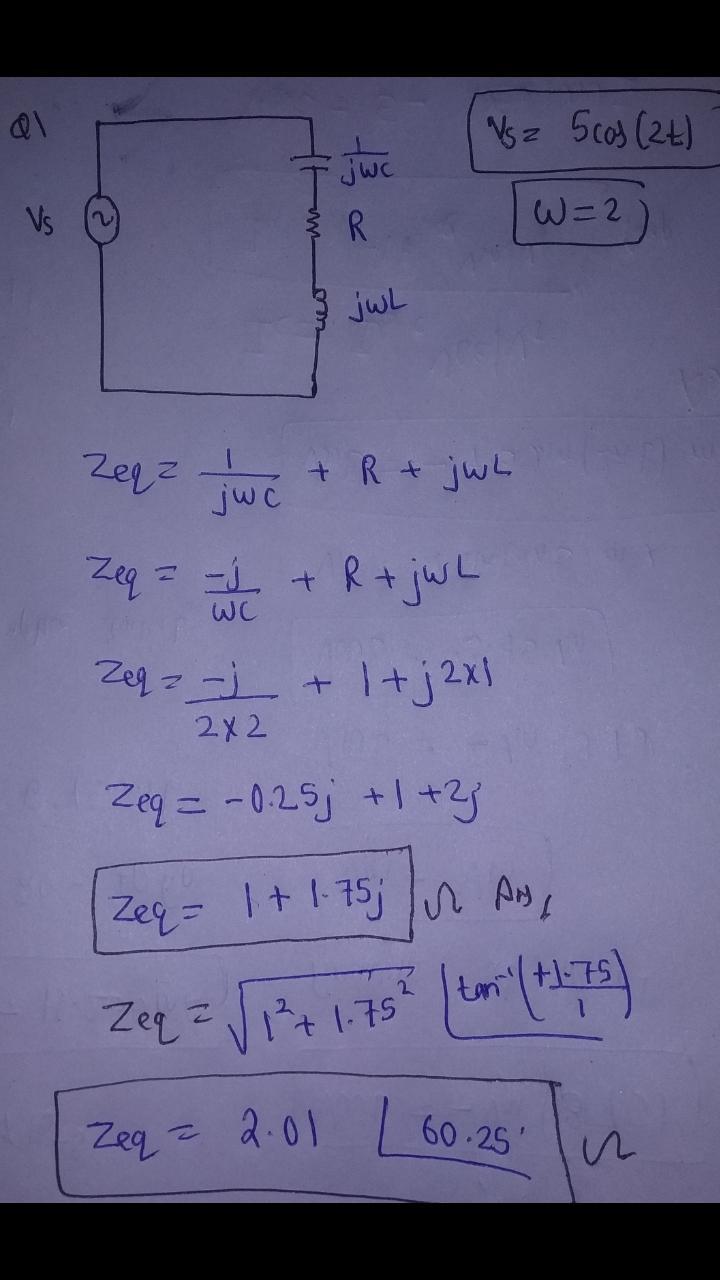

Find the equivalent impedance Zeq seen by the source when Vs = 5 cos (2t) v, C = 2 F, R = 1 Ω and L = 1 H. (Give angles in degre
es and round final answers to two decimal places.) Calculate the voltage across the resistor. (Give angles in degrees and round final answers to two decimal places.) The equivalent impedance seen by the source is + j Ω = at an angle of Ω. The voltage across the resistor is at an angle of v.
1 answer:
You might be interested in
Answer:
The stress level at which fracture will occur for a critical internal crack length of 6.2mm is 135.78MPa
Explanation:
Given data;
Let,
critical stress required for initiating crack propagation Cc = 112MPa
plain strain fracture toughness = 27.0MPa
surface length of the crack = a
dimensionless parameter = Y.
Half length of the internal crack, a = length of surface crack/2 = 8.8/2 = 4.4mm = 4.4*10-³m
Also for 6.2mm length of surface crack;
Half length of the internal crack = length of surface crack/2 = 6.2/2 = 3.1mm = 3.1*10-³m
The dimensionless parameter
Cc = Kic/(Y*√pia*a)
Y = Kic/(Cc*√pia*a)
Y = 27/(112*√pia*4.4*10-³)
Y = 2.05
Now,
Cc = Kic/(Y*√pia*a)
Cc = 27/(2.05*√pia*3.1*10-³)
Cc = 135.78MPa
The stress level at which fracture will occur for a critical internal crack length of 6.2mm is 135.78MPa
For more understanding, I have provided an attachment to the solution.
To solve this problem we will proceed to calculate the specific volume from the area of the cylinder and the sensitivity. Later we will calculate the volumetric coefficient of thermal expansion and finally we will be able to calculate the volume through the relation of the two terms mentioned above. Our values are
Let's start by calculating the specific volume which is given by
Here,
d = Diameter
= Sensitivity
Replacing our values we have
Now we will obtain the value of the volumetric coefficient of thermal expansion of mercury through the differential expansion coefficient of Hg whic is three times, then
Finally the relation to calculate the volume the bulb must is
Therefore the volume that the bulb must have is
Answer:
Gs = 2.647
e = 0.7986
Explanation:
We know that moist unit weight of soil is given as
where, = moist unit weight of the soil
Gs = specific gravity of the soil
S = degree of saturation
e = void ratio
= unit weight of water = 9.81 kN/m3
From data given we know that:
At 50% saturation,
puttng all value to get Gs value;
Gs - 1.194*e = 1.694 .........(1)
for saturaion 75%, unit weight = 17.71 KN/m3
Gs - 1.055*e = 1.805 .........(2)
solving both equations (1) and (2), we obtained;
Gs = 2.647
e = 0.7986
