A 30 mm thick AISI 1020 steel plate is sandwiched between two 10 mm thick 2024-T3 aluminum plates and compressed with a bolt and

nut. The bolt is M10 × 1.5 and the length of the bolt is 60 mm. Determine: a) Bolt stiffness (Note: Convert GPa to MPa. 1 GPA = 1000 MPa):
Engineering
1 answer:
denis-greek [22]3 years ago
5 0

Answer:

275 MPa

Explanation:

Regardless of what it is holding, the stiffness of a bolt depends on its own material properties and geometry.

The stiffness is:

k = E * \frac{A}{l}

I assume this one is made of steel, because regular bolts are steel.

The Young's modulus for steel is E = 210 GPa

The longitude is given. (But note that in a real application you have to consider the length up to the nut.)

The section is (using the nominal diameter of 10 mm)

A = \frac{\pi * d^2}{4} = \frac{\pi * 0.01^2}{4} = 7.85e-5 m^2

Then:

k  = 2.1e11 * \frac{7.85e-5}{0.06} = 275e6 Pa = 275 MPa

You might be interested in
Water flows at a rate of 10 gallons per minute in a new horizontal 0.75?in. diameter galvanized iron pipe. Determine the pressur
ruslelena [56]

Answer:

\frac{\delta p }{l} = 30.4 lb/ft^3

Explanation:

Given data:

flow rate = 10 gallon per  minute = 0.0223 ft^3/sec

diameter = 0.75 inch

we know discharge is given as

Q =  VA

solve for velocity V = \frac{Q}{A}[/tex]

V = \frac{0.223}{\frac{\pi}{4} \frac{0.75}{12}}

V = 7.27 ft/sec

we know that Reynold number

Re = \frac{VD}{\nu}

Re = \frac{7.27 \times \frac{0.75}{12}}{1.21\times 10^{-5}}

Re = 3.76 \times 10^4

calculate the \frac{\epsilon }{D}ratio to determine the fanning friction f

\frac{\epsilon }{D} = \frac{0.0005}{\frac{0.75}{12}} = 0.008

from moody diagram f value corresonding to Re and \frac{\epsilon }{D}is 0.037

for horizontal pipe

\delta p = \frac{f l \rho v^2}{2D}

\frac{\delta p }{l} = \frac{1 \times 0.037 \times 1.94 \times 7.27}{\frac{0.75}{12}}

where 1.94 slug/ft^3is density of  water

\frac{\delta p }{l} = 30.4 lb/ft^3

3 0
3 years ago
Find the differential and evaluate for the given x and dx: y=sin2xx,x=π,dx=0.25
Sedaia [141]

By applying the concepts of differential and derivative, the differential for y = (1/x) · sin 2x and evaluated at x = π and dx = 0.25 is equal to 1/2π.

<h3>How to determine the differential of a one-variable function</h3>

Differentials represent the <em>instantaneous</em> change of a variable. As the given function has only one variable, the differential can be found by using <em>ordinary</em> derivatives. It follows:

dy = y'(x) · dx     (1)

If we know that y = (1/x) · sin 2x, x = π and dx = 0.25, then the differential to be evaluated is:

y' = -\frac{1}{x^{2}}\cdot \sin 2x + \frac{2}{x}\cdot \cos 2x

y' = \frac{2\cdot x \cdot \cos 2x - \sin 2x}{x^{2}}

dy = \left(\frac{2\cdot x \cdot \cos 2x - \sin 2x}{x^{2}} \right)\cdot dx

dy = \left(\frac{2\pi \cdot \cos 2\pi -\sin 2\pi}{\pi^{2}} \right)\cdot (0.25)

dy = \frac{1}{2\pi}

By applying the concepts of differential and derivative, the differential for y = (1/x) · sin 2x and evaluated at x = π and dx = 0.25 is equal to 1/2π.

To learn more on differentials: brainly.com/question/24062595

#SPJ1

4 0
2 years ago
A teacher tells her​ students, "When you do your math homework​ assignments, you must use white lined paper.​ Please, no​ tear-o
Sindrei [870]

Answer:

The white lined paper

Explanation:

The teacher is most likely putting the while line paper in jeopardy because of the detail process involved in taking care of the paper prior to the submission of the home work.

The fact that a mistake must not be visible due to the instruction of every erasures being thorough and clean.  this can cause jeopardy to the paper.

8 0
3 years ago
Pumped-storage hydroelectricity is a type of hydroelectric energy storage used by electric power systems for load balancing. The
NikAS [45]

Answer:

A) energy loss E = pgQtH

Where p = density in kg/m3

g = gravity acceleration in m/s2

Q = flow rate in m3/s

t = time taken for flow in sec

H = height of flow in m

B) power required to run pump;

P = pgQH

Explanation:

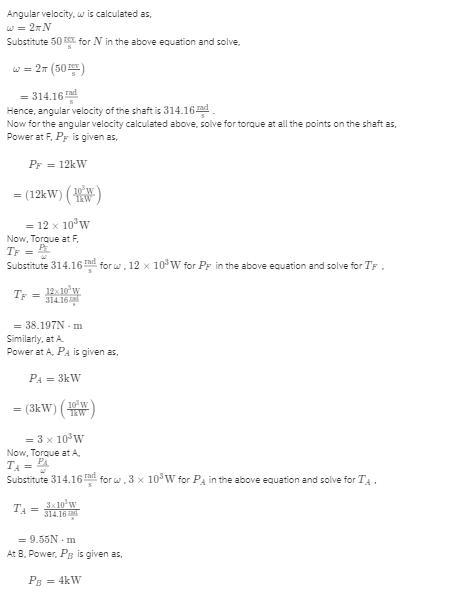

Detailed explanation and calculation is shown in the image below

5 0
3 years ago
If a 9V battery produces a current of 3 A through a load, what is the resistance of the load
Elden [556K]

3 ohms hope this helps :D ❤

7 0
2 years ago
Read 2 more answers
