Design an inverting amplifier that has a gain of -47 (this gain is negative). Pick resistor values that you have in the lab kit.

Include a schematic of this circuit with the component values labeled with your completed prelab.

1 answer:

Nostrana [21]3 years ago

7 0

Answer:

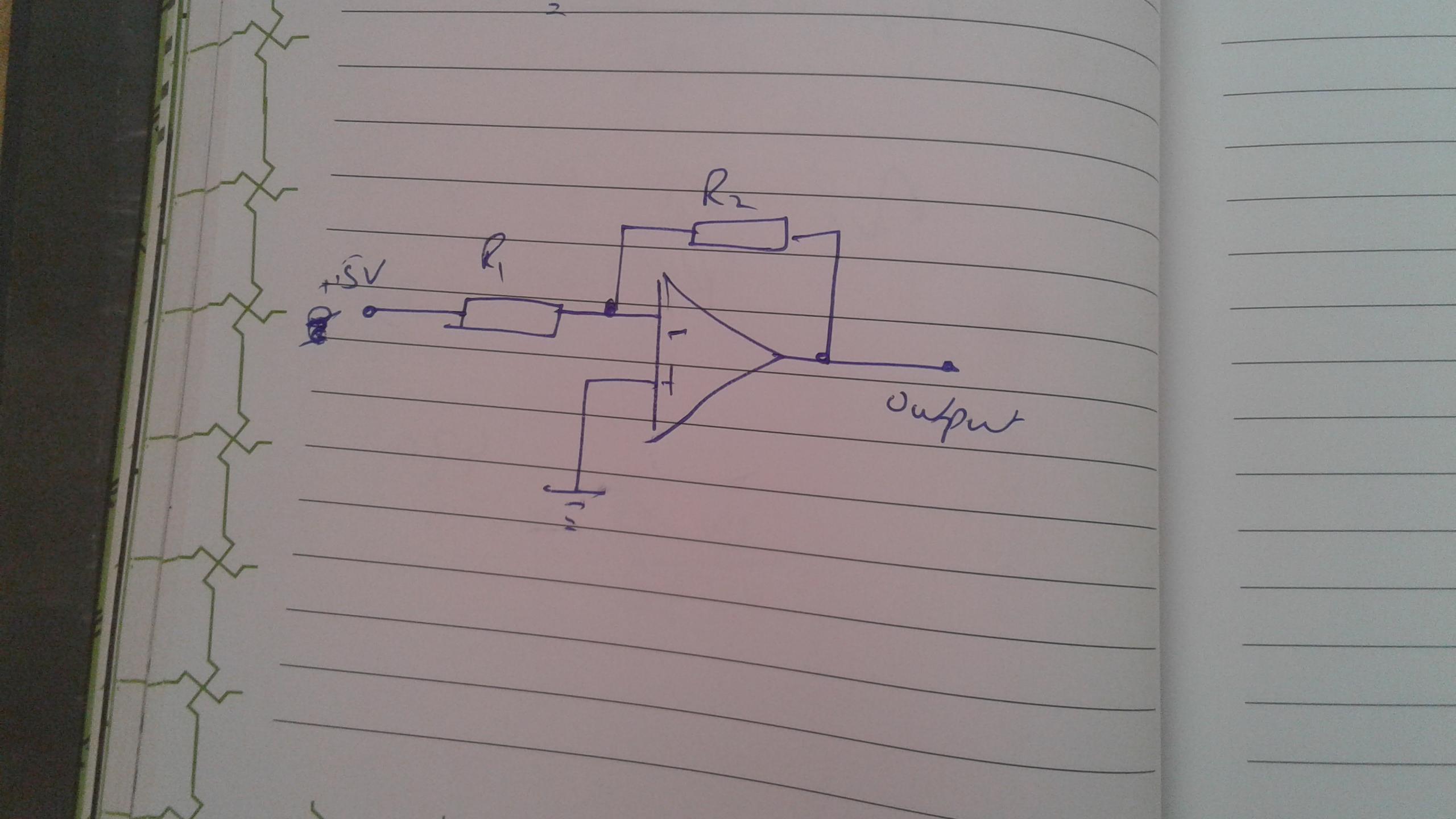

R2= 470 ohms R1= 10ohms. Schematic is attached

Explanation:

Av=-(R2/R1)

-47=-(470/10)

-47=-47
