A physics instructor wants to project a spectrum of visible light colors from 400nm to 700nm as part of a classroom demonstratio

n. She shines a beam of white light through a diffraction grating that has 500 lines per mm, projecting a pattern on a screen 2.4 m behind the grating.
a) how wide is the spectrum the corresponds to m=1?

b. How much distance separates the end of the m=1 spectrum and the start of m= 2 spectrum?

Physics
1 answer:
kondaur [170]3 years ago
4 0

Answer:

a) 0.407 m

b) 0.1504 m

Explanation:

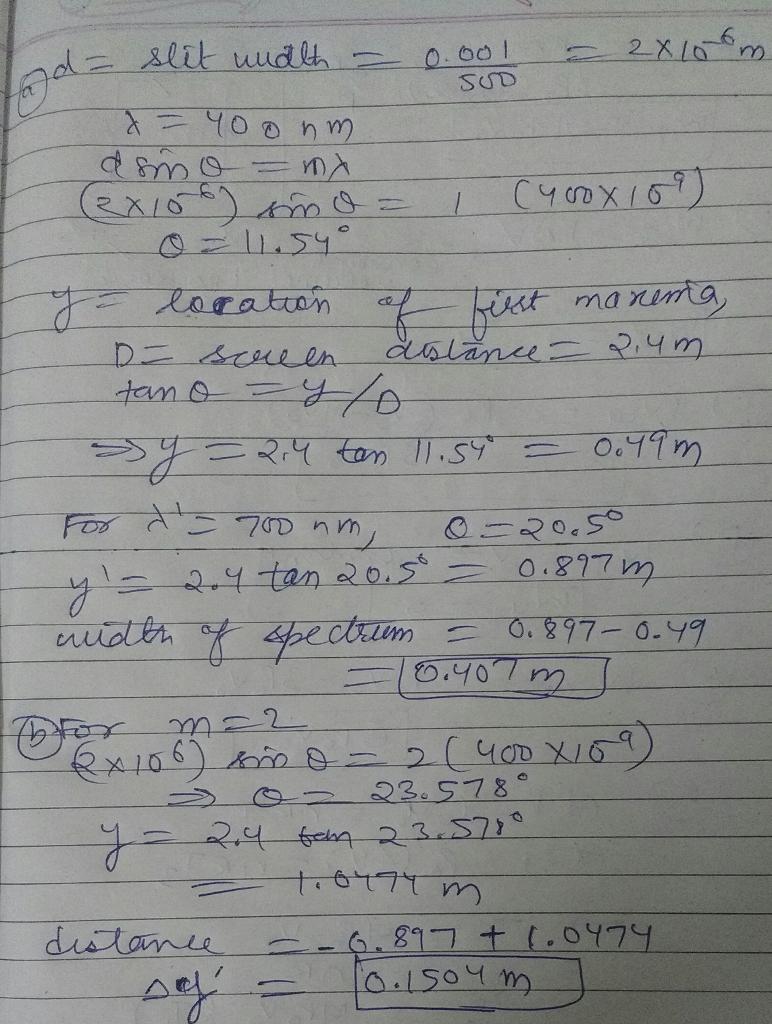

see attached picture.

You might be interested in
(01.06 MC)
Cerrena [4.2K]

Answer:

c

Explanation:

7 0
3 years ago
Relay of thermostate is not working why
Colt1911 [192]

Check the power source. Your thermostat may just not be connected right or at all. A blown fuse, tripped circuit breaker or dead batteries will prevent the thermostat from turning on your furnace.

Dirty thermostat? That’ll cause issues. Clean up any dust, dirt, spider webs and other debris. Any of these things can coat the inside of the thermostat and interfere with both electrical and mechanical functions of the thermostat. Put this on your get-ready-for-winter cleaning list. Just use a soft, clean brush to clean the inside components gently. Don’t get anything wet. Also you can use a can of compressed air, such as is used for electronics, to clear debris.

Check for any loose wires or terminal screws inside the thermostat. Make sure wires aren’t corroded or detached. Never remove the thermostat cover without removing the batteries or turning off the power at the fuse or breaker box. Tighten screws and secure loose wires if needed.

It may be time to replace your thermostat is it’s old. They aren’t meant to last forever and an old thermostat may be costing you a lot of money in wasted energy and time spent tinkering with an outdated model. There are great programmable thermostats available now that are easy to use and simple to connect to your existing HVAC system. Click here for more info on programmable thermostats.

7 0
3 years ago
Which statement is a characteristic of a concave lens
Free_Kalibri [48]

<em>"A concave lens is thinner at the center than it is at the edges."</em>

If this isn't on the list of choices, that's tough.  We can't help you choose the best one if we don't know what any of them is.

5 0
3 years ago
Solve 1 for x if a=-9.8, v=2.7, and t= 35​
aliina [53]

Explanation:

x=VT+at²/2

x=2.7x35+9.8x(35)²/2

x=6097

6 0
4 years ago
Read 2 more answers
When the switch in the drawing is closed, the current in the coil increases to its equilibrium value. While the current is incre
Crazy boy [7]

Answer:

the previous correct answer is b

Explanation:

When the circuit is closed in the system, a current is induced that follows the lenz law, which opposes the change that is occurring and therefore the coil increases and the idicidal current in the ring must reach the maximum oppositing is the current of the coil, so quiet force is repulsion

Consequently, the previous correct answer is b

3 0
3 years ago
