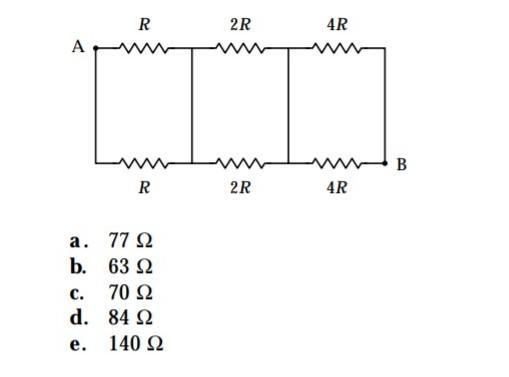

If R = 20 Ω, what is the equivalent resistance between points A and B in the figure?
1 answer:
Answer:
c. 70 Ω
Explanation:
The R and R resistors are in parallel. The 2R and 2R resistors are in parallel. The 4R and 4R resistors are in parallel. Each parallel combination is in series with each other. Therefore, the equivalent resistance is:
Req = 1/(1/R + 1/R) + 1/(1/2R + 1/2R) + 1/(1/4R + 1/4R)
Req = R/2 + 2R/2 + 4R/2
Req = 3.5R
Req = 70Ω
You might be interested in
Answer:
0.384c
Explanation:
To find the speed of the pursuit ship relative to the cruiser you use the following relativistic equation:
u': relative speed
u: speed of the pursuit ship = 0.8c
v: speed of the cruiser = 0.6c
c: speed of light
You replace the values of the parameters to obtain u':
Hence, the relative speed is 0.384c
