mrs_skeptik [129]
3 years ago
4

A specimen of a ceramic material having an elastic modulus of 250 GPa is pulled in tension with a stress of 750 MPa. Will the sp

ecimen fail if its ""most severe flaw"" is an internal crack that has a length of 0.20 mm and a tip radius of curvature of 0.001 mm? Why or why not?

Engineering
1 answer:
cestrela7 [59]3 years ago
7 0

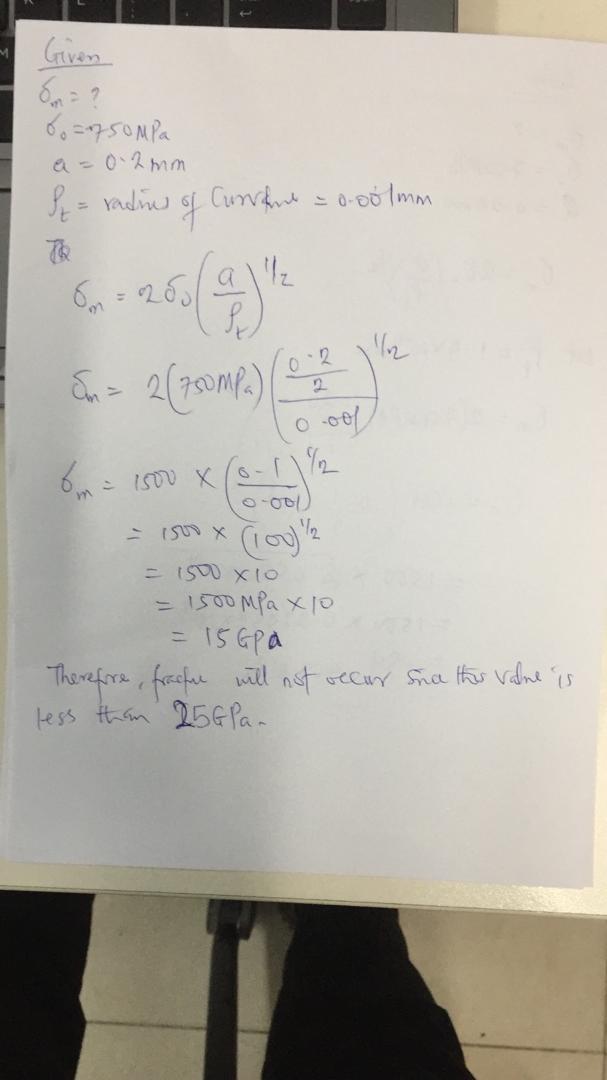

Answer:Check the attached

Explanation:
