Question

The shaft is made of A992 steel. It has a diameter of 1 in. and is supported by bearings at A and D, which allows free rotation. For A992 steel, G = 11 × 103 ksi. (1) Determine the angle of twist of B with respect to D.(2) Determine the angle of twist of C with respect to D.Answer unit: degree or radians, two decimal places

Answer 1

Answer:

the angle of twist of B with respect to D is -1.15°

the angle of twist of C with respect to D is 1.15°

Explanation:

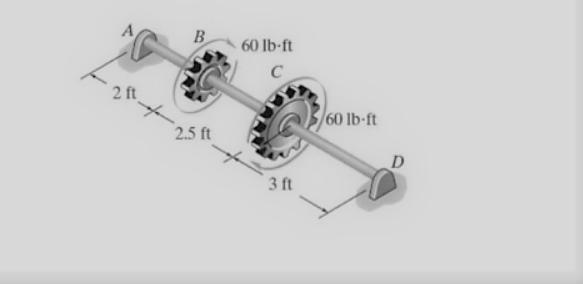

The missing diagram that is supposed to be added to this image is attached in the file below.

From the given information:

The shaft is made of A992 steel. It has a diameter of 1 in and is supported by bearing at A and D.

For the Modulus of Rigidity  G = 11 × 10³ Ksi =  11 × 10⁶ lb/in²

The objective are :

1) To determine the angle of twist of B with respect to D

Considering the Polar moment of Inertia at the shaft $J\tau$

shaft $J\tau$ = $\dfrac{\pi}{2}r^4$

where ;

r = 1 in /2

r = 0.5 in

shaft $J \tau$ = $\dfrac{\pi}{2} \times 0.5^4$

shaft $J\tau$ = 0.098218

Now; the angle of twist at  B with respect to D  is calculated by using the expression

$\phi_{B/D} = \sum \dfrac{TL}{JG}$

$\phi_{B/D} = \dfrac{T_{CD}L_{CD}}{JG}+\dfrac{T_{BC}L_{BC}}{JG}$

where;

$T_{CD} \ \ and \ \ L_{CD}$ are the torques at segments CD and length at segments CD

${T_{BC} \ \ and \ \ L_{BC}}$ are the torques at segments BC and length at segments BC

Also ; from the diagram; the following values where obtained:

$L_{BC}}$ = 2.5  in

$J\tau$ = 0.098218

G =  11 × 10⁶ lb/in²

$T_{BC$ = -60 lb.ft

$T_{CD$ = 0 lb.ft

$L_{CD$ = 5.5 in

$\phi_{B/D} = 0+ \dfrac{[(-60 \times 12 )] (2.5 \times 12 )}{ (0.9818)(11 \times 10^6)}$

$\phi_{B/D} = \dfrac{[(-720 )] (30 )}{1079980}$

$\phi_{B/D} = \dfrac{-21600}{1079980}$

$\phi_{B/D} =$ − 0.02 rad

To degree; we have

$\phi_{B/D} = -0.02 \times \dfrac{180}{\pi}$

$\mathbf{\phi_{B/D} = -1.15^0}$

Since we have a negative sign; that typically illustrates that the angle of twist is in an anti- clockwise direction

Thus; the angle of twist of B with respect to D is 1.15°

(2) Determine the angle of twist of C with respect to D.Answer unit: degree or radians, two decimal places

For  the angle of twist of C with respect to D; we have:

$\phi_{C/D} = \dfrac{T_{CD}L_{CD}}{JG}+\dfrac{T_{BC}L_{BC}}{JG}$

$\phi_{C/D} = 0+\dfrac{T_{BC}L_{BC}}{JG}$

$\phi_{B/D} = 0+ \dfrac{[(60 \times 12 )] (2.5 \times 12 )}{ (0.9818)(11 \times 10^6)}$

$\phi_{C/D} = \dfrac{21600}{1079980}$

$\phi_{C/D} =$ 0.02 rad

To degree; we have

$\phi_{C/D} = 0.02 \times \dfrac{180}{\pi}$

$\mathbf{\phi_{C/D} = 1.15^0}$
