. Determine the horizontal and vertical components of reaction at the hinge A and the horizontal reaction at the smooth surface

B caused by the water pressure. The plate has a width of 4 ft. Start your solution by presenting the appropriate FBD. rhow = 1.94 slug/ft3 .

Physics
1 answer:
yan [13]4 years ago
6 0

Answer:

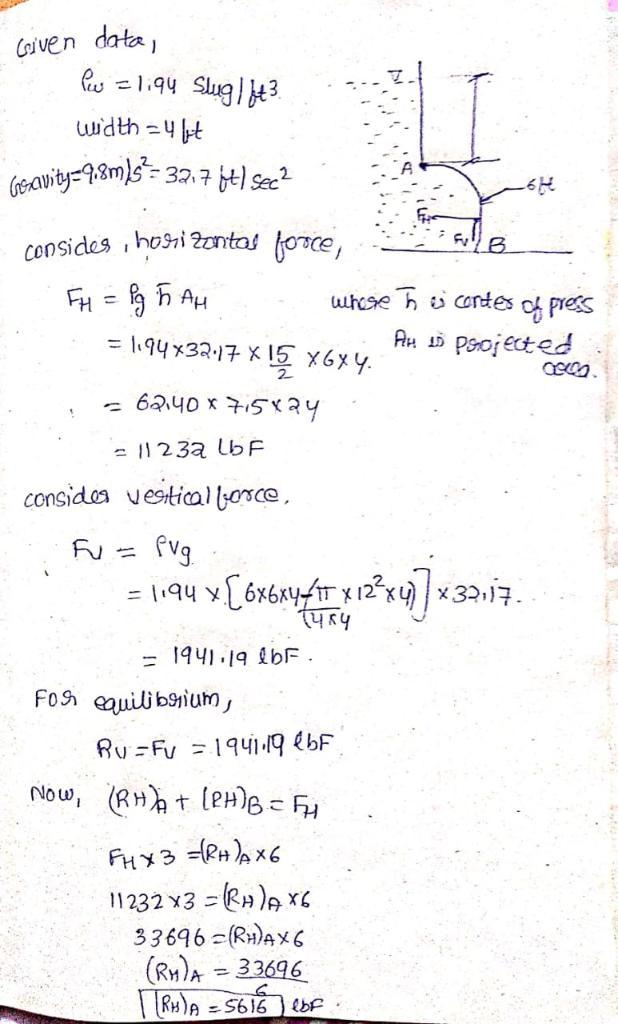

Please find attached file for complete answer solution and explanation of same question.

Explanation:

You might be interested in
The less mass an object has, the --- its gravitational f
BaLLatris [955]

Answer:

<em>The less mass an object has, the </em><u>less</u><em> its gravitational  [force.]</em>

Explanation:

Newton's Law of Gravity states that F_G=\frac{Gm_1m_2}{r^{2}}. The two <em>m</em> values are the objects' masses, G is the gravitational constant, and <em>r</em> is the distance between the objects' centers. Notice how the mass values are in the fraction's <em>numerator</em>? That means <em>increasing</em> the mass of one or both objects <em>increases</em> F_G. That also implies the inverse; <em>decreasing</em> the mass of one or both objects <em>decreases</em> F_G!

I hope this helps you understand this concept a little more! Have yourself a fantastic day, 'kay?

4 0
3 years ago
A magnetic field has a magnitude of 0.078 T and is uniform over a circular surface whose radius is 0.10 m. The field is oriented
oee [108]

Answer:

Magnetic flux, \phi=2.22\times 10^{-3}\ Wb

Explanation:

It is given that,

Magnitude of the magnetic field, B = 0.078 T

Radius of circular loop, r = 0.1 m

The field is oriented at an angle of θ = 25° with respect to the normal to the surface. The magnetic flux through the surface is given by :

\phi=BA\ cos\theta

\phi=0.078\times \pi \times (0.1)^2\ cos(25)

\phi=0.00222\ Wb

or

\phi=2.22\times 10^{-3}\ Wb

So, the magnitude of magnetic flux through the surface is 2.22\times 10^{-3}\ Wb. Hence, this is the required solution.

4 0
4 years ago
Who was executed for believing that Earth revolves around the sun?
Tomtit [17]
According to research, none of these men were executed for believing that Earth revolves around the sun. Nicolaus Copernicus was the first to believe in the heliocentric view of the current solar system, but he was not killed for that view, but he died of natural means. Galileo Galilei was punished because of the heliocentric view but was only put under house arrest, and not killed. Giordano Bruno was indeed burned at stake, but it was not for his view on heliocentrism.
4 0
4 years ago
How do the magnitudes of the inertial (the density times acceleration term), pressure, and viscous terms in the Navier-Stokes eq
Troyanec [42]

Answer:

The general equation of movement in fluids is obtained from the application, at fluid volumes, of the principle of conservation of the amount of linear movement. This principle establishes that the variation over time of the amount of linear movement of a fluid volume is equal to that resulting from all forces (of volume and surface) acting on it. Expressed in This equation is called the Navier-Stokes equation.

The equation is shown in the attached file

Explanation:

The derivative of velocity with respect to time determines the change in the velocity of a particle of the fluid as it moves in space. It also includes convective acceleration, expressed by a nonlinear term that comes from convective inertia forces). With this equation, Stokes studied the motion of an infinite incompressible viscous fluid at rest at infinity, and in which a solid sphere of radius r makes a rectilinear and uniform translational motion of velocity v. It assumes that there are no external forces and that the movement of the fluid relative to a reference system on the sphere is stationary. Stokes' approach consists in neglecting the nonlinear term (associated with inertial forces due to convective acceleration).

Download pdf
5 0
4 years ago
A 2.80 kg mass is dropped from a height of 4.50 m. Find its potential energy when it reaches the ground.
marshall27 [118]

Answer:

123.48J

Explanation:

Given parameters:

Mass of the ball  = 2.8kg

Height  = 4.5m

Unknown:

Potential energy  = ?

Solution:

The potential energy is the energy due to the position of a body. It is mathematically given as;

      P.E   =  mgh

m is the mass

g is the acceleration due to gravity

h is the height

 Now insert the parameters and solve;

          P.E  = 2.8 x 4.5 x 9.8  = 123.48J

5 0
3 years ago
