To measure the effective coefficient of friction in a bone joint, a healthy joint (and its immediate surroundings) can be remove
d from a fresh cadaver. The joint is inverted, and a weight is used to apply a downward force F⃗ d on the head of the femur into the hip socket. Then, a horizontal force F⃗ h is applied and increased in magnitude until the femur head rotates clockwise in the socket. The joint is mounted in such a way that F⃗ h will cause clockwise rotation, not straight-line motion to the right. The friction force will point in a direction to oppose this rotation. Draw vectors indicating the normal force n⃗ (magnitude and direction) and the frictional force (direction only) acting on the femur head at point A. Assume that the weight of the femur is negligible compared to the applied downward force.
1 answer:
Answer:

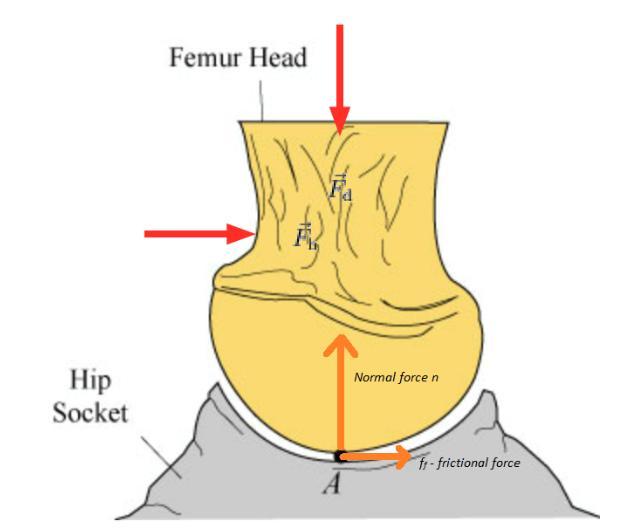

See the attached drawing
Explanation:
Consider that the magnitude of the downward force will be equal although in opposite direction to the normal force n as shown in the diagram. During the rotation of the bone in clockwise direction, there will be frictional force which will counter the motion. Therefore, the frictional force will apply towards the right in order to oppose motion at point A as shown.
You might be interested in
Answer:
N_c = 3.03 N
F = 1.81 N
Explanation:
Given:
- The attachment missing from the question is given:
- The given expressions for the radial and θ direction of motion:
r = 0.5*θ
θ = 0.5*t^2 ...... (correction for the question)
- Mass of peg m = 0.5 kg
Find:
a) Determine the magnitude of the force of the rod on the peg at the instant t = 2 s.
b) Determine the magnitude of the normal force of the slot on the peg.
Solution:
- Determine the expressions for radial kinematics:
dr/dt = 0.5*dθ/dt
d^2r/dt^2 = 0.5*d^2θ/dt^2
- Similarly the expressions for θ direction kinematics:
dθ/dt = t
d^2θ/dt^2 = 1
- Evaluate each at time t = 2 s.
θ = 0.5*t^2 = 0.5*2^2 = 2 rad -----> 114.59°
r = 1 m , dr / dt = 1 m/s , d^2 r / dt^2 = 0.5 m/s^2
- Evaluate the angle ψ between radial and horizontal direction:
tan Ψ = r / (dr/dθ) = 1 / 0.5
Ψ = 63.43°
- Develop a free body diagram (attached) and the compute the radial and θ acceleration:
a_r = d^2r / dt^2 - r * dθ/dt
a_r = 0.5 - 1*(2)^2 = -3.5 m/s^2
a_θ = r * (d^2θ/dt^2) + 2 * (dr/dt) * (dθ/dt)
a_θ = 1(1) + 2*(1)*(2) = 5 m/s^2
- Using Newton's Second Law of motion to construct equations in both radial and θ directions as follows:
Radial direction: N_c * cos(26.57) - W*cos(24.59) = m*a_r
θ direction: F - N_c * sin(26.57) + W*sin(24.59) = m*a_θ
Where, F is the force on the peg by rod and N_c is the normal force on peg by the slot. W is the weight of the peg. Using radial equation:
N_c * cos(26.57) - 4.905*cos(24.59) = 0.5*-3.5
N_c = 3.03 N
F - 3.03 * sin(26.57) + 4.905*sin(24.59) = 0.5*5
F = 1.81 N
