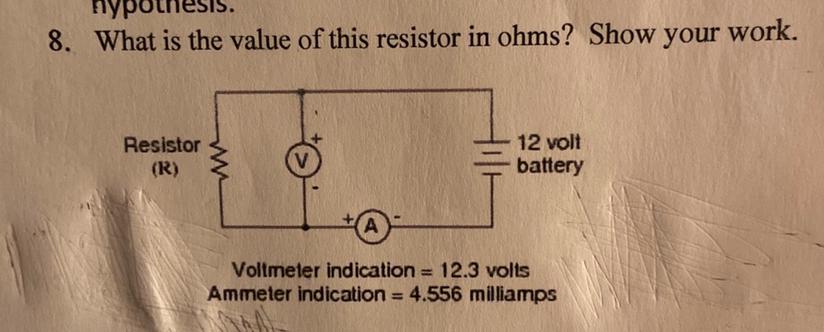

Will give the first answer brainliest. Picture attached.

Physics

1 answer:

mylen [45]3 years ago

4 0

Answer:

2699.73661Ω or 2.697kΩ

Explanation:

$V=IR$

So...

$R=\frac{V}{I}$

So...

$\frac{12.3}{0.004556} = 2699.73661$ Ω

This is the answer, but the resistance is much too high for a circuit like this

You might be interested in

Describe a skydivers jump from the airplane to the ground

Step2247 [10]

Gravity pulling them down kinetic and potential energy

8 0

3 years ago

Cliff divers at Acapulco jump into the sea from a cliff 37.1 m high. At the level of the sea, a rock sticks out a horizontal dis

Stella [2.4K]

Answer:

$v_x = 4.87 m/s$

Explanation:

Height of the cliff is given as

$h = 37.1 m$

now the time taken by the diver to hit the surface is given as

$h = \frac{1}{2}gt^2$

$37.1 = \frac{1}{2}(9.8)t^2$

$t = 2.75 s$

Now in the same time it has to cover a distance of 13.39 m

so the speed in horizontal direction is given as

$v_x = \frac{x}{t}$

$v_x = \frac{13.39}{2.75}$

$v_x = 4.87 m/s$

3 0

4 years ago

Recall that impulse = momentum (FAt = Ap and that Ap is just mx v). How long (time) must a group of people pull with a force of

elixir [45]

The time taken for the group of people to pull the car, giving it a velocity of 1.5 m/s is 3.75 s

Momentum is simply defined as the product of mass and velocity i.e

Momentum = mass × velocity

To answer the question given, we'll begin by calculating the change in momentum. This can be obtained as follow:

Mass = 1500 Kg

Initial velocity (u) = 0 m/s

Final velocity (v) = 1.5 m/s

<h3>Change in momentum =? </h3>

Change in momentum = m(v – u)

Change in momentum = 1500 (1.5 – 0)

Change in momentum = 1500 × 1.5

<h3>Change in momentum = 2250 Kg•m/s</h3>

Finally, we shall determine the time

Change in momentum = 2250 Kg•m/s

Force (F) = 600 N

Impulse = Ft = change in momentum

FT = change in momentum

600 × t = 2250

Divide both side by 600

t = 2250 / 600

Thus, the time required is 3.75 s

Learn more on momentum and impulse: brainly.com/question/14486244

6 0

2 years ago

Steam at 400C has a specific volume of 0.02m3/kg. Determine the pressure of the steam based on a) the ideal gas equation b) the

nikklg [1K]

Answer:

by ideal gas pressure = 15529.475 kPa

by compressibility chart pressure = 12576 kPa

by steam tables Pressure = 12517 kPa

Explanation:

given data

temperature T = 400°C = 673 K

volume v = 0.02 m³/kg

to find out

pressure by ideal gas, compressibility chart and steam tables

solution

we know here by table

gas constant R is 0.4615 kJ/ kg-K

and critical temp Tc = 647.1 K

and critical pressure Pc = 22064 kPa

so by ideal gas pressure is

pressure = R×T / v

pressure = 0.4615 × 673 / 0.02

pressure = 15529.475 kPa

and

by compressibility chart

temperature reduce is = T/ Tc

temperature reduce Tr = 673 / 647.1

Tr = 1.040 K

so pseudo reduce volume is here

reduce volume Vr = v / ( RTc/Pc)

reduce volume Vr = $\frac{0.02}{\frac{461.5(647.1)}{22064*10^{3} } }$

0.02 / ( 461.5(647.1) / 22064×10³)

reduce volume = 1.48

and we know by compressibility chart

reduce pressure Pr is 0.57

pressure = Pr × Pc

pressure = 0.57 × 22064 × 10³

pressure = 12576 kPa

and

from steam table

pressure is 12.5 MPa at 673 K and 0.020030 m³/kg

pressure is 15 MPa at 673 K and 0.015671 m³/kg

pressure P is

$\frac{0.02 - 0.020030}{0.015671 - 0.020030}$ = $\frac{ P - 12.5}{15 - 12.5}$

Pressure = 12517 kPa

4 0

3 years ago

Explain why the speed of light is lower than 3.0 × 108 m/s as it goes through different media.

alexandr1967 [171]

Answer:

air or vacuum is the least refractive index medium of most rare medium

all other medium has more value of refractive index and hence the speed will be less than the speed of the air

Explanation:

As we know that speed of light in any medium and speed of light in air is related to each other by the equation

$v = \frac{c}{\mu}$

here we know that

$c = 3 \times 10^8 m/s$

[tex]\mu [tex] = refractive index of the medium

so we know that air or vacuum is the least refractive index medium of most rare medium

all other medium has more value of refractive index and hence the speed will be less than the speed of the air

4 0

3 years ago

Read 2 more answers
