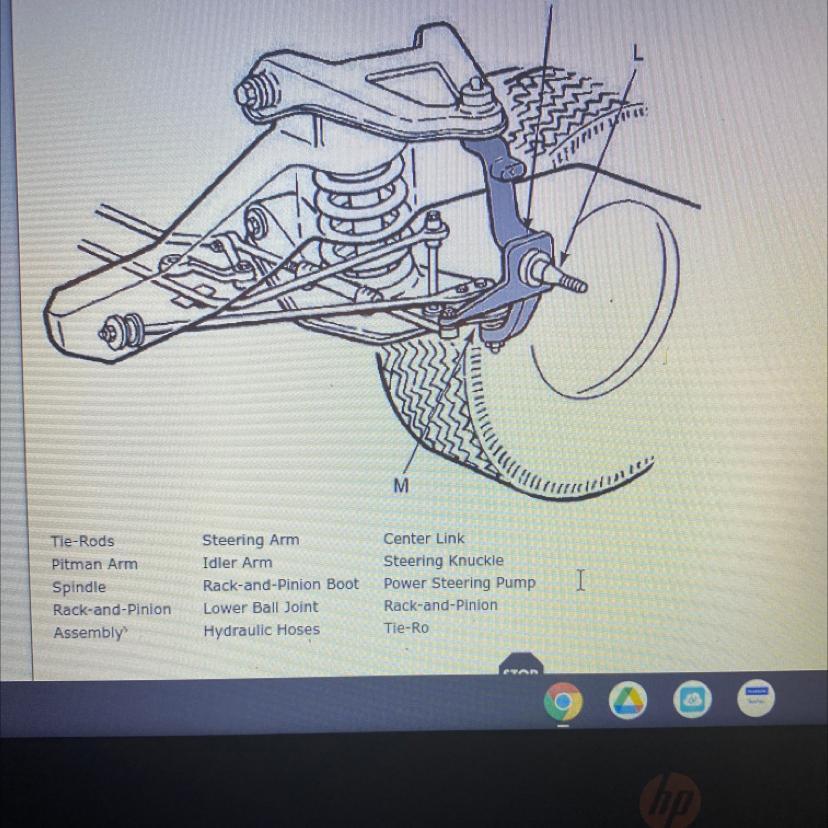

Can someone put each letter by the correct word for my automotive class !

1 answer:

Oksana_A [137]3 years ago

6 0

Answer:

L = spindle

M = lower ball joint

part without the letter showing = steering knuckle

Explanation:
