Question

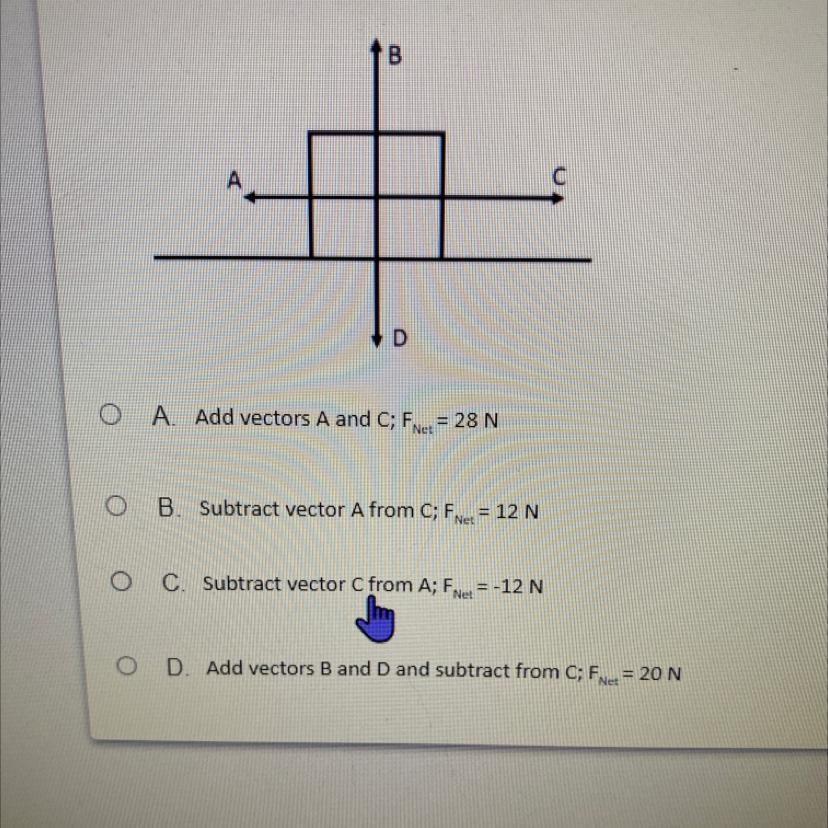

A man is trying to push a 250 N dresser across his carpeted bedroom. He applies a force of 20 N and the carpet provides a frictional force of 8N. Which vectors represented in the diagram below will you need to consider and what will be the resulting net force?

Answer 1

Answer:

The correct option is;

B. Subtract vectors A from C; $F_{Net}$ = 12 N

Explanation:

The given parameters are;

The weight of the dresser = 250 N

The force applied by the man = 20 N = C

The frictional force provided by the carpet = 8 N = The component of the weight resisting motion = A

Therefore, the net force tending to put the dresser in motion, $F_{Net}$, is given as follows;

$F_{Net}$ = The force applied by the man, C - The frictional force provided by the carpet which is the component of the weight resisting motion, A

$F_{Net}$ = C - A = 20 N - 8 N = 12 N

$F_{Net}$ = 12 N

The resulting net force, $F_{Net}$ = 12 N.
