Determine the voltage drop from the top terminal to the bottom terminal, vab, in the right hand branch and, vcd, in the left han
1 answer:
Answer:

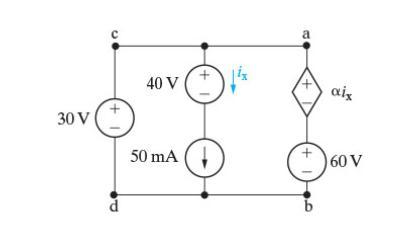

Hello your question is incomplete attached below is the missing part of the question
answer ;
voltage drop in the Vcd branch = 30 V
Voltage drop in the middle branch = 40v - 30v = 10 volts
voltage drop in AB = 60 + ( -600 * 0.05 ) = 60 - 30 = 30 volts
Explanation:
Determine voltage drop from top terminal to bottom terminal ( Vab ) in the right hand branch and Vcd in left hand branch
40v and 50mA are in series hence; Ix = 50mA
also Vcd = 30V
CD is parallel to AB hence; Vcd = Vab = 30 V
Vab = ∝*Ix + 60 v
30v = ∝ ( 50mA ) + 60
therefore ∝ = -600
voltage drop in the Vcd branch = 30 V
Voltage drop in the middle branch = 40v - 30v = 10 volts
voltage drop in AB = 60 + ( -600 * 0.05 ) = 60 - 30 = 30 volts
