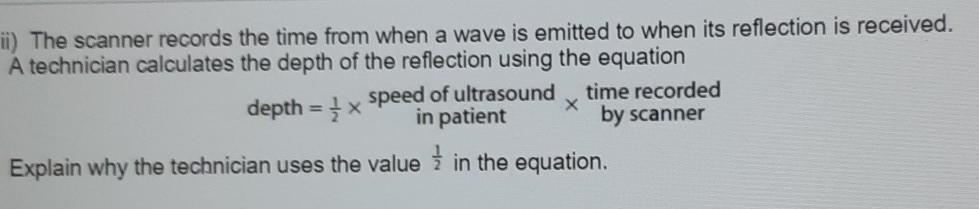

The scanner records the time from when a ultrasound wave is emitted to when its reflection is received

Physics

1 answer:

telo118 [61]3 years ago

3 0

Explanation:

The scanner records the time from when a ultrasound wave is emitted to when its reflection is received. A technician calculates the depth of the reflection using the equation as :

$\text{depth}=\dfrac{1}{2}\times \text{speed of ultrasound in patient}\times \text{time recorded by scanner}$

The distance covered by ultrasonic wave when it was emitted and gets reflected is 2d. Speed is given by :

$v=\dfrac{d}{t}$

d is distance and t is time

Here, d = 2d

So, the factor of (1/2) is used because the distance covered by the wave is 2 times when it was emitted and received.

You might be interested in

Classes are canceled due to snow, so you take advantage of the extra time to conduct some physics experiments. You fasten a larg

valentina_108 [34]

Answer:

-time it takes for the sled to come to a stop after launch of rocket = 7.244 s

-distance sled has travelled from its starting point by the time it finally comes to rest is = 234.8655 m

Explanation:

From the question, looking at the motion while accelerating, we have;

Initial velocity; u = 0 m/s

Acceleration; a = 13.5 m/s²

Time; t = 3.3 s

Let's use first equation of motion to find final velocity (v).

v = u + at

v = 0 + (13.5 × 3.3)

v = 44.55 m/s

In this forward direction, let's calculate the displacement(d1) using newton's 3rd equation of motion.

d1 = ut + ½at²

d1 = 0(3.3) + ½(13.5 × 3.3²)

d1 = 73.5075 m

Now, let's consider the motion while slowing down and our final velocity will be 0 m/s while initial velocity will now be 44.55 m/s while acceleration is 6.15 m/s².

Thus, from v = u + at, we can find the time it take for the sled to come to a stop.

Now, since it's coming to rest acceleration will be negative. Thus;

0 = 44.55 + (-6.15t)

0 = 44.55 - 6.15t

t = 44.55/6.15

t = 7.244 s

Now we want to find out how far the sled has travelled from its starting point by the time it finally comes to rest.

Thus, we'll use the equation;

v² = u² + 2as

Where s will be the second displacement which we will call d2.

Thus;

0² = 44.55² + (-2 × 6.15 × s)

0 = 1984.7025 - 12.3s

12.3s = 1984.7025

s = 1984.7025/12.3

s = 161.358

Thus, d2 = s = 161.358 m

Thus, distance sled has travelled from its starting point by the time it finally comes to rest is ;

= d1 + d2 = 73.5075 + 161.358 = 234.8655 m

4 0

4 years ago

Daisy walks across a force platform, and forces exerted by her foot during a step are recorded. The peak velocity reaction force

Len [333]

Answer:

(a). The resultant of these forces is 1216.55 N.

(b). The direction of the resultant forces is 80.53°.

Explanation:

Given that,

First force = 1200 N

Second force = 200 N

(a). We need to calculate the resultant of these forces

Using cosine law

$F=\sqrt{F_{1}^2+F_{2}^2+2F_{1}F_{2}\cos\theta}$

Put the value into the formula

$F=\sqrt{1200^2+200^2+2\times1200\times200\cos90}$

$F=\sqrt{1200^2+200^2}$

$F= 1216.55\ N$

The resultant of these forces is 1216.55 N.

(b). We need to calculate the direction of the resultant forces

Using formula of direction

$\tan\alpha=\dfrac{F_{1}}{F_{2}}$

Put the value into the formula

$\alpha=\tan^{-1}(\dfrac{1200}{200})$

$\alpha=80.53^{\circ}$

Hence, (a). The resultant of these forces is 1216.55 N.

(b). The direction of the resultant forces is 80.53°.

4 0

3 years ago

Read 2 more answers

An engine causes a car to move 10 meters with a force of 100 N. The engine produces 10,000 J of energy. What is the efficiency o

gregori [183]

Answer:

10%

Explanation:

Efficiency = work done / energy used

e = (10 m × 100 N) / (10,000 J)

e = 0.1

The efficiency is 0.1, or 10%.

4 0

4 years ago

Which of the following devices would you expect to consume the most energy for each hour that it operates?

Nat2105 [25]

B. An electric space heater

4 0

3 years ago

A short ramp and a long ramp each reach a height of 1 m. Which

Pavel [41]

Answer:

he longer ramp has more mechanical advantage for it requires less force to push up a mass while being over a longer period of time. Its called Mechanical Advantage because say you had to lift a car up 1-meter. you cannot simply pick it up, but over a long enough slope you would be able to because you can apply a small force over a longer distance
