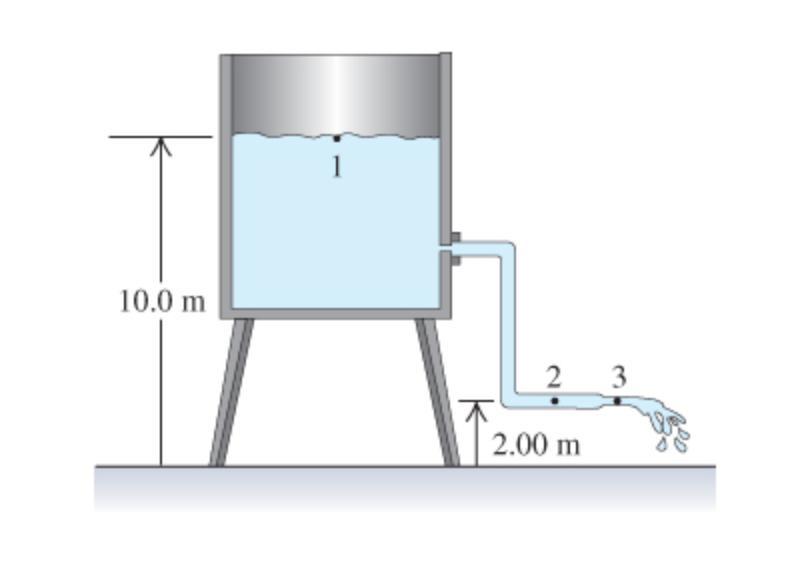

NEED A PHYSICS EXPERT TO HELP ME PLS

Physics

1 answer:

Brut [27]3 years ago

5 0

Answer:

Discharge Rate = 0.2 cubic meters per second

Explanation:

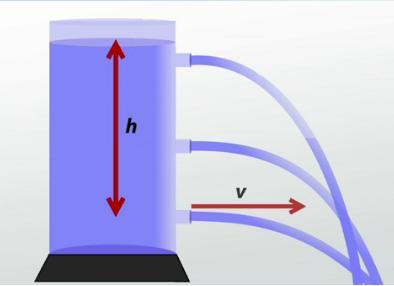

Torricelli's Law is derived from Bernoulli's equation and simply states that the speed of the efflux in a Torricelli apparatus (shown below) is directly proportional to and affected only by the height of the fluid above it.

V = √2g(10-2)

Putting value of g = 9.8 we get:

V = 12.52 m/s

Discharge rate = Q = A × V

= 1.60/100 × 12.52

= 0.2 cubic meter per second

Best Regards!

You might be interested in

A particle initially located at the origin has an acceleration of = 2.00ĵ m/s2 and an initial velocity of i = 8.00î m/s. Find (a

sergejj [24]

a. The particle has position vector

$\vec r(t)=\left(\left(8.00\dfrac{\rm m}{\rm s}\right)t\right)\,\vec\imath+\left(\dfrac12\left(2.00\dfrac{\rm m}{\mathrm s^2}\right)t^2\right)\,\vec\jmath$

$\vec r(t)=\left(8.00\dfrac{\rm m}{\rm s}\right)t\,\vec\imath+\left(1.00\dfrac{\rm m}{\mathrm s^2}\right)t^2\,\vec\jmath$

b. Its velocity vector is equal to the derivative of its position vector:

$\vec v(t)=\vec r'(t)=\left(8.00\dfrac{\rm m}{\rm s}\right)\,\vec\imath+\left(2.00\dfrac{\rm m}{\mathrm s^2}\right)t\,\vec\jmath$

c. At $t=7.00\,\mathrm s$ , the particle has position

$\vec r(7.00\,\mathrm s)=\left(8.00\dfrac{\rm m}{\rm s}\right)(7.00\,\mathrm s)\,\vec\imath+\left(1.00\dfrac{\rm m}{\mathrm s^2}\right)(7.00\,\mathrm s)^2\,\vec\jmath$

$\vec r(7.00\,\mathrm s)=\left(56.0\,\vec\imath+49.0\,\vec\jmath\right)\,\mathrm m$

That is, it's 56.0 m to the right and 49.0 m up relative to the origin, a total distance of $\|\vec r(7.00\,\mathrm s)\|=\sqrt{(56.0\,\mathrm m)^2+(49.0\,\mathrm m)^2}=74.4\,\mathrm m$ away from the origin in a direction of $\theta=\tan^{-1}\dfrac{49.0\,\mathrm m}{56.0\,\mathrm m}=41.2^\circ$ relative to the positive $x$ axis.

d. The speed of the particle at $t=7.00\,\mathrm s$ is the magnitude of the velocity at this time:

$\vec v(7.00\,\mathrm s)=\left(8.00\dfrac{\rm m}{\rm s}\right)\,\vec\imath+\left(2.00\dfrac{\rm m}{\mathrm s^2}\right)(7.00\,\mathrm s)\,\vec\jmath$

$\vec v(7.00\,\mathrm s)=\left(8.00\,\vec\imath+14.0\,\vec\jmath\right)\dfrac{\rm m}{\rm s}$

Then its speed at this time is

$\|\vec v(7.00\,\mathrm s)\|=\sqrt{\left(8.00\dfrac{\rm m}{\rm s}\right)^2+(14.0\dfrac{\rm m}{\rm s}\right)^2}=16.1\dfrac{\rm m}{\rm s}$

4 0

3 years ago

Find the distance travelled when the initial angular velocity is 3 rad/s, the final angular velocity is 25 rad/s and the time of

Llana [10]

Answer:

Please find attached pdf

Explanation:

Download pdf

5 0

3 years ago

hich answer represents a speed, not a velocity? A. 35 m/s east B. –35 m/s down C. 35 m/s D. 35 m/s south

finlep [7]

The answer is C. 35m/s because there is no direction

3 0

3 years ago

Read 2 more answers

What is your design for an efficient commercial vehicle chassis that incorporates as many commercial truck components into its s

Crank

The design that would be used to make an efficient commercial vehicle chassis that has many realistic truck components is:

Strength
Adequate bending stiffness
Maximum stress
Deflection, etc

<h3>What is a Chassis Frame?</h3>

This refers to the main vehicle structure of a car that bears all the main stress that other components are attached to.

Hence, we can see that to make a good design for an efficient commercial vehicle chassis that has many realistic truck components, we would have to consider various factors such as handling maximum stress, maximum equilateral stress, and deflection.
