natka813 [3]
3 years ago
10

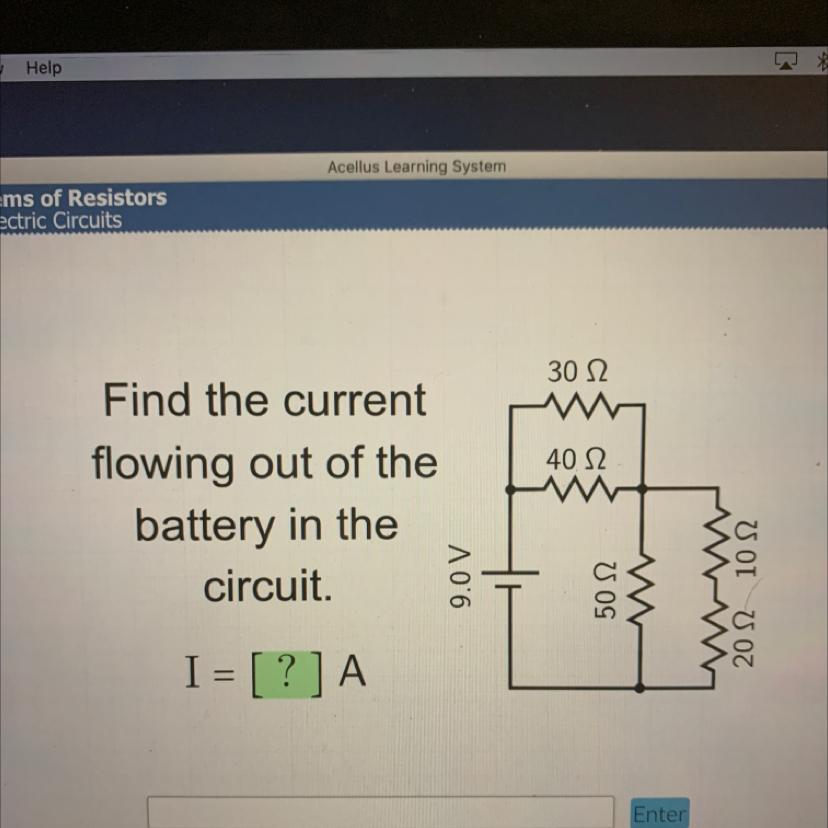

Find the current flowing out of the battery in the circuit.

Physics
1 answer:
nikitadnepr [17]3 years ago
5 0

The top ones being parallel gives 1/(1/30 + 1/40) = 120/7 ohms. The rightmost path in series gives 30 ohms, and then the parallel pair on the right is 1/(1/50 + 1/30) = 75/4 ohms. I = V/R => 9 / (75/4+120/7) \approx .25A

Please mark Brainliest if this answer helped you!

You might be interested in
An object weighs 10N on earth .what is the objects weight on a planet one tenth the earths mass and one half its radius?
earnstyle [38]
We know, weight = mass * gravity
10 = m * 9.8
m = 10/9.8 = 1.02 Kg

Now, Let, the gravity of that planet = g'
g' = m/r²   [m,r = mass & radius of that planet ]
g' = M/10 / (1/2R)²   [M, R = mass & radius of Earth ]
g' = 4M / 10R²
g' = 2/5 * M/R²
g' = 2/5 * g
g' = 2/5 * 9.8
g' = 3.92

Weight on that planet = planet's gravity * mass
W' = 3.92 * 1.02
W' = 4 N

In short, Your Answer would be 4 Newtons

Hope this helps!
3 0
4 years ago
Scientific _____ must be supported by observations and results many investigations and are not absolute
n200080 [17]
The correct answer you're looking for would be Theories.

7 0
3 years ago
Suppose you are in an elevator. As the elevator starts upward, its speed will increase. During this time when the elevator is mo
kkurt [141]

Answer:increased

Explanation:

It is given that elevator speed is increasing while moving upward i.e.its acceleration is increasing .

This causes the apparent to be increased if measured using weighing machine.

considering upward direction to be positive

N-mg=ma

N=m(g+a)

where N=Normal reaction=Apparent weight

a=acceleration of Elevator

thus you feel as if your weight is increased.

6 0
4 years ago
Is it true weather refers to the conditions of the atmosphere at a given time and place
damaskus [11]

yes that is true because climate is over a period of time


8 0
4 years ago
I need the right answer ASAP NO LINKS!!!
Jet001 [13]

Answer:

models are only used by scientists

5 0
3 years ago
