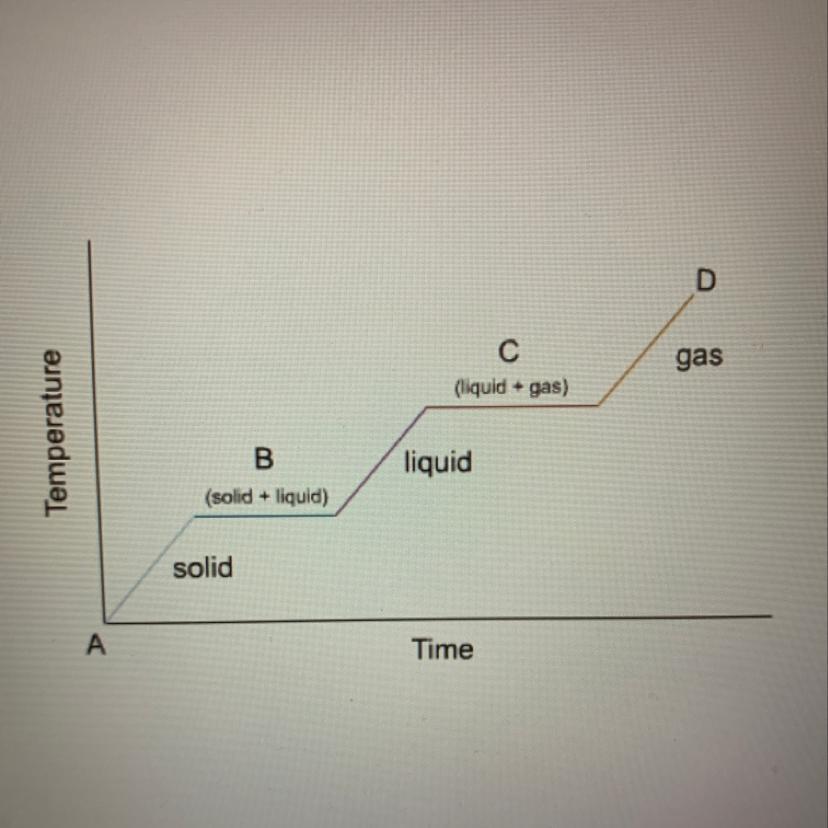

In the diagram, the liquid is vaporizing at which point?

Physics

1 answer:

makvit [3.9K]3 years ago

3 0

Answer:

The liquid is vaprizing at point C

You might be interested in

Please help me fill out the chart.??

LekaFEV [45]

Answer:unbalanced: have direction,Change an objects motion, causes object to accelerate

Balanced:Do not change an objects motion, Net forces equal sum of all forces on object, and Does not equal 0 N

Explanation: Thats all I know Hoped I helped sum

5 0

4 years ago

Why can't fossils form in igneous rocks Magma flows too quickly for it to settle in The extreme heat destroys all of the remains

AleksandrR [38]

Answer:

you are right

Explanation:

7 0

3 years ago

Read 2 more answers

Carbon is allowed to diffuse through a steel plate 9.7-mm thick. The concentrations of carbon at the two faces are 0.664 and 0.3

cupoosta [38]

Answer:

844°C

Explanation:

The problem can be easily solve by using Fick's law and the Diffusivity or diffusion coefficient.

We know that Fick's law is given by,

$J = - D \frac{\Delta c}{\Delta x}$

Where $\frac{\Delta c}{\Delta x}$ is the concentration of gradient

D is the diffusivity coefficient

and J is the flux of atoms.

In the other hand we have, that

$D= D_0 e^{\frac{E_d}{RT}}$

Where $D_0$ is the proportionality constant,

R is the gas constant, T the temperature and $E_d$ is the activation energy.

Replacing the value of diffusivity coefficient in Fick's law we have,

$J = -D_0 ^{\frac{E_d}{RT}}\frac{\Delta c}{\Delta x}$

Rearrange the equation to get the value of temperature,

$T=\frac{Ed}{Rln(\frac{J\Delta x}{D_0 \Delta c})}$

We have all the values in our equation.

$\Delta c = 0.664-0.339 = 0.325 C. cm^{-1}$

$\Delta x = 9.7*10^{-3}m$

$E_d = 82000J$

$D_0 = 6.5*10^{-7}m^2/s$

$J = 3.2*10^{-9}m^2/s$

$R= 8.31Jmol^{-1}K$

Substituting,

$T=\frac{Ed}{Rln(\frac{J\Delta x}{D_0 \Delta c})}$

$T=-\frac{-82000}{(8.31)ln(\frac{3.2*10^{-9}(9.7*10^{-3})}{6.5*10^{-7} (0.325)})}$

$T=1118.07K=844\°C$

4 0

4 years ago

How death rate helps in changing population

lapo4ka [179]

Both the birth and death rate are expressed per 1000 of the population.

6 0

3 years ago

NemiM [27]

Search Results
Featured snippet from the web
Work is the force on the object as it changes a distance. Interestingly, as work is done on an object, potential energy can be stored in that object. For example, if you carry a load up the stairs. Now that load will have potential energy that can be transformed into kinetic energy and so on

3 0
