Question

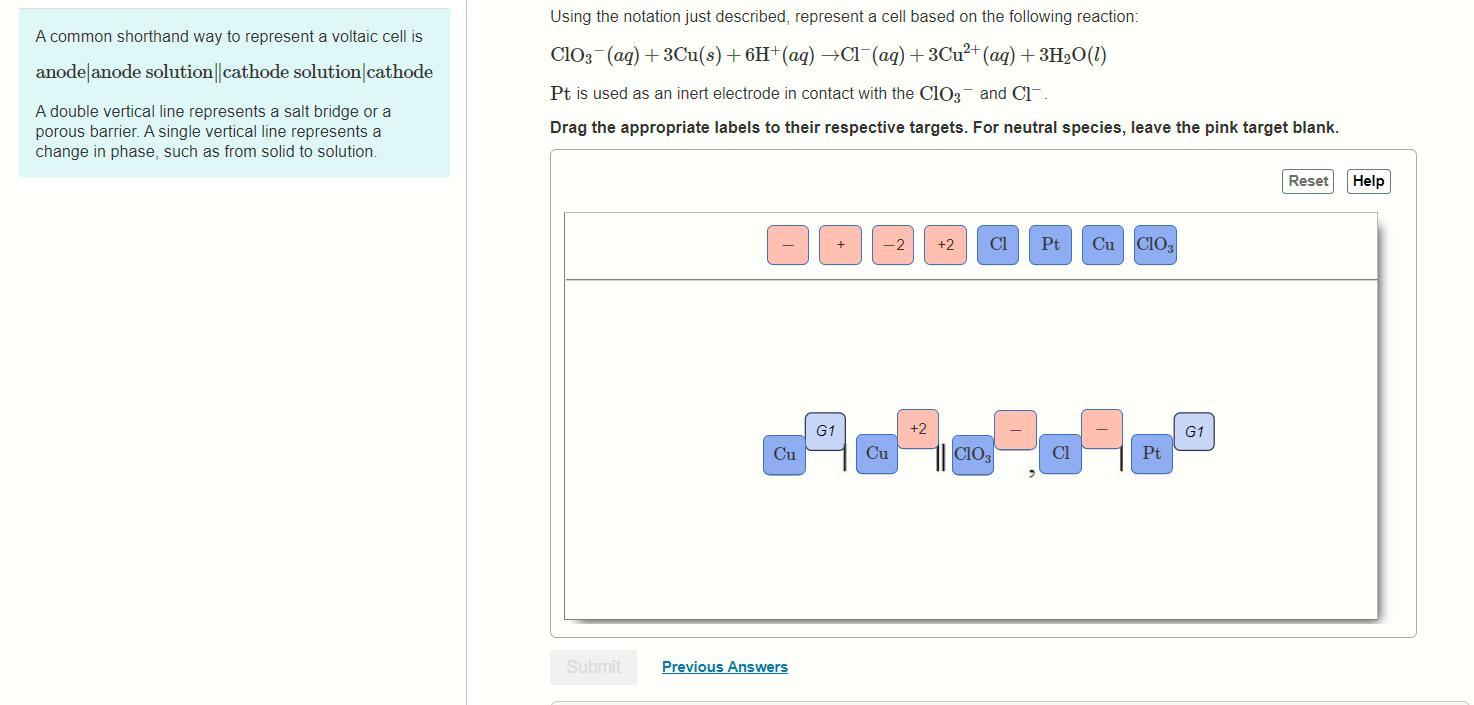

Using the notation just described, represent a cell based on the following reaction:

Answer 1

The cell notation of the redox reaction between Cu and ClO₃⁻ is:

• Cu/Cu²⁺//ClO₃⁻//Cl⁻/Pt

What is a voltaic cell?

A voltaic cell or electrochemical cell is a device which produces electricity from chemical reactions occuring within the cell.

The reactions occuring in a voltaic cell are redox reactions.

Oxidation occurs at the anode while reduction occurs at the cathode.

In the given reaction between Cu and ClO₃⁻ as shown below:

• ClO₃⁻ (aq) + 3 Cu (s) + 6H⁺ (aq) → Cl⁻ (aq) + 3 Cu²⁺ (aq) + 3 H₂O (l)

Cu is oxidized as follows: 3 Cu (s) → 3 Cu²⁺
ClO₃⁻ is reduced as follows: ClO₃⁻ (aq) → Cl⁻ (aq)

The voltaic cell notation is as follows where Pt is used as an inert electrode in contact with the ClO₃⁻ and Cl⁻:

• Cu/Cu²⁺//ClO₃⁻//Cl⁻/Pt

Therefore, the cell notation of the redox reaction between Cu and ClO₃⁻ shows that Cu is oxidized while ClO₃⁻ is reduced.
