Anika [276]
4 years ago
14

Solenoid 2 has twice the diameter, twice the length, and twice as many turns as solenoid 1. How does the field B2 at the center

of solenoid 2 compare to B1 at the center of solenoid 1?

Physics
1 answer:
klemol [59]4 years ago
4 0

Complete Question

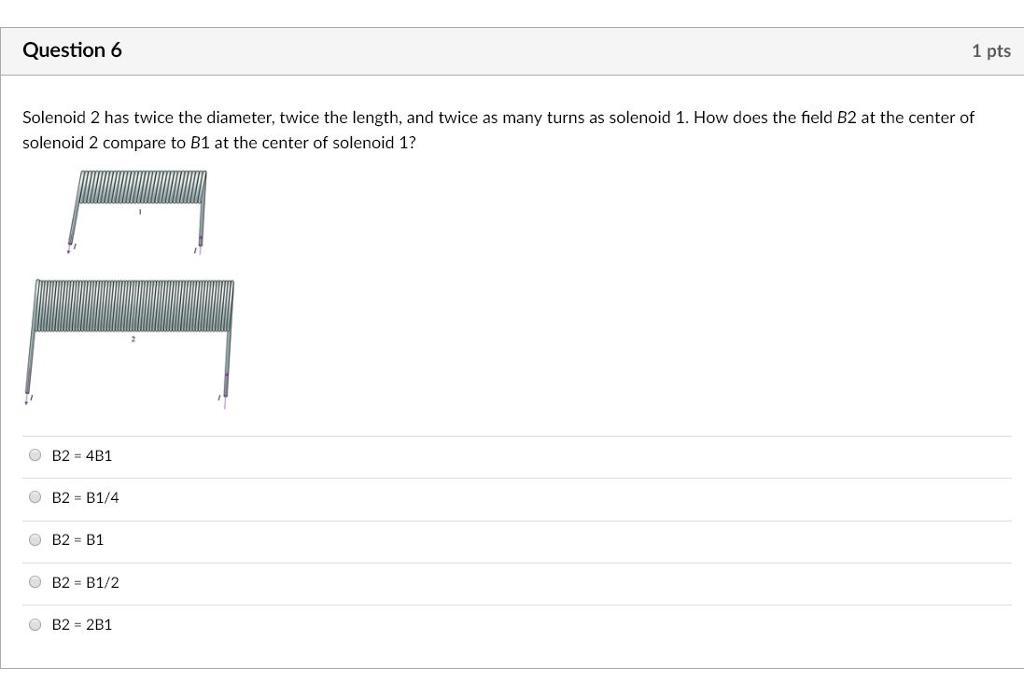

The complete question is shown on the first uploaded image

Answer:

The correct option is  option 3

Explanation:

From the question we are told that

   The diameter of solenoid 1 is  d_1

   The length of solenoid 1 is   L_1

    The  number of turns of solenoid is  N_1

   The diameter of solenoid 2 is  d_2 = 2d_1

   The length of solenoid 2 is   L_2 = 2L_1

    The  number of turns of solenoid  2 is    N_2 = 2 N_1

Generally the magnetic in a solenoid is mathematically represented as

     B  =  \frac{\mu_o *  N  *  I }{L}

From this equation we see that

     B  \ \alpha \  \frac{N}{L}

     B   =  C   \frac{N}{L}

Here C stands for constant

=>   C =  \frac{B *  \frac{L}{N}

=>    \frac{B_1 *  \frac{L_1}{N_1}   = \frac{B_2 *  \frac{L_2}{N_2}

=>  \frac{B_1}{B_2 }  =  \frac{N_1 L _2}{ N_2L_1}

=>   \frac{B_1}{B_2 }  =  \frac{N_1 * (2 L_1)}{ (2 N_2)L_1}

=>   \frac{B_1}{B_2 }  =  1

=>   B_2 = B_1
