The drawing of the wave in the slinky shows the node and antinode
in the form of a standing wave pattern.
<h3>The correct responses;</h3>
- b) Please find attached the drawing of the wave motion in the slinky
<h3>Method used to arrive at the response above:</h3><h3>Given parameters;</h3>
The speed of the wave pulse through the slinky, v = 18 m/s
The frequency with which the student vibrates the slinky, f = 4.5 Hz
Number of nodes in the slinky, n = 4 nodes
<h3>a) Wavelength of the slinky λ:</h3>
The wavelength of the slinky, λ, is given as follows;

Therefore;

- The wavelength of the wave formed on the slinky, λ =<u> 4.0 meters</u>

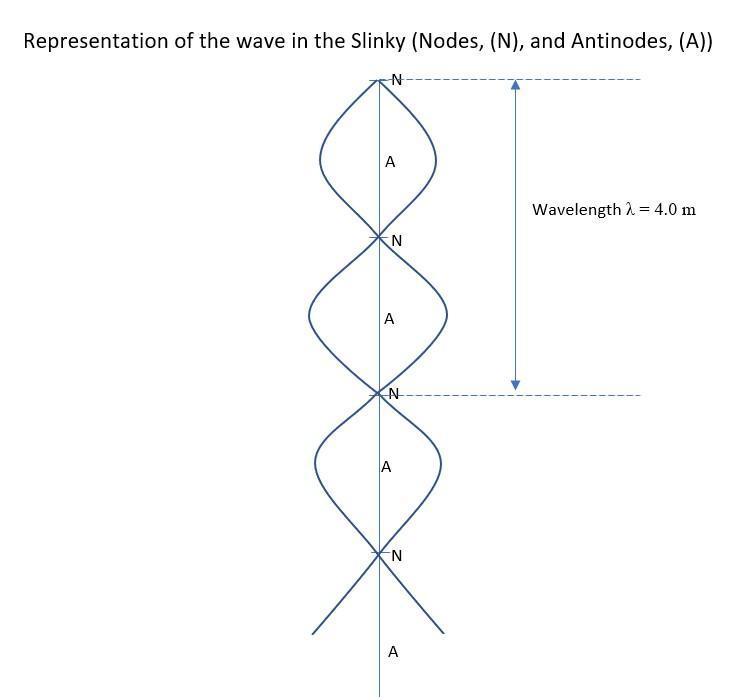

<h3>b) Drawing of a well labelled diagram of the situation:</h3>
The attached drawing of the situation shows the wavelength of the
wave equal to the distance between three consecutive nodes, <em>N</em>
The number of loops = 3 complete loops + Half of a loop = 3.5 loops
<h3>c) To calculate for the height of the stairwell:</h3>
The length of the wavelength, λ = Length of two complete loops
Height of the stairwell = 3.5 loops
2 loops = λ
Therefore;

Which gives;
- Height of the stairwell, h = 1.75 × 4.0 m = <u>7.0 m</u>
