3 years ago

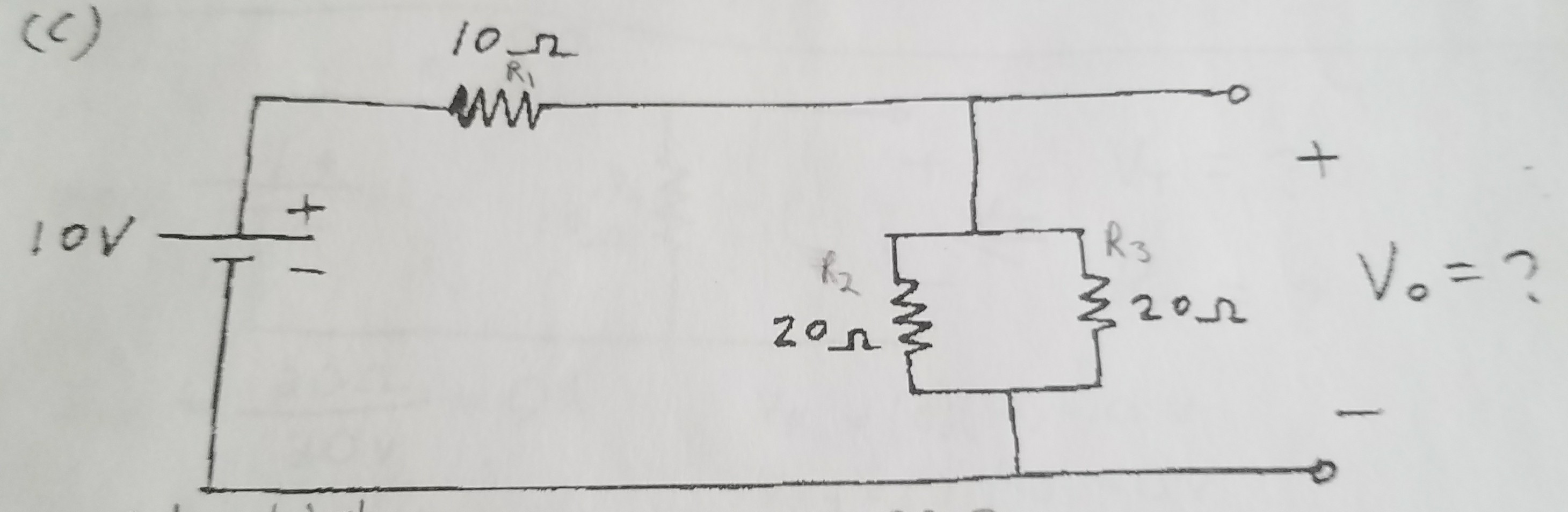

Find Vo= between the two ends of the circuit on the right.

Physics

1 answer:

9966 [12]3 years ago

3 0

First calculate the parallel network as a single resistor and then use a voltage divider between the two resistors.

You might be interested in

The amount of friction divided by the weight of an object forms a unit less number called the

Romashka [77]

Answer:

Coefficient of friction.

Explanation:

The amount of friction divided by the weight of an object is equal to the coefficient of friction. It is a dimensional less number. It can be given by :

$F=\mu N$

N is normal force.

$\mu$ = coefficient of friction

$\mu=\dfrac{F}{N}$

3 0

3 years ago

A jet plane can travel at a speed of 600 km/h. How far will the jet travel if it flies at full speed for 2 hours?

ololo11 [35]

Answer:

that jet will fly 1200 km in 2 hours

4 0

3 years ago

An AC generator has 80 rectangular loops on its armature. Each loop is 12 cm long and 8 cm wide. The armature rotates at 1200 rp

Sauron [17]

Answer: 28.96 V

Explanation:

Given

No of loops on the armature, N = 80

Length of the loop, l = 12 cm = 0.12 m

Width of the loop, b = 8 cm = 0.08 m

Speed of the armature, 1200 rpm

Magnetic field of the loop, B = 0.30 T

To solve this, we use the formula

V(max) = NBAω

Where,

A = area of loop

A = l*b = 0.12 * 0.08

A = 0.0096 m²

ω = 1200 rpm = 1200 * 2π/60 rad/s

ω = (1200 * 2 * 3.142) / 60

ω = 7540.8 / 60

ω = 125.68 rad/s

Substituting the values into the formula

V(max) = NBAω

V(max) = 80 * 0.30 * 0.0096 * 125.68

V(max) = 80 * 0.362

V(max) = 28.96 V

Therefore, the maximum output voltage of the generator would be 28.96 V

5 0

3 years ago

if you look inside the bowl of a shiny metal spoon, your image is upside down. if you look at the outside of the bowl, your imag

vladimir2022 [97]

Because one side of the spoon is convex and the other side is concave, the spoon’s different sides reflect differently.

6 0

3 years ago

How to understand that an inductor behaves like short circuit and capacitor like an open circuit in steady state in a network?

garik1379 [7]

It depends on the steady-state frequency. At zero frequency an inductor behaves like an open circuit. As the frequency increases, the inductor acts more like an open circuit and a capacitator acts more like a short circuit

8 0

3 years ago
