xz_007 [3.2K]
3 years ago
6

For the question that follow, consider the BEST Lewis structures of the following oxyanions:

Chemistry
1 answer:
Amanda [17]3 years ago
8 0

Answer:

(i) NO₂⁻

(ii) NO₃⁻

(iv) SO₄²⁻

(v) BrO₃⁻

Explanation:

The conjugation of π electrons in the selected oxyanions create resonance structures wich lead to equal X-O bond lenghts. The resulting bond lenght will be an average of single and double bond lenghts in the ion. Spectroscopic analysis can be used to prove this assumption.

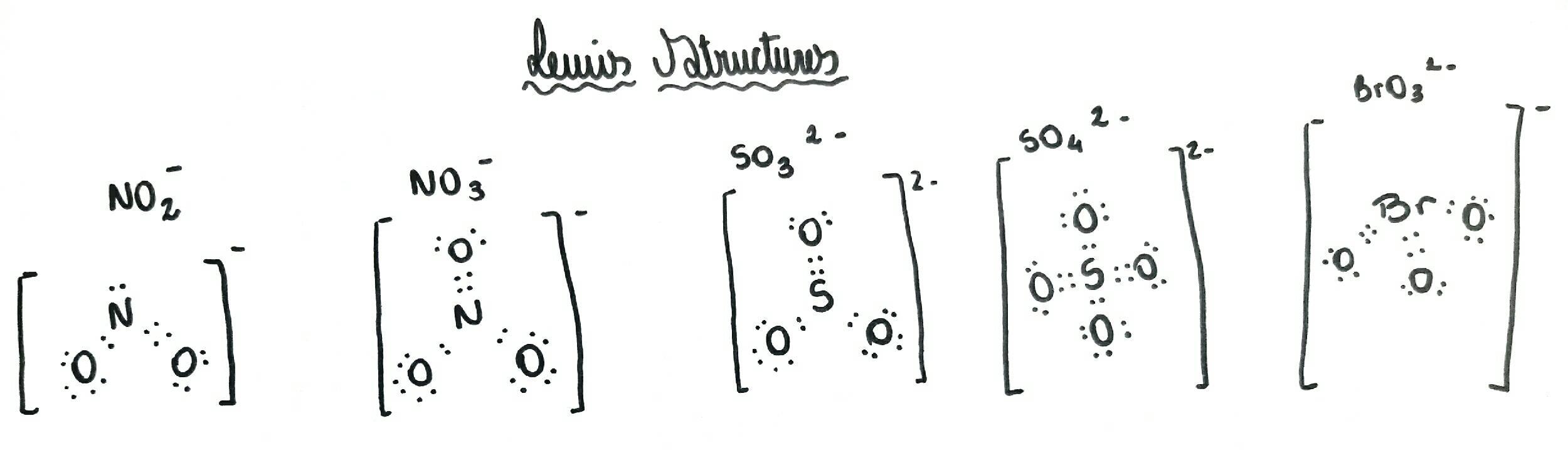

The figure attached shows one lewis structure for each oxyanion.

You might be interested in
Suppose you have a crystal composed of elements X and Y in which the radius ratio is approximately ½, so that the sodium chlorid
WINSTONCH [101]

Answer:

XY would have a higher melting point than NaCl.

Explanation:

The electrostatic force (F) between ions in an ionic lattice can be estimated using Coulomb's Law.

F=k.\frac{q_{1}.q_{2}}{r^{2} }

where,

k is the Coulomb's constant

q₁ and q₂ are the charges of the ions

r is the distance between the ions

X⁺⁺ and Y⁻⁻ are doubly charged with respect to Na⁺ and Cl⁻ so the force between them is 4 times the force between Na⁺ and Cl⁻. Since the force is stronger, it would require more energy to break it to take it to the liquid state, so a higher melting point is expected.

7 0
3 years ago
Using the following thermochemical data, what is the change in enthalpy for the following reaction: 3H2(g) + 2C(s) + ½O2(g) → C2
sweet [91]
It would be -277.6 KJ/mol
7 0
3 years ago
Read 2 more answers
Is the process of dissolving sodium hydroxide in water an chemical reaction? explain ​
ICE Princess25 [194]

Answer:

Yes, it's an exothermic reaction, which means that energy is being released, thus it is a chemical reaction.

Explanation:

8 0
4 years ago
A 800 kg car zooms away from a red light with an acceleration of 7.6 m/s2. What is the
aev [14]

Answer:

6080 N

Explanation:

From the question given above, the following data were obtained:

Mass (m) of car = 800 Kg

Acceleration (a) of car = 7.6 m/s²

Force (F) =?

The force experienced by the car can be obtained as illustrated below:

Force (F) = mass (m) × acceleration (a)

F = m × a

F = 800 × 7.6

F = 6080 N

Thus, the experience a force of 6080 N

6 0
3 years ago
There are two atoms: A and B. Atom A has 7 electrons and atom B has 13 electrons. which of the following is TRUE
Inessa [10]

The statement which is true about <em>Atom A</em> and <em>Atom B</em> is; Choice B: <em>Atom B will give up electrons to form bonds.</em>

According to the question;

For Atom A:

  • It has 7 electrons

  • the electron configuration is; <em>1s²2s²2p³</em>

  • Therefore, it has 5 valence electrons.

For atom B:

  • It has 13 electrons

  • the electron configuration is; <em>1s²2s²2p⁶3s²3p¹</em>

  • Therefore, it has 3 valence electrons.

Since, electrons need 8 electrons to assume a full octet;

Consequently, Atom B will give up electrons to become stable.

Read more:

brainly.com/question/21400937

4 0
2 years ago
