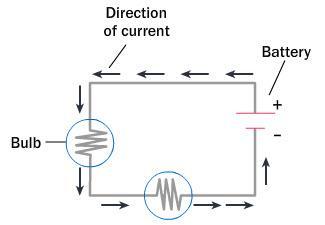

PLEASE HELP!!!! Look at the circuit diagram. What type of circuit is shown? A. Closed series circuit B. Closed parallel circuit

C. Open parallel circuit D. Open series circuit

Physics
1 answer:
Paul [167]4 years ago
7 0

Answer:

A. Closed Series Circuit

Explanation:

Let's dissect the image. Just a heads up, I'm going to use a few of street/road analogies here. Think of the current as cars/people, the circuit path as streets/roads, and the resistors(in the bulbs) are like speed bumps.

  1. We have arrows dictating the direction of the current caused by the battery. If the circuit were open, it'd be as though we had a gap in a road so that no cars/people could go through. But <u>because we have a current, that indicates that the circuit is closed</u>.
  2. Next there's the question of the whether the resistors are in series or parallel. In simple cases like this, ask yourself if the resistors are on the same "street" or not. By that I mean, can you follow one line of current without breaking off to a different path? Here, it looks like the two resistors/bulbs are in series because they are on the same path.

So what you're looking at is a closed series circuit.

You might be interested in
PLEASE HELP What is the average acceleration of the passengers on this ride?
adoni [48]

The passengers are traveling at 25.1 m/s from 0 m/s in 2.6 seconds, this makes the average acceleration 9.654 m/s^2

3 0
3 years ago
Suppose that the electric potential outside a living cell is higher than that inside the cell by 0.063 V. How much work is done
Varvara68 [4.7K]

Answer:

W=1.008\times 10^{-20}\ J

Explanation:

Given that

Potential difference ,ΔV= 0.063 V

Charge q

q=1.6\times 10^{-19}\ C

The work done by electric force given as

W = ΔV . q

W=0.063\times 1.6\times 10^{-19}\ J

W=1.008\times 10^{-20}\ J

5 0
3 years ago
Is Vaseline flammable?
FinnZ [79.3K]
When its still the form of jelly, it is flammable, but it does not go everywhere or it  doesn't evaporate.
5 0
3 years ago
In each of the given pairs, choose which element will have the bigger atom. Give reasons for your choice. (a) Mg (atomic number
Dafna1 [17]

Answer:

Mg (atomic number 12)

K (atomic number 19)

Explanation:

The size of an atom is estimated in terms of its atomic radius.

The atomic radius is taken as half of the inter-nuclear distance between two covalently bonded atoms of non-metallic elements or half of the distance (d) between two nuclei in the solid - state of metals.

  • Across a period, atomic radii decrease progressively from left to right.
  • This is due to the progressive increase in the nuclear charge without increase in the number of electronic shells.
  • Down a group, atomic radii increase progressively due to the successive shells of electrons being added which have been compensated for by the increase in nuclear charge.

Cl is further right of Mg in the third period

K is below Na in the first group

3 0
3 years ago
A 100 V battery is connected across a
Sergio039 [100]

1 mA = 0.001 A

Therefore, 5 mA = 0.001 * 5

=0.005 A

Resistance = voltage / current

= 100 / 0.005

= 20000 ohms

Current = voltage / resistance

= 25 / 20000

= 0.00125 A (or) 1.25 mA

5 0
3 years ago
