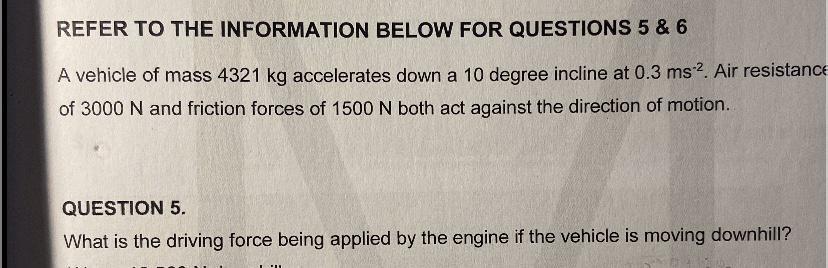

Please help and show working please

Physics
1 answer:
White raven [17]4 years ago
6 0

We have to build a schema of all the forces applied to the car:

We have air resistance and friction, both against the direction of motion.

We have gravity (due to the downhill angle) and motor force, acting in the direction of motion.

So, we can set up the equation

F=ma

where F is the sum of all forces:

F_m+F_g-F_f-F_{ar}=ma

Where F_m is the motor force, F_g is the gravity force, F_f is the friction force, and F_{ar} is the air resistance force (note that the signs depend on whether the force is along or against the direction of motion.

We can solve for F_m as follows:

F_m = ma-F_g+F_f+F_{ar}

We know everything, except for F_g. The formula for the force parallel to the direction of motion in a sloped plane with angle \theta is

F_\parallel = F\sin(\theta)

So, we can substitute:

F_m = 4321\cdot 0.3-4321\sin(10)+1500+3000\approx 5045.966 \approx 5046

You might be interested in
The resultant force acting on an object of mass 5.0kg varies with time as shown. the object is initially at rest.
il63 [147K]
<span>particle varies with time as shown in the diagram. ... resultant has a magnitude equal to 8.0. .... A constant force F is applied to a body of mass m that initially is headed east at velocity .... If the resultant force acting on a 2.0-kg object is equal to ..... A ball of mass mB is released from rest and acquires velocity of magnitude vB ...</span><span>
</span>
8 0
3 years ago
What is the force acting on an object of mass 10 kg moving with a uinform velocity of 10 m/s ?
Rus_ich [418]

If its uniform there is no force.

C) 0 N

8 0
3 years ago
Which of the following can refer to the form of exercise that uses free weights, weight machines, resistance bands, or the weigh
kari74 [83]

Answer:

option C...

resistance training is the correct answer

7 0
2 years ago
A copper wire and a tungsten wire of the same length have the same resistance. What is the ratio of the diameter of the copper w
spayn [35]

Answer:

Therefore the ratio of diameter of the copper to that of the tungsten is

\sqrt{3} :\sqrt{10}

Explanation:

Resistance: Resistance is defined to the ratio of voltage to the electricity.

The resistance of a wire is

  1. directly proportional to its length i.eR\propto l
  2. inversely proportional to its cross section area i.eR\propto \frac{1}{A}

Therefore

R=\rho\frac{l}{A}

ρ is the resistivity.

The unit of resistance is ohm (Ω).

The resistivity of copper(ρ₁) is 1.68×10⁻⁸ ohm-m

The resistivity of tungsten(ρ₂) is 5.6×10⁻⁸ ohm-m

For copper:

A=\pi r_1^2 =\pi (\frac{d_1}{2} )^2

R_1=\rho_1\frac{l_1}{\pi(\frac{d_1}{2})^2 }

\Rightarrow (\frac{d_1}{2})^2=\rho_1\frac{l_1}{\pi R_1 }......(1)

Again for tungsten:

R_2=\rho_2\frac{l_2}{\pi(\frac{d_2}{2})^2 }

\Rightarrow (\frac{d_2}{2})^2=\rho_2\frac{l_2}{\pi R_2 }........(2)

Given that R_1=R_2   and    l_1=l_2

Dividing the equation (1) and (2)

\Rightarrow\frac{ (\frac{d_1}{2})^2}{ (\frac{d_2}{2})^2}=\frac{\rho_1\frac{l_1}{\pi R_1 }}{\rho_2\frac{l_2}{\pi R_2 }}

\Rightarrow( \frac{d_1}{d_2} )^2=\frac{1.68\times 10^{-8}}{5.6\times 10^{-8}}   [since R_1=R_2   and    l_1=l_2]

\Rightarrow( \frac{d_1}{d_2} )=\sqrt{\frac{1.68\times 10^{-8}}{5.6\times 10^{-8}}}

\Rightarrow( \frac{d_1}{d_2} )=\sqrt{\frac{3}{10}}

\Rightarrow d_1:d_2=\sqrt{3} :\sqrt{10}

Therefore the ratio of diameter of the copper to that of the tungsten is

\sqrt{3} :\sqrt{10}

8 0
4 years ago
__________ is the ability to model the components of a system, to connect the inputs and outputs among those components into a s
nirvana33 [79]

Answer:

Systems Thinking

Explanation:

Systems thinking is an outlook to integration that believes that the components of any system will function in a different manner when they are made to function separately from the other components of the system or are separated from the environment of the system.

It is therefore, the ability for the modelling of the system's component, to make the components connection to the input/output in order to reflect the dynamics and built-up of a system.

8 0
3 years ago
