A circular coil has a 8.79 cm radius and consists of 42.0 closely wound turns of wire. An externally produced magnetic field of

magnitude 3.35 mT is perpendicular to the coil. (a) If no current is in the coil, what magnetic flux links its turns

1 answer:

OverLord2011 [107]3 years ago

8 0

Answer: The magnetic flux is 3.4 × 10^-3 Wb

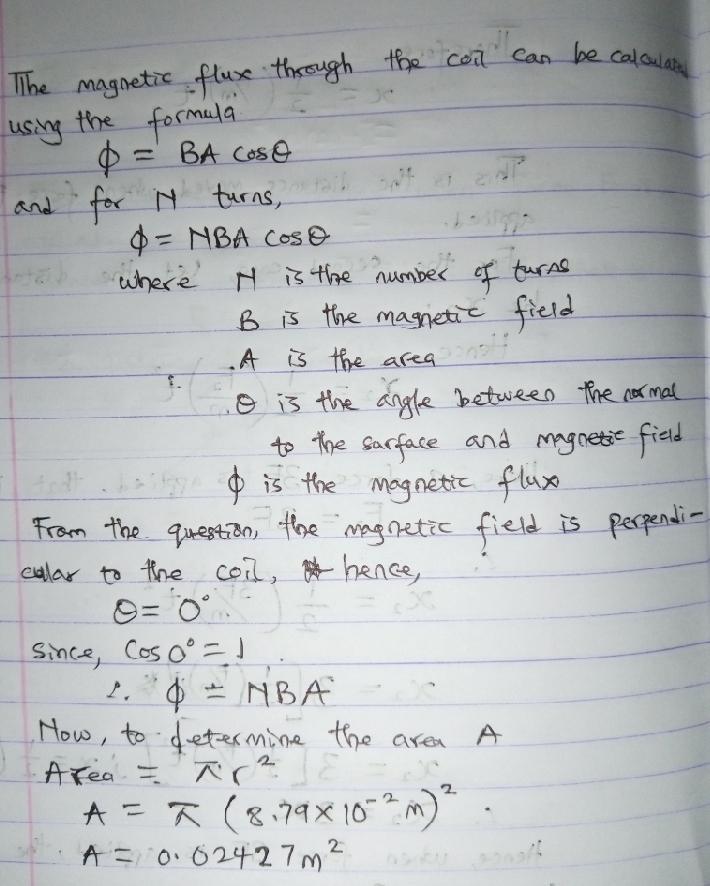

Explanation: Please see the attachments below

You might be interested in

A 6 ft tall person walks away from a 10 ft lamppost at a constant rate of 5 ft/s. What is the rate (in ft/s) that the tip of the

nalin [4]

Answer:

12.5 ft/s

Explanation:

Height of person = 6 ft

height of lamp post = 10 ft

According to the question,

dx / dt = 5 ft/s

Let the rate of tip of the shadow moves away is dy/dt.

According to the diagram

10 / y = 6 / (y - x)

10 y - 10 x = 6 y

y = 2.5 x

Differentiate both sides with respect to t.

dy / dt = 2.5 dx / dt

dy / dt = 2.5 (5) = 12.5 ft /s

8 0

4 years ago

A car accelerates in the +x direction from rest with a constant acceleration of a1 = 1.76 m/s2 for t1 = 20 s. At that point the

alex41 [277]

Answer:

(a) $v_1 = a_1t_1 = 1.76 t_1$

(b) It won't hit

(c) 110 m

Explanation:

(a) the car velocity is the initial velocity (at rest so 0) plus product of acceleration and time t1

$v_1 = v_0 + a_1t_1 = 0 +1.76t_1 = 1.76t_1$

(b) The velocity of the car before the driver begins braking is

$v_1 = 1.76*20 = 35.2m/s$

The driver brakes hard and come to rest for t2 = 5s. This means the deceleration of the driver during braking process is

$a_2 = \frac{\Delta v_2}{\Delta t_2} = \frac{v_2 - v_1}{t_2} = \frac{0 - 35.2}{5} = -7.04 m/s^2$

We can use the following equation of motion to calculate how far the car has travel since braking to stop

$s_2 = v_1t_2 + a_2t_2^2/2$

$s_2 = 35.2*5 - 7.04*5^2/2 = 88 m$

Also the distance from start to where the driver starts braking is

$s_1 = a_1t_1^2/2 = 1.76*20^2/2 = 352$

So the total distance from rest to stop is 352 + 88 = 440 m < 550 m so the car won't hit the limb

(c) The distance from the limb to where the car stops is 550 - 440 = 110 m

8 0

3 years ago

Heat always transfers from substances with _____ thermal energy to substances with _______ thermal until both substances reach t

Reika [66]

Heat always transfers from substances with high thermal energy to substances with low thermal until both substances reach the maximum temperature

4 0

2 years ago

Prove that the rate of heat production in each of the two resistors connected in parallel is inversely proportional to the resis

Viktor [21]

I believe that the answer to the question provided above is that with increase in resistance provided with constant current, Power dissipated will be lessen since power loss is high. Low power dissipation has low heat production.
Hope my answer would be a great help for you.

4 0

3 years ago

How far would a spacecraft moving in a circular orbit 500 km above Pluto's surface travel during that time?

Ilia_Sergeevich [38]

Answer:

The speed of the spacecraft should be 719.35m/s

Explanation:

if the spacecraft is orbiting the planet with a circular orbit, the gravitational force must act as a centripetal force. This means:

$F_G=F_c\\\frac{GmM}{d^2}=m\frac{v^2}{d}$

In this case, the pluto's mass M is 1.3099·10^22 kg. The radius of the planet R is 1188.3Km and G is the gravitational constant. Therefore:

$\displaystyle\frac{G M}{d^2}=\frac{v^2}{d}\\v=\sqrt{\frac{GM}{d} } =\sqrt{\frac{GM}{(R + 500km)} } =719.35m/s$

7 0
